• Model NO.：GD-3536D
• Communication Port：Yes
• Dimension：520*380*310mm
• Reference Standard：ISO 2592, ASTM D92
• Other Function：Automatic, with RS232 Communication Port
• Transport Package：Wooden Case for Gd-3536D
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

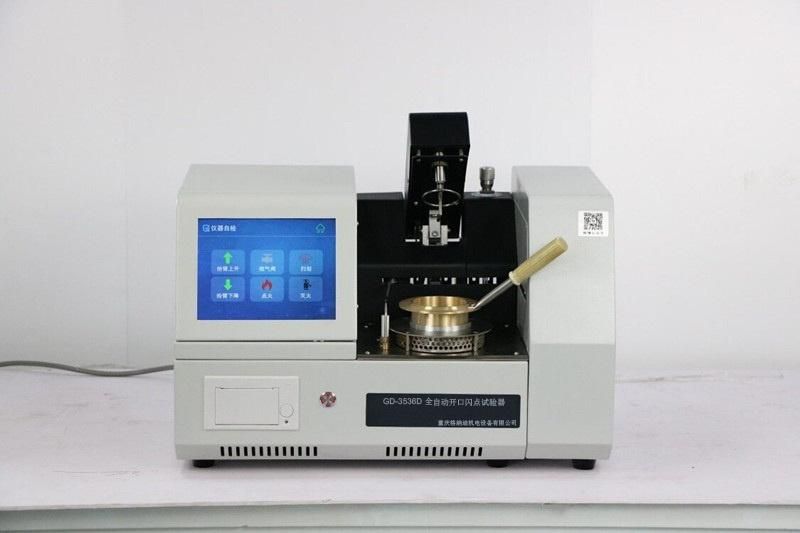

^{This Fully automatic open cup flash point tester is designed and made as per ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79ºC and below 400ºC except fuel oils.}

^{I. Main technical features}

^{1. It adopts an 8-inch IPS high-definition capacitive screen. Using 32-bit ARM processor and high-precision AD chip, the test data and parameters are recorded in real time and displayed by curve.}

^{2. Automatic measurement of atmospheric pressure, automatic correction of flash point value.}

^{3. Equipped with Bluetooth interface.The user can query test data anytime.}

^{4. Electronic ignition, gas flame..}

^{5. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.}



^{II. Main technical specifications}

^{1. Power supply: AC(220±5%)V, 50Hz}

^{2.Total power consumption:<=700W}

^{3. Flash point determination: Range:Ambient to 400ºC;Accuracy:0.1ºC}

^{4. Heating rate: (1)Initial heating:(14~17)ºC/min}

               ^{(2)It is (5-6)ºC/ min after reaching the preset flash point 20ºC}

^{5. Igniting mode:(1)Electric ignition,}

              ^{(2)Diameter of igniter:0.7mm~0.8mm}

^{6. Fire extinguishing device: (1) when the fire point appears, it can automatically extinguish the fire and return to its original position; (2) it can also manually press the key to extinguish the fire.}

^{7. Data transmission mode:Bluetooth}

^{8. Ambient temperature:(15~35)ºC}

^{Relative humidity:≤85%}

^{9.Dimension:510mm×320mm×330mm}

^{10. Weight:20kg}


GD-3536 Series ASTM D92 CLEVELAND OPEN CUP FLASH POINT TESTER:

Parameter

GD-3536

GD-3536-1

GD-3536A

GD-3536D

Temperature range

Ambient temperature~400ºC

Ambient temperature~400ºC

Ambient temperature~400ºC

Ambient temperature~400ºC

Ignition mode

Ignition once manually

Automatic

Temperature display

Thermometer

LCD

Color LCD

Color LCD

Printing

No

No

Yes

Yes

Communication port

No

No

No

Yes

Other function

Manually adjust heating rate

Automatically control temperature and display by LCD

Automatic

Automatic, with RS232 communication port

Dimension

350*290*350mm

340*320*450mm

410*360*420mm

520*380*310mm
