• Model NO.：STK-30
• Loading Method：No
• Display：Digital
• Control：Manual Control
• Weight：75kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stk-30 Plate Bearing Equipment
• Application：Used to Estimate Bearing Capacity of Road Base or
• Load Plate：300mm
• Hydraulic Jack Max. Load：5t
• Hydraulic Jack Journey：120mm
• Span：3000mm
• Electric Oil Pump Rated Pressure：70MPa
• Pressure Range：0-25MPa
• Displacement Range：0-10mm
• Use Engine Oil：Number 15 Engine Oil
• Use Temperature Environment：5c-45c
• Transport Package：Wooden Case
• Specification：0.15CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STK-30 Loading Method No Display Digital Control Manual Control Weight 75kg Power Source AC220V Oil Cylinder Position No Product Name Stk-30 Plate Bearing Equipment Application Used to Estimate Bearing Capacity of Road Base or Load Plate 300mm Hydraulic Jack Max. Load 5t Hydraulic Jack Journey 120mm Span 3000mm Electric Oil Pump Rated Pressure 70MPa Pressure Range 0-25MPa Displacement Range 0-10mm Use Engine Oil Number 15 Engine Oil Use Temperature Environment 5c-45c Transport Package Wooden Case Specification 0.15CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

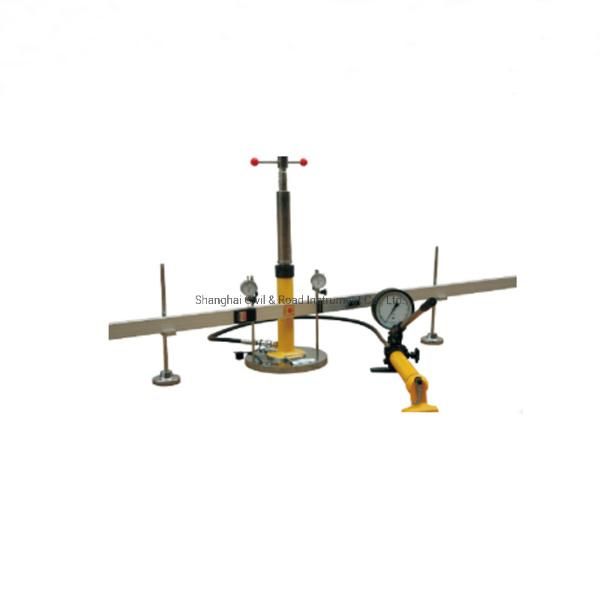

STK-30 Plate Bearing equipment
Standard: ASTM D1194, D1195, D1196 - BS 1377:9 - CNR No. 92 and No. 146 - DIN 18134
Application: Plate Bearing Testing Apparatus used to estimate bearing capacity of road base or ground base, which is filled and compacted after coarse and fine grained soil, also can used to count deformation modulus of even groundsill.
Specification:

Product Name	Ground Bearing Plate Test
Load plate	300mm
Hydraulic jack Max. load	5T
Hydraulic jack journey	120mm
Span	3000mm
Electric oil pump rated pressure	70MPa
Pressure range	0-25MPa
Displacement range	0-10mm
Use engine oil	number 15 engine oil
Use temperature environment	5ºC-45ºC
