• Model NO.：YG(B)511J-4
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Motor Drive
• Weight：0-100Kg
• Power Source：AC220V
• Number of Box：4
• Box Size：225X225X225mm
• Box Speed：60rpm
• Counting Range：1-99999
• Rubber Cork Linning：Intercharge
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. YG(B)511J-4 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Motor Drive Weight 0-100Kg Power Source AC220V Number of Box 4 Box Size 225X225X225mm Box Speed 60rpm Counting Range 1-99999 Rubber Cork Linning Intercharge Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

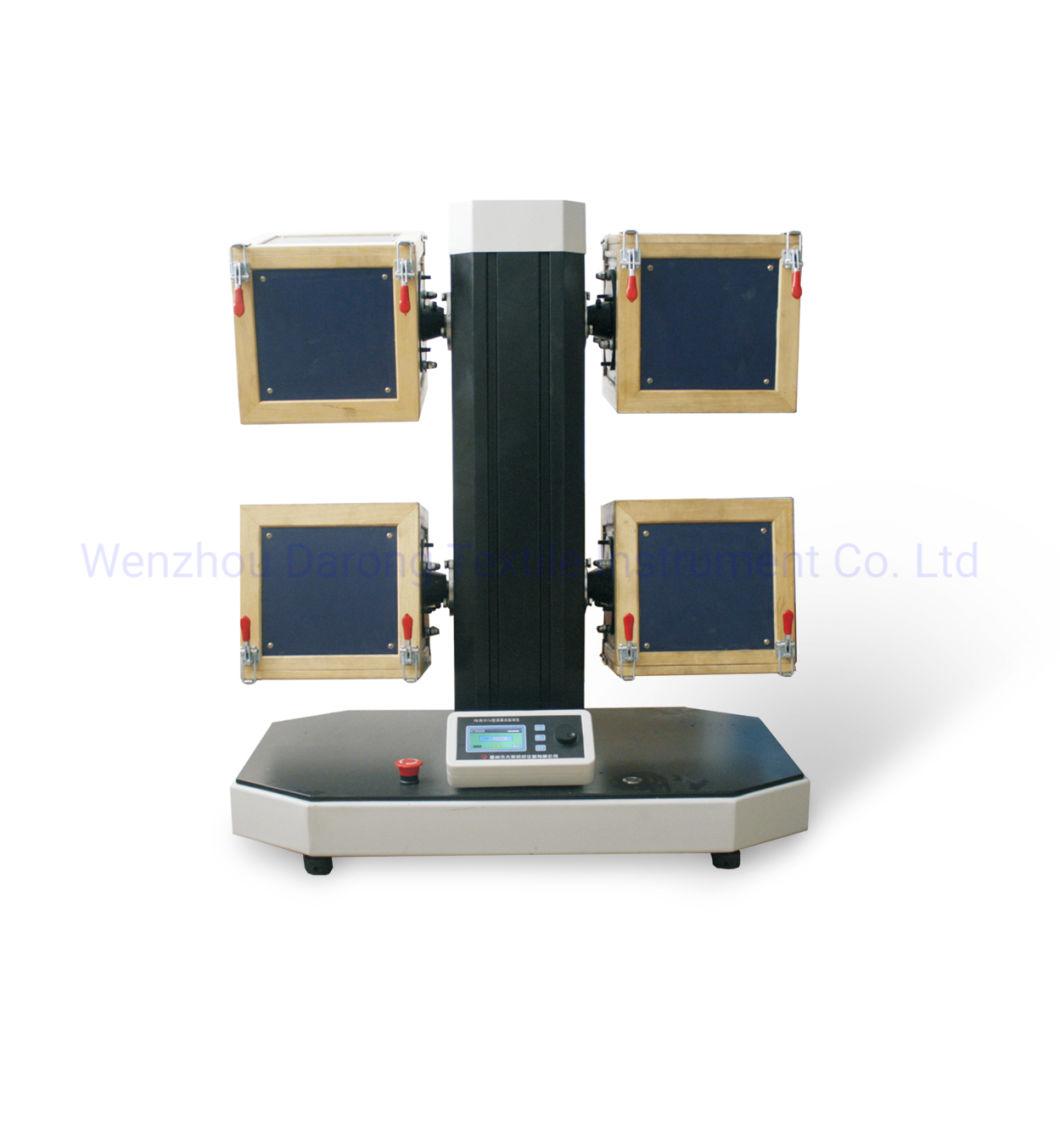

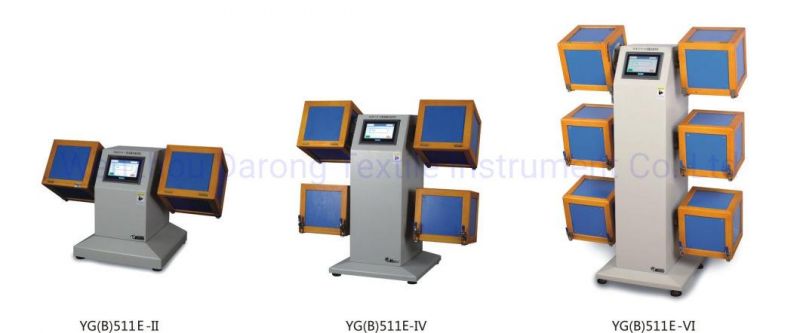

YG(B)511-J   Rolling rotatory box fabric wovens pilling snagging lab testing machine

[Scope of application]
Used for testing pilling degree of fabric (especially wool knitted fabric) without pressure

[related standards]
GB/T4802.3 ISO12945.1 BS5811 JIS L1076 IWS TM152, etc.

[ Technical features ]
1, imported rubber cork, polyurethane sample tube;
2, rubber cork lining with removable design;
3, contactless photoelectric counting, liquid crystal display;
4, can choose all kinds of specifications hook wire box, and convenient and quick replacement.
[ Technical parameters ]
1. Number of pilling boxes: 4 PCS
2, box size: (225×225×225)mm
3, box speed: (60±2)r/min(20-70r/min adjustable)
4, counting range: (1-99999) times
5, sample tube shape: shape φ (30×140)mm 4 / box
6, power supply: AC220V±10% 50Hz 90W
7, overall size: (850×490×950)mm
8, weight: 65kg

Technical parameters]

Number of box	Size of box	Speed of box
4	225x225x225mm	60rpm
