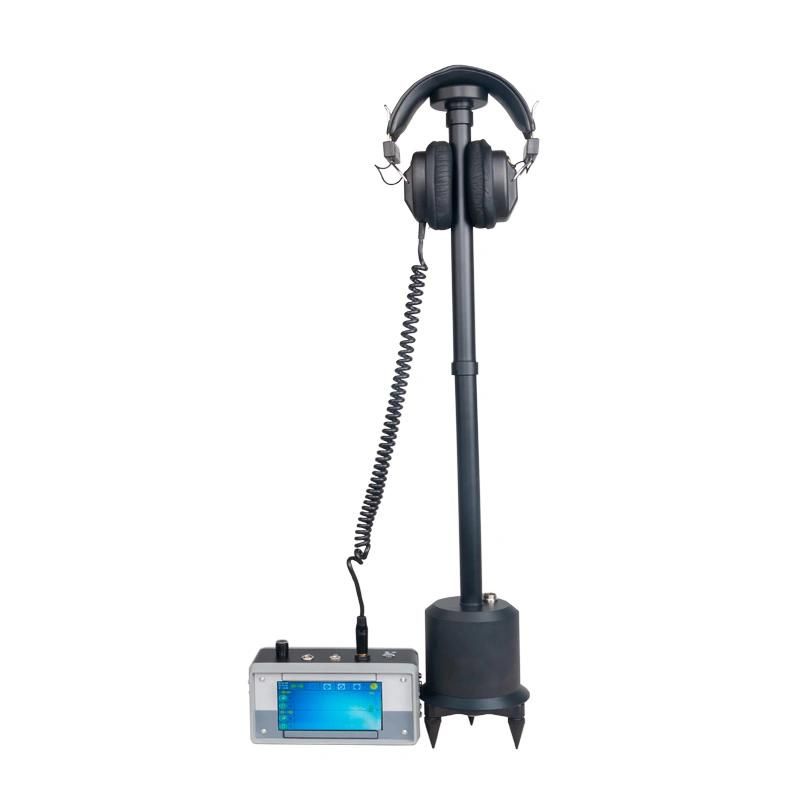

Xhdd503b Acousto-Magnetic Synchronization Underground Cable Fault Locator

Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
  • After-sales Service：Warranty Certificate
  • Warranty：Warranty Certificate
  • Transport Package：Wooden
  • Specification：420mm× 250mm× 340mm
  • Trademark：XZH TEST
  • Origin：China Xi′an

Base Info

  • Model NO.：XHDD503B
  • HS Code：854320100
  • Production Capacity：100 Pieces ,Year

Description

Receiving modeMagnetic sound synchronizationReceiving frequencyaudio frequencyMagnification50,0000 timesoutput impedance350ΩPositioning accuracy±0.2mPower dissipation

Quiescent current is less than 10mA, The working current is not more than 10mA

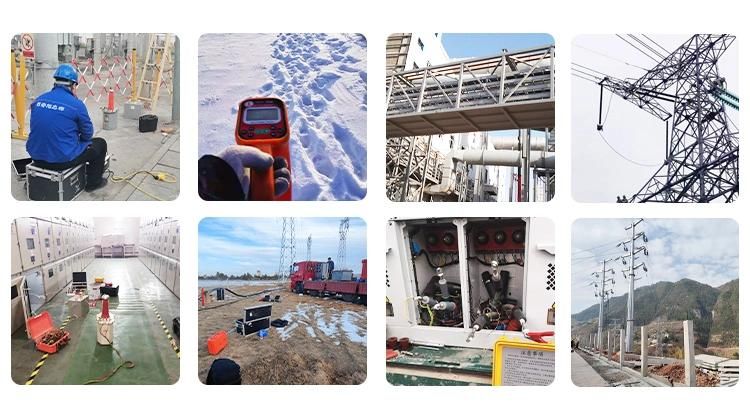

Working voltageDC9V Battery powerOperating temperature-10 ~ 55°CDimension 200*150*80mm  Weight:1.5kg (NW)  Xhdd503b Acousto-Magnetic Synchronization Underground Cable Fault LocatorApplicationXhdd503b Acousto-Magnetic Synchronization Underground Cable Fault Locator

Our team


Xhdd503b Acousto-Magnetic Synchronization Underground Cable Fault LocatorXhdd503b Acousto-Magnetic Synchronization Underground Cable Fault Locator
