Fabric Adhesive Fabric Bonding Interlining Electronic Peel Strength Testing Machine
Wenzhou Darong Textile Instrument Co. Ltd- After-sales Service:1 Year
- Warranty:1 Year
- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:<900kg
- Type:Bursting Strength Testing Machine
- Maxcapacity:500n
Base Info
- Model NO.:YG(B)090L
- Accuracy Grade:0.2%
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Power Source:AC220V
- Working Mode:Cre
- Max. Tensile Speed:50-1000mm,Min
- Max. Elongation:800mm
- Clamp Width:60mm
- Transport Package:Export Package.
- Trademark:DARONG
- Origin:China
- HS Code:9024800000
- Production Capacity:1000PCS
Description
Basic Info.
Model NO. YG(B)090L Accuracy Grade 0.2% Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Power Source AC220V Working Mode Cre Max. Tensile Speed 50-1000mm/Min Max. Elongation 800mm Clamp Width 60mm Transport Package Export Package. Trademark DARONG Origin China HS Code 9024800000 Production Capacity 1000PCSProduct Description

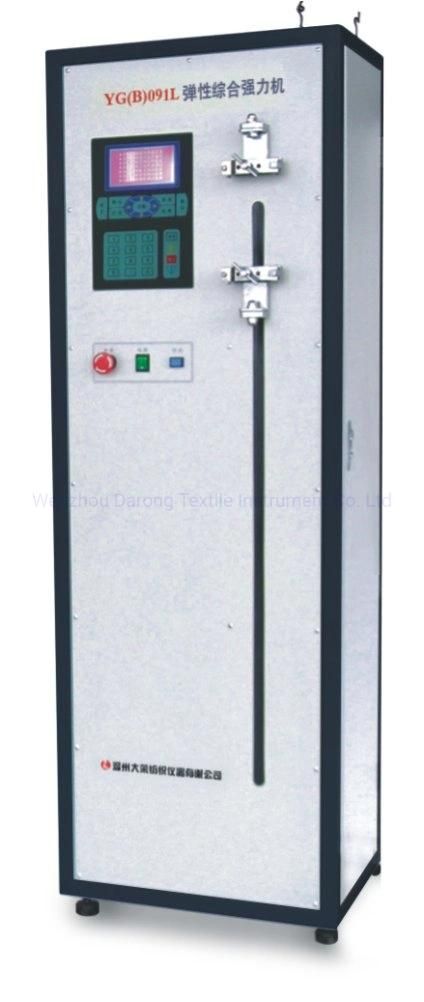

YG(B) 091L Electronic peel strength tester[Scope of application]
Used for bonding interlining, multi-layer adhesive fabric and hot-melt bonding interlining and clothing fabric, bonding interlining and fabric, coating adhesion and other peeling strength test.
[Related standards]
FZ/T80007.1 (default program) AATCC 136 FZ/T60011 FZ/T01085 FZ/T01010, etc
[ Technical parameters ]:
1, working mode: CRE principle, microcomputer control, LCD Chinese display, support online communication.
2. Sampling frequency: 1000 times/second
3. Measuring force range: 1% ~ 100% of full range
Model | -5 | -10 | -50 |
Max range | 50N | 100N | 500N |
4, the test accuracy: ≤±0.2%F·S
5, tensile speed :(50 ~ 1000)mm/min
6, the maximum elongation: 800mm
7, clamp width: 60mm
8, power supply: AC220V±10% 50Hz 200W
9, overall size :(520×400×1600)mm
10, weight: about 60kg
