• Model NO.：YTHV-720
• Rated Force：200kgf
• Controller：LCD Touch Panel Controller
• Temp. Range：-40c ~ +150c
• Material：Stainless Steel
• Customization：Inner Chamber Size, Temperature&Humidity Range
• Transport Package：Strong Plywood Carton
• Specification：Standard size
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：9031200000
• Production Capacity：20sets,Month

Model No.YTHV-336YTHV-512YTHV-720Inner chamber size W*H*D(mm)600*800700800*800*800900*800*1000Exterior chamber size W*H*D(mm)1740*1900*11201940*1900*12202040*1900*1420 Temperature range   0°C -20°C -40°C~150°CHumidity range 20%RH~98%RHFrequency range 3~2000HzMax.displacement  25mmRated force 200kgfControllerLCD touch panel controller+ Sine wave control systemPower supply   AC3  380V 60/50HzCustomizationCustomization of inner chamber size, tempreture&humidity range,ect.

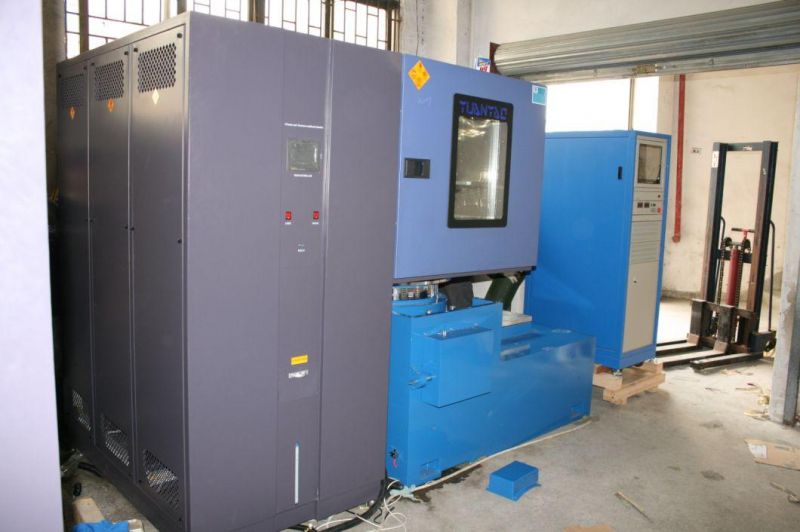

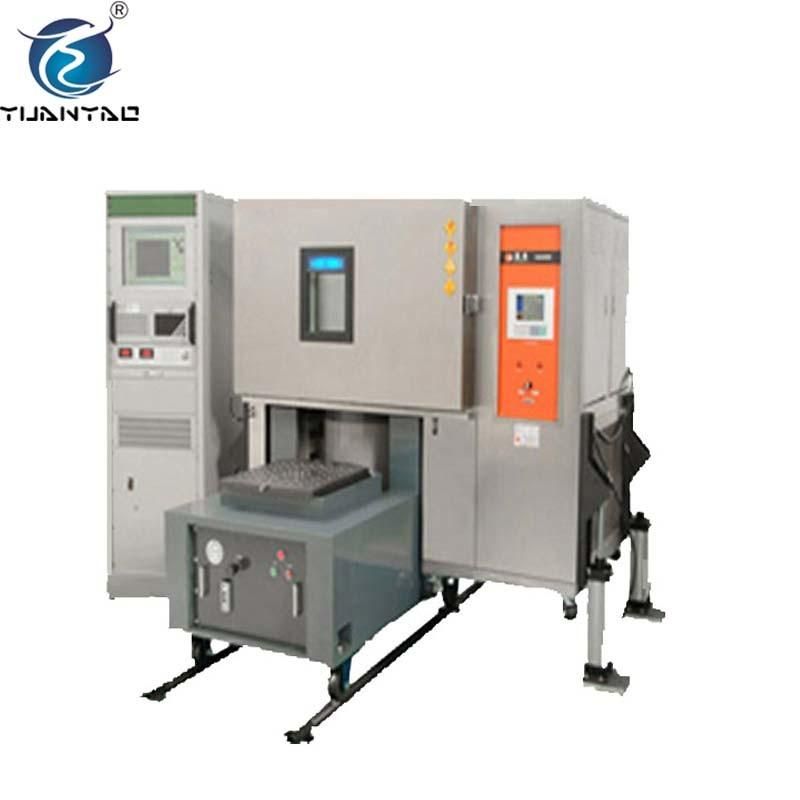

Main features of Temperature Humidity and Vibration Combined Test Chamber
1. This equipment features in dependent systems with vibration control, cross-temperature and cross-
humidity controls. It can be set to test and display results of high temperatures, low temperature, cross
temperature and humidity and vibration, either individually or at the same time.
2. The viewing window is larger than the previous model, to ease inspection of the specimen during test.
A heater inside the door prevents dew appearance.
3. Large display in Chinese/English plus 140 program memory and standard RS-232C computer interface.

Besides combined climatic and vibration chamber, we also manufacturing:
Programmable Temperature & humidity testing Chamber, Triple layer Type Temperature & humidity
Chamber, Temperature & humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester,
Salt Spray Tester, Walk-in environmental Testing Room, Temperature & humidity & Vibration Combined
Testing Chamber, Aging Oven Tester, Rain / Spray Testing Chamber, Burn-in testing equipment, Dust
Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop
Tester, Precision Oven Tester, etc.

If you have any query about combined climtic and vibration chamber, please feel free to contact us for consulting.
