Ce Approved Quality Stability Climatic Test Equipments for Laptop Test

Guangdong Komeg Industrial Co., Ltd.
  • After-sales Service：24 Hours on Line Services
  • Warranty：12 Months
  • Type：Material Testing Machine
  • Weight：100-500Kg
  • Power Source：AC380V
  • Temp. Range：-70°c~+150°c or -68°f~+302°f

Base Info

  • Model NO.：KMH-64S
  • Humidity Range：20-98%R.H.
  • Temp. Constancy：+,-0.5oc
  • Humidity Constancy：+,-2.5%R.H.
  • Temp. Uniformity：+,-2.0oc
  • Humidity Uniformity：+,-3.0%R.H.
  • Equipment Power：7.5kw
  • Martial：Stainless Steel
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and customs made
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：1000 Sets Per Year

Description

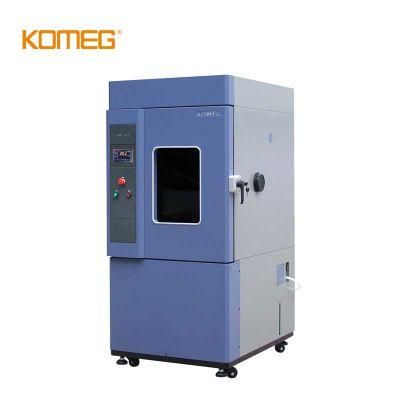

Environmental Temperature and Humidity ChamberModelKMH-64S64L chamber volumeTemp. range -70°C ~150°C Display resolution0.1°CTemperature stabilityHigh±0.5°C ,low ±1.0°CTemperature uniformity ±2.0°CHeat up time -70°C ~+100°C,within 60 minPull down time +20°C ~-70°C,within 80 minHumidity range20~98%R.H,(standard),   '10~98%R.H,(with humidifier)Humidity constancy±2.5%R.HHumidity uniformity±3.0%R.HInterior Dimension(mm)400W X 400H X 400D Exterior Dimension(mm)600W X 1526H X 1200DInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane Foam and Glass Fiber WoolTotal power  5.2KW(heater 2KW included)Max current12.5AWater Consumption0.35L/hrAmbient Temp.+5°C ~+35°C Power SupplyAC 380V±10% 50Hz ,3 phase 4 wires +Ground WiresWeight 200KGSight window size215*230mmSample holder 2 pcsFittingscable port(portΦ50mm)*1, chamber lamp*1, power cable *2mSafety device  (standard)No fuse breaker,over pressure,over heat&over current protect,
over temp. protect, over load protect for blower, dry heat protect Control SystemBalanced Temperature & Humidity Control (BTHC)SystemRefrigeration systemAir Cooled (Water Cooled is option)Hermetic compressor  Hermetic compressor                                                                                               Single stage refrigeration system,                                                                           CFC-Free refrigerant(HFC-507/HFC-23)CFC-Free refrigerant(HFC-507/HFC-23)Controller7-inch LCD Touch Screen panel                                                                        Operation model :Program or fix point runningMemory capacity :120programs,1200steps,All repeat 999 cycles, part repeat 99 cyclesNote: 1. We reserve the right to change specifications without prior notice                                                 2. Customized sizes and configurations available
Packaging
Programmable Climatic  Test Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.

Installation environment
Distance from the wall to both sides and rear of chamber more than 800mm, to the front more than 1500mm. Provide independent power distribution switchgear and humidification condensate drains, and external power connector device is necessary
Ground level, well-ventilated , non- flammable, explosive, corrosive gases and dust
No strong electromagnetic radiation nearby
With floor drain ( less than 2 meters from the refrigeration unit )
Venue floor load capacity : not less than800kg/m2
Leave adequate space for maintenance
 Why Choose KOMEGCe Approved Quality Stability Climatic Test Equipments for Laptop TestCe Approved Quality Stability Climatic Test Equipments for Laptop TestCe Approved Quality Stability Climatic Test Equipments for Laptop TestCe Approved Quality Stability Climatic Test Equipments for Laptop TestCe Approved Quality Stability Climatic Test Equipments for Laptop TestCe Approved Quality Stability Climatic Test Equipments for Laptop TestCe Approved Quality Stability Climatic Test Equipments for Laptop TestCe Approved Quality Stability Climatic Test Equipments for Laptop TestCe Approved Quality Stability Climatic Test Equipments for Laptop Test
Company information
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.

1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
 After-serviceCe Approved Quality Stability Climatic Test Equipments for Laptop Test
 If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
