Architectural Glass Solar Panel PV Module Breakage Testing Equipment Machine with IEC61730

Dongguan Hong Tu Instrument Co., Ltd.
  • Product Name：Solar Panel PV Module Breakag Testing Machine
  • Testing Standard：IEC61730-2:2016
  • Impact Height：300mm~1220mm
  • The Mass of Impactor：45.5kg
  • Control Ways：Touch Screen Control
  • Eleectricity：220V 50Hz

Base Info

  • Model NO.：HTPV-04EF
  • Inner Filling Diameter：2.5-3.0mm
  • Safety Function：Anti-Secondary Impact Function
  • Testing Sample Size：2m*1m (Customized)
  • Transport Package：Wooden Case
  • Specification：It′s according to IEC61215 stanard
  • Trademark：HOTOTECH
  • Origin：Dongguan China
  • HS Code：9013809000
  • Production Capacity：100 Sets Per Month

Description

The structure frame raw materialsSteel channel ( approx the width ≥100mm )The inner dimension of test frame2×1m (adjustable)The sample frame with the rubber bar thickness is 3mm, wide 15mm, hardness shore A50°
 The exterior of the bag according to the standard use the wrapped with tapeThe inner filling diameter 2.5-3.0mm ( the material is pellets or steel ball )
 The mass of impactor45.5 ± 0.5kgThe ratio of widest diameter to heightbetween 1:1,5 to 1:1,4Safety FunctionWith the safety protection frame
Anti-secondary impact functionControl ways Touch screen Electricity220V 50HZ

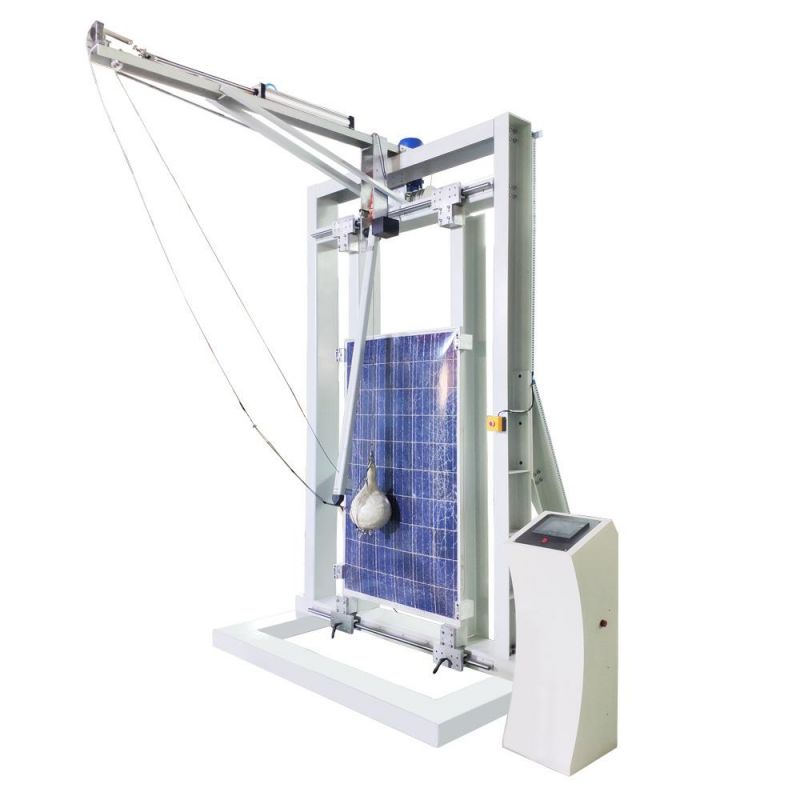

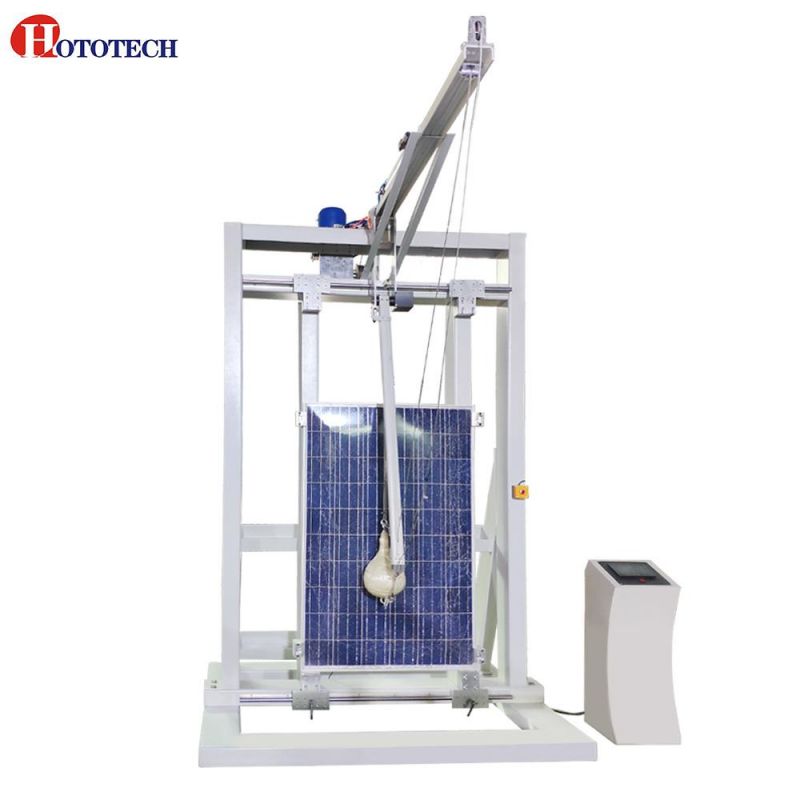

Architectural Glass  Solar panel PV Module Breakage Testing Equipment  machine Images display

Architectural Glass Solar Panel PV Module Breakage Testing Equipment Machine with IEC61730

Architectural Glass Solar Panel PV Module Breakage Testing Equipment Machine with IEC61730

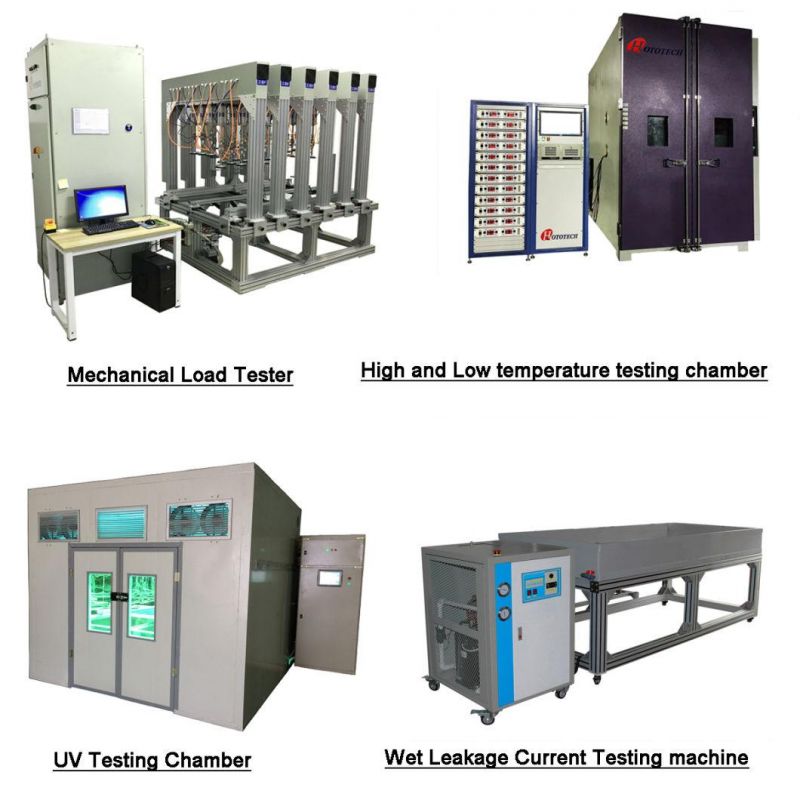

The Relative product display
Architectural Glass Solar Panel PV Module Breakage Testing Equipment Machine with IEC61730
