• Model NO.：H,HWHS-800L
• Humidity：0-150c
• Transport Package：Wooden Case
• Specification：800*1000*1000mm
• Trademark：SUZHOU QIANTONG
• Origin：Jiangsu, China
• HS Code：8479899990
• Production Capacity：231 Sets

Basic Info.

Model NO. H/HWHS-800L Humidity 0-150c Transport Package Wooden Case Specification 800*1000*1000mm Trademark SUZHOU QIANTONG Origin Jiangsu, China HS Code 8479899990 Production Capacity 231 Sets

Product Description

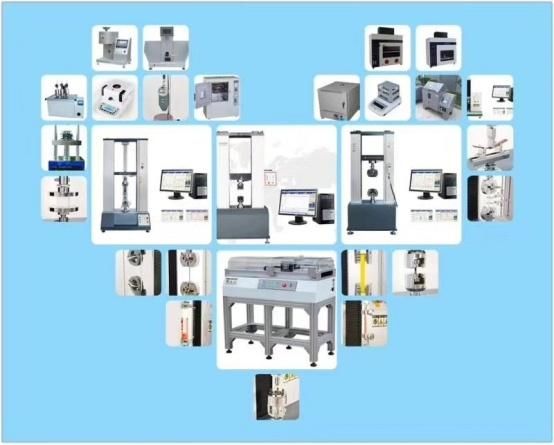

1. Qiantong main scope of testing machinesElectronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)2. Product
High and low temperature test chamber, also known as environmental testing machine, tests a variety of materials heat, cold, dry, moisture resistance. Suitable for electronics, electrical appliances, food, vehicles, metals, chemicals, building materials and other factories.
Used for reliability test of industrial products at high and low temperature. Test the performance indexes of components and materials of electronic and electrician, automobile and motorcycle, aviation and aerospace, ship weapon, universities and research institutes under the condition of high and low temperature (alternating) cycle.


Type	Inner size	Shape size
H/HWHS-50L	350×350×400mm	885×850×1320mm
H/HWHS-100L	400×500×500mm	935×1000×1420mm
H/HWHS-150L	500×500×600mm	1035×1000×1520mm
H/HWHS-225L	500×600×750mm	1060×1130×1700mm
H/HWHS-408L	600×800×850mm	1135×1300×1800mm
H/HWHS-500L	700×800×900mm	1235×1300×1850mm
H/HWHS-800L	800×1000×1000mm	1435×1400×1950mm
H/HWHS-1000L	1000×1000×1000mm	1535×1500×1950mm

 3. Specifications

Temperature range:-50ºC~150ºC

Temperature fluctuation:≤±0.5ºC   (no load)

Temperature uniformity:≤±2ºC     (no load)

humidity range:30~98%R.H(The temperature is 25-80ºC)

Humidity evenness:+2~-3%(>75%RH),±5%(≤75%RH)

Analytic accuracy: temperature:0.1ºC    humidity:0.1%RH

heating rate:1~3ºC/min    (When no load, the whole journey average)

rate of temperature fall:0.7~1.5ºC/min (When no load, the whole journey average)

total power: about12KW

power supply: 380v    50hz

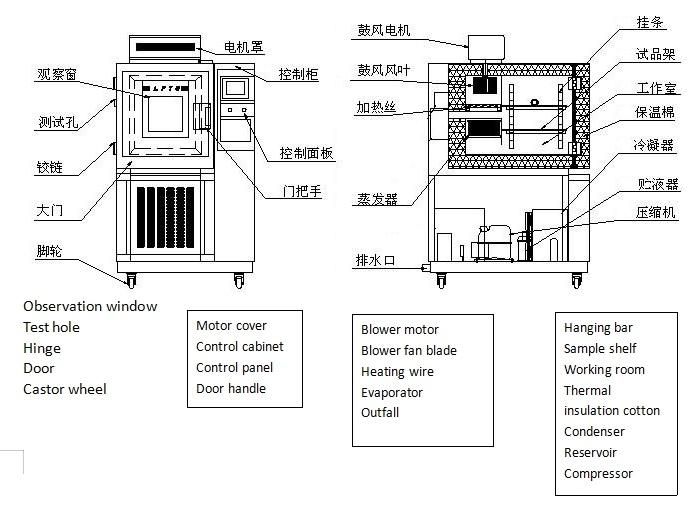

Breakdown drawing
