• Model NO.：QT-5400
• Origin：Jiangsu, China
• HS Code：9031809090
• Production Capacity：575 Sets

Basic Info.

Model NO. QT-5400 Origin Jiangsu, China HS Code 9031809090 Production Capacity 575 Sets

Product Description

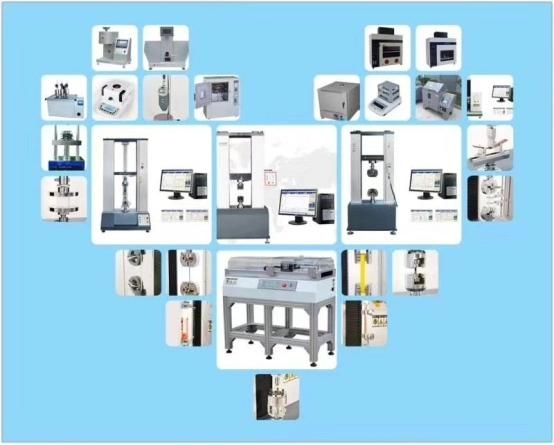

1. Qiantong main scope of testing machinesElectronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)2. Product
Horizontal and vertical combustion testing machine is a combustion performance testing equipment for UL-94. It is equipped with imported control instruments and new test circuit, and has stable performance, reliable performance and easy operation. Because of the wide range of parameters, it is an ideal testing equipment for manufacturers, research institutes and universities.3. Specifications

1. Meet the standards:UL94   IEC 60695-11  GB/T  2408   GB/T 5169  GB23864
2. Shape size:1200*600*1120mm
3. Inner box volume:Inner box volume
4. Flame height adjustment:10-200mm
5. Flame flew adjustment:100-1000mm/min
6. Flame different pressure adjustment:5-200mm
7. Flame degree adjustment:0-45 degrees
8. Burner height adjustment:50mm
9. Vertical moving distance of sample:450mm
10. Horizontal moving distance of sample:180mm
11. Adjustment range of ignition time: 0-99.99 seconds
12. Time range of afterburning and afterburning: 0.0s-99h59m59.9s
13. Resolution of ignition time timer: 0.01s
14. Resolution of afterburning flame and afterburning time: 0.1s
15. Background inside the box: black (powder paint)
