• Model NO.：SXT-602
• Customized：Non-Customized
• Color：Black
• Cable：Energized or De-Energized Cables
• Transport Package：Carton or Plywood
• Specification：ISO9001 SGS
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030899090
• Production Capacity：100 Units

Basic Info.

Model NO. SXT-602 Customized Non-Customized Color Black Cable Energized or De-Energized Cables Transport Package Carton or Plywood Specification ISO9001 SGS Trademark Sansion Origin Wuhan, China HS Code 9030899090 Production Capacity 100 Units

Product Description

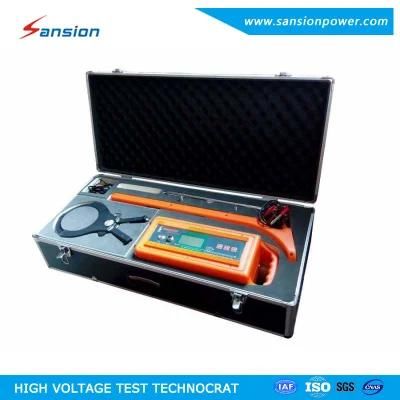

High Voltage Handheld Cable Identifier

General Information:

SXT-602 Cable Identifier is the new generation designed to identify cable accurately. It is applied for AC/DC testing on site.

SXT-602 can transform grid supply 220V AC to the needed large power special signal, then this signal can be transmit to the cable which need to be identified via transmit clamp. According to electromagnetic induction principle, the induction signal which is consistent with transmit signal is bound to be generated on this cable. On test site, we use high sensitive handheld receiver to detect all the cables, and we can find the signaled cable accurately, that is identified cable.


Features:
 Can identify energized or de-energized cables         Portable and identify accurately.  Large clamp applied for all kinds of cable.  Easy to use, indicate clearly.  Safe and reliable.  The sensitive degree of power output frequency and receiver is adjustable, applied for all on site testing.
Specifications: Clamp diameter: ≥110mm inner diameter when closed ≥110mm

 Identify type: pointer type to show

 Weight and oversize: 3.8kg    320×300×180mm

Power: 1.5 kVA (Intermittent instantaneous)More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
