• Model NO.：HJ-56
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Product Specifications：690kgf, 1000kgf
• Maximum Sinusoidal Excitation Force：300kgf Peak
• Maximum Random Excitation Force：300kg.FF
• Maximum Shock Excitation Force：1-4000Hz
• Frequency Range：600kg. F Peak
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-56 Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Product Specifications 690kgf, 1000kgf Maximum Sinusoidal Excitation Force 300kgf Peak Maximum Random Excitation Force 300kg.FF Maximum Shock Excitation Force 1-4000Hz Frequency Range 600kg. F Peak Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

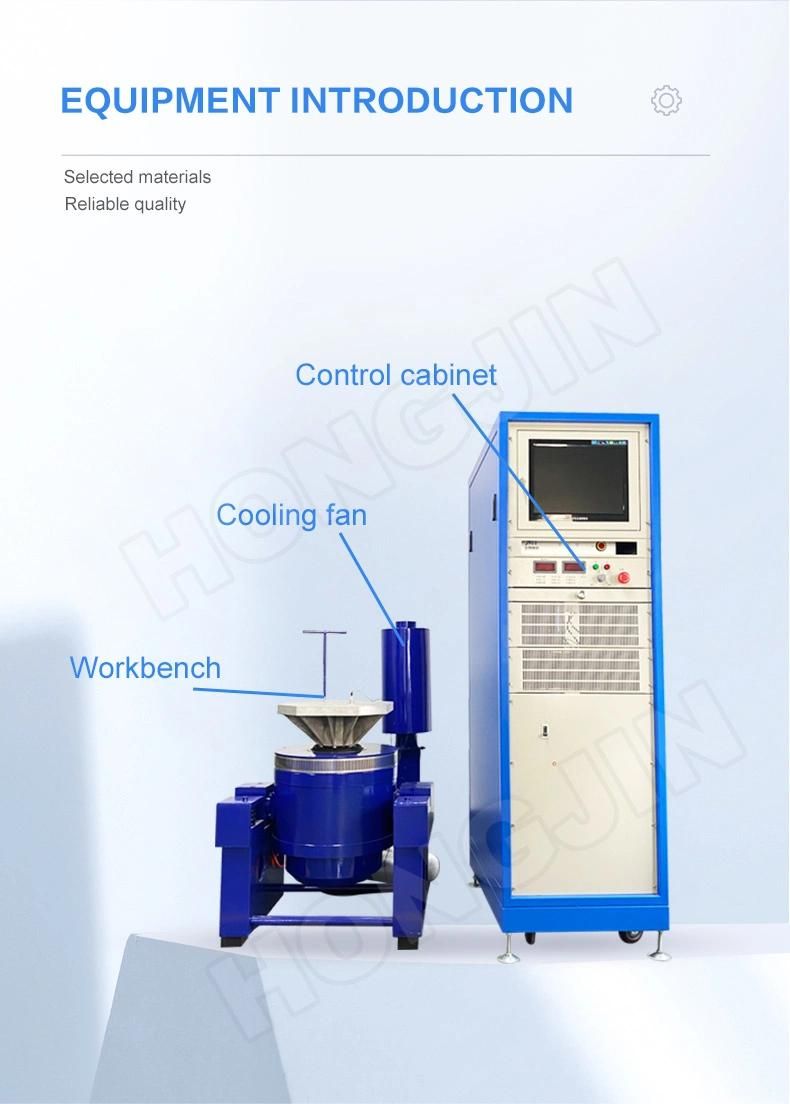

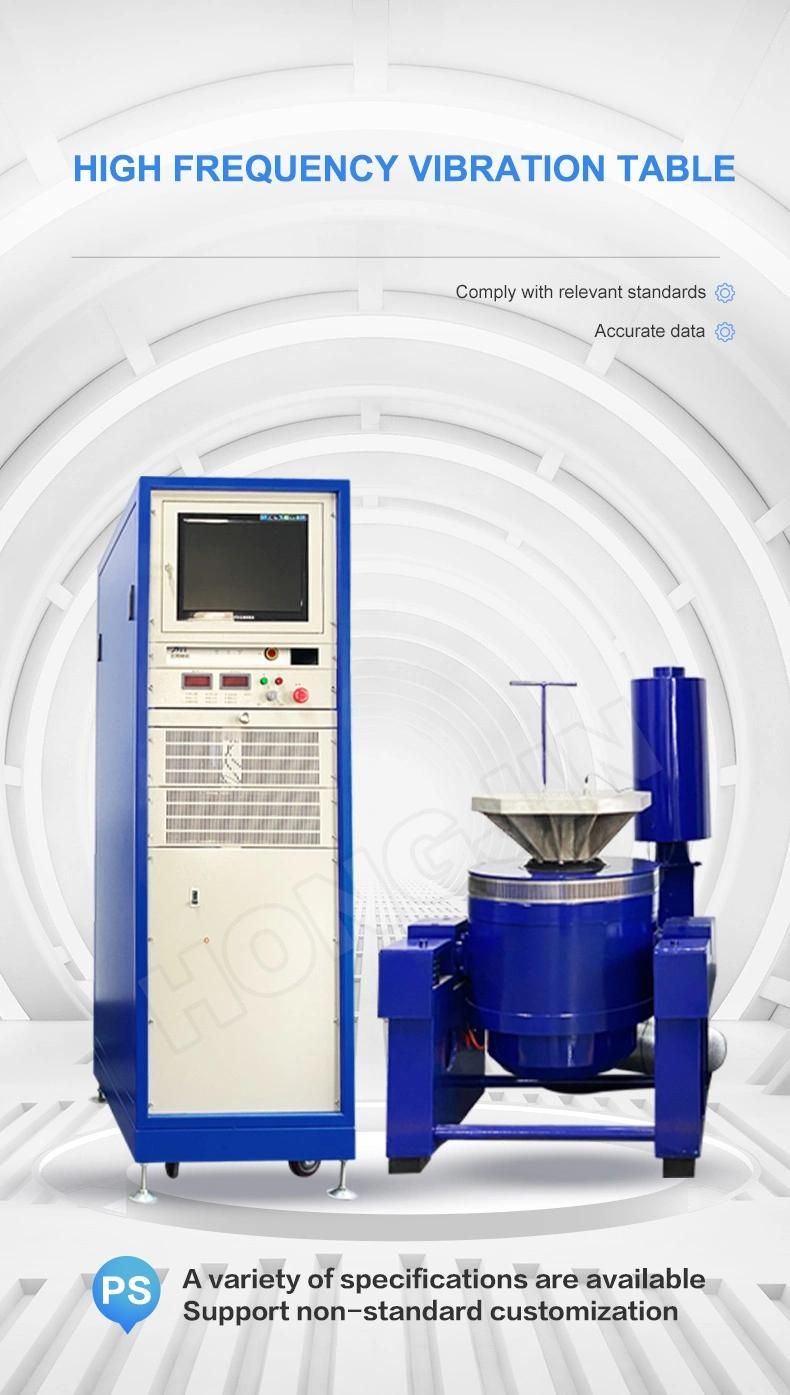

The electromagnetic vibration test bench is mainly used for product vibration environment and impact environment test, environmental stress screening test and reliability test.
The electromagnetic vibration testing machine is completely designed according to the relevant testing standards of batteries. It simulates the battery to be tested under certain vibration test conditions. The battery or battery pack is fixed on the vibration table, and the battery samples are perpendicular to each other according to the specified frequency, acceleration and displacement mode. vibrate in 3 directions

Product Usage:
The vibration test bench is mainly used for vibration environment and shock environment test, environmental stress screening test and reliability test of industrial products such as circuit boards, batteries, aircraft, ships, rockets, missiles, automobiles and household appliances;

The battery electromagnetic shaker meets the standard
GB 31241-2014""Safety Requirements for Lithium-ion Cells and Battery Packs for Portable Electronic Products""
GB/T 18287-2013 ""General Specification for Lithium Ion Batteries for Cellular Phones""
GB/T 8897.4-2008""Primary Battery Part 4 Safety Requirements for Lithium Batteries""
YD/T 2344.1-2011""Lithium Iron Phosphate Battery Packs for Communications Part 1: Integrated Batteries""
GB/T 21966-2008 ""Safety Requirements for Lithium Primary Cells and Accumulators in Transportation""
MT/T 1051-2007 ""Lithium-ion batteries for miner's lamps""
YD 1268-2003""Safety Requirements and Test Methods for Handheld Lithium Batteries and Chargers for Mobile Communications""
GB/T 19521.11-2005 ""Safety Specifications for Inspection of Dangerous Characteristics of Dangerous Goods in Lithium Battery Packs""
YDB 032-2009""Backup lithium-ion battery pack for communications""
UL1642:2012""Lithium Battery Standard (Safety)""
UL 2054:2012""Safety Standards (Lithium Batteries)""
UN38.3 (2012)Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria Part 3
IEC62133-2-2017 ""Safety Requirements for Batteries and Battery Packs Containing Alkaline or Non-Acid Electrolytes""
lEC 62281:2004""Safety Requirements for Lithium Primary Cells and Accumulators in Transportation""
IEC 60086:2007""Primary Battery Part 4 Safety Requirements for Lithium Batteries""
GJB150, GJB360, GJB548, GJB1217,MIL-STD-810F, MIL-STD-883E and other test specifications""

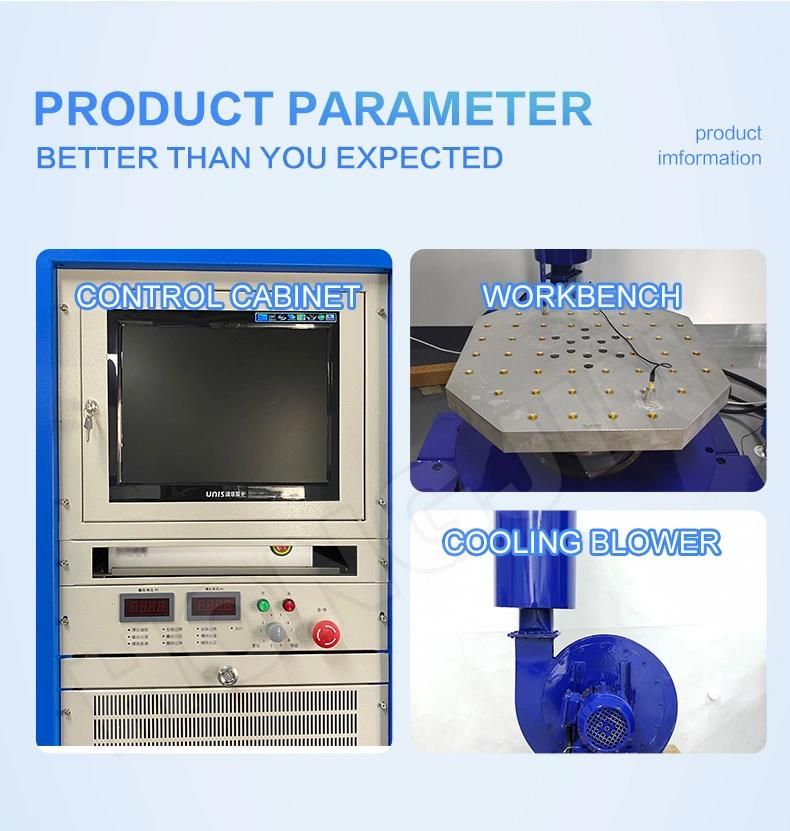

Product specifications	690kgf, 1000kgf
Maximum sinusoidal excitation force	300kgf peak
Maximum random excitation force	300kg.ff
Maximum shock excitation force	1-4000HZ
Frequency Range	600kg. f peak
maximum displacement	40mm p-p (peak-to-peak)
Maximum speed	6.2m/s
Maximum acceleration	100G(980m/s2)120kg
Load (moving coil)	12KG
Vibration isolation frequency	2.5Hz
Moving coil diameter	(Working table diameter) Medium 150mm
Moving coil quality	3kg
Countertop screws	13xM8
Magnetic flux leakage	<10gauss
Equipment size	750mmx560mmx670mm (vertical table) (can be customized)
Equipment weight approx.	560kg
Table size	400*400mm
Material	Aluminum-magnesium alloy
Countertop quality	14kg
Fixed hole	M8 stainless steel screw sleeve, durable and wear-resistant
Maximum frequency of use	2000Hz
Output Power	4KVA
The output voltage	100v
Output current	30A
Amplifier size	720mmx545mmx1270mm
Weight	230kg
