• Model NO.：GDZRC-10U
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Accuracy：0.2%+2digits
• Data storage：1000 sets
• Transport Package：Standard Export Wooden Box
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan, China
• HS Code：9030390000
• Production Capacity：10000 PCS,Year

Basic Info.

Model NO. GDZRC-10U Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Accuracy 0.2%+2digits Data storage 1000 sets Transport Package Standard Export Wooden Box Specification ISO, SGS Trademark HV Hipot Origin Wuhan, China HS Code 9030390000 Production Capacity 10000 PCS/Year

Product Description

DC Winding Resistance Tester 10A for transformer

Transformer DC resistance is a must-test item in transformer manufacturing for semi-finished products, finished products factory test, installation, overhaul, after changing the tap changer, handover test and preventive test of the power department. It can check the welding quality of the winding joints and whether the windings have short-circuited between turns, also whether the contact of each position of the voltage tap switch is good, whether the actual position of the tap changer matches the indicated position, and whether the lead wire is broken, whether there is stock breakage, etc.

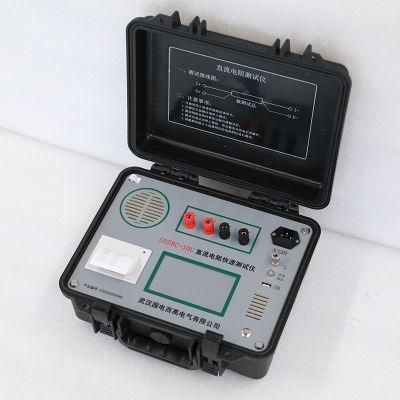

GDZRC-10U DC Winding Resistance Measuring Device is designed to measure DC resistance of inductive devices, such as transformers and power inductors.


Features


1. Adopts two power supply modes: internal lithium battery and AC220V.
2. Wide resistance measurement range, high resolution, and multiple current gear options.
3. With automatic test (blind test) function.
4. With perfect back EMF protection function.
5. With temperature conversion function, which is automatically converted to the resistance value at the standard temperature.
6. The longitudinal test of the DC resistance of the on-load tap changer can be completed at one time.
7. High measurement accuracy, and has the characteristics of anti-interference, shock-proof, and easy to carry.
8. 5.0-inch 65K color touch screen, easy to operate.
9. Built-in large-capacity non-volatile memory, can store 500 sets of data.
10. Built-in high-speed micro thermal printer, which can print measurement data.
11. Built-in high-precision clock, real-time display time.
12. With U disk storage function.

Specifications


Test current	Test range	Accuracy
10A	200μΩ~0.5Ω	±(0.2% rdg+1μΩ)
5A	5mΩ~2.0Ω	±(0.2% rdg+0.005mΩ)
1A	50mΩ~10Ω	±(0.2% rdg+0.05mΩ)
300mA	100mΩ~40Ω	±(0.2% rdg+0.1mΩ)
100mA	200mΩ~120Ω	±(0.2% rdg+0.2mΩ)
30mA	2Ω~400Ω	±(0.2% rdg+0.5mΩ)
<1mA	400Ω~50kΩ	±(0.5% rdg +1Ω)

1. Resolution: 0.0001µΩ.
2. Working temperature: -10-50ºC
3. Working humidity: <85%RH, no condensation
4. Power: AC 220V±20%, 50Hz±1Hz
5. Dimension: 243*154*103mm
6. Weight: Main unit about 3.8kg
