• Model NO.：STDJ-3A
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：300kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stdj-3A Digital Electric Automatic Portable Compac
• Hammer：Circular Faced, 50 mm Dia, Adjustable to 2.5 Kg an
• Drop：Adjustable to 300 mm and 450 mm
• Motor：370W, 1400 R,Min
• Hammer Frequency：30,Min
• Power：220V,50Hz
• Transport Package：Wooden Case
• Specification：82x55x172cm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STDJ-3A Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 300kg Power Source AC220V Oil Cylinder Position No Product Name Stdj-3A Digital Electric Automatic Portable Compac Hammer Circular Faced, 50 mm Dia, Adjustable to 2.5 Kg an Drop Adjustable to 300 mm and 450 mm Motor 370W, 1400 R/Min Hammer Frequency 30/Min Power 220V/50Hz Transport Package Wooden Case Specification 82x55x172cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

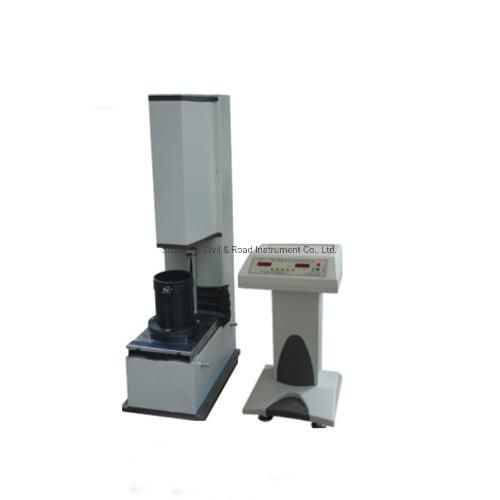

STDJ-3A Digital Electric Automatic Portable Compactor

Standard: EN 13286-47 / BS 1377:4 / ASTM D698, D1557, D1183 / AASTHO T99, T108, T193

Description: This machine automatically compact specimens, eliminating the laborious hand compaction method. The height and weight of the rammer are adjustable to suit test requirements. The rammer travels across the mould and the table rotates the mould in equal steps on a base that is extremely stable, the table also pushes forward and pulls back the mould. Compaction cycle: the mould is pushed forward and rotated, getting six blows at the side in different directions; then pulled back and got one blow in the middle. The number of blows per layer can be set at the beginning of the test.

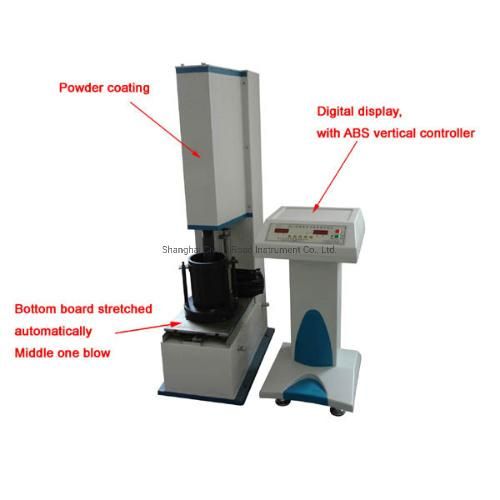

Features: ABS plastic vertical control cabinet. Pre-set blow pattern ensures evencompaction,base plate can automatically pull and push, one blow in the center

Specification:


Hammer	Circular faced, 50 mm dia, adjustable to 2.5 kg and 4.5 kg weight
Drop	Adjustable to 300 mm and 450 mm
Motor	370W, 1400 r/min
Power	220V/50HZ
Hammer frequency	30/min
