• Model NO.：XHDJ705
• Specification：420mm× 250mm× 340mm
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. XHDJ705 Specification 420mm× 250mm× 340mm Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Product Description

  Product Introduction

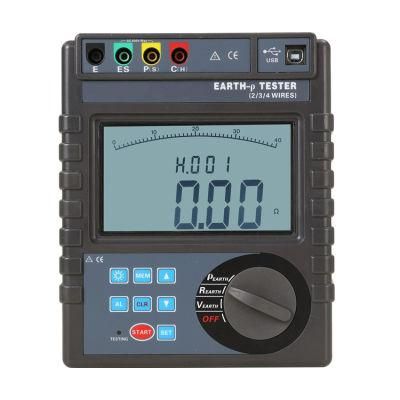

XHDJ705 Digital Earth Resistance Tester adopts the latest digital and micro-processing technology, 3-pole or 2-pole method for earth resistance measurement.

Main Specifications:1. Function: grounding resistance measurement, ground voltage measurement, low value resistance measurement.
2. Power source: DC 9V zinc-manganese dry battery R14S 1.5V 6 knots; continuous standby for 300 hours.
3. Measurement method: precision three-wire measurement, simple two-wire measurement, average, maximum, minimum.
4. Grounding resistance: rated current pole method, measuring current 3mA Max, 820Hz.
5. Ground voltage: average rectification.
6. Display mode: 4-digit large LCD display, blue screen backlight.
7. Grounding resistance: Range: 0.01Ω~2000Ω±1%rdg±3dg Resolution: 0.01Ω.
8. Ground voltage: Range: AC 0 ~ 600V ± 1% rdg ± 3dgt Resolution: 1V.
9. Measurement time: ground voltage: 3 times / sec; grounding resistance: 5 seconds / time.
10. RS232 interface: RS232 interface, software monitoring, storage data can be uploaded to the computer, saved.
11. Working temperature and humidity: -10 ° C ~ 40 ° C; 80% RH or les.
