• Model NO.：PN-CT300B
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：300sets,Year

Basic Info.

Model NO. PN-CT300B Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 300sets/Year

Product Description

1. Description:

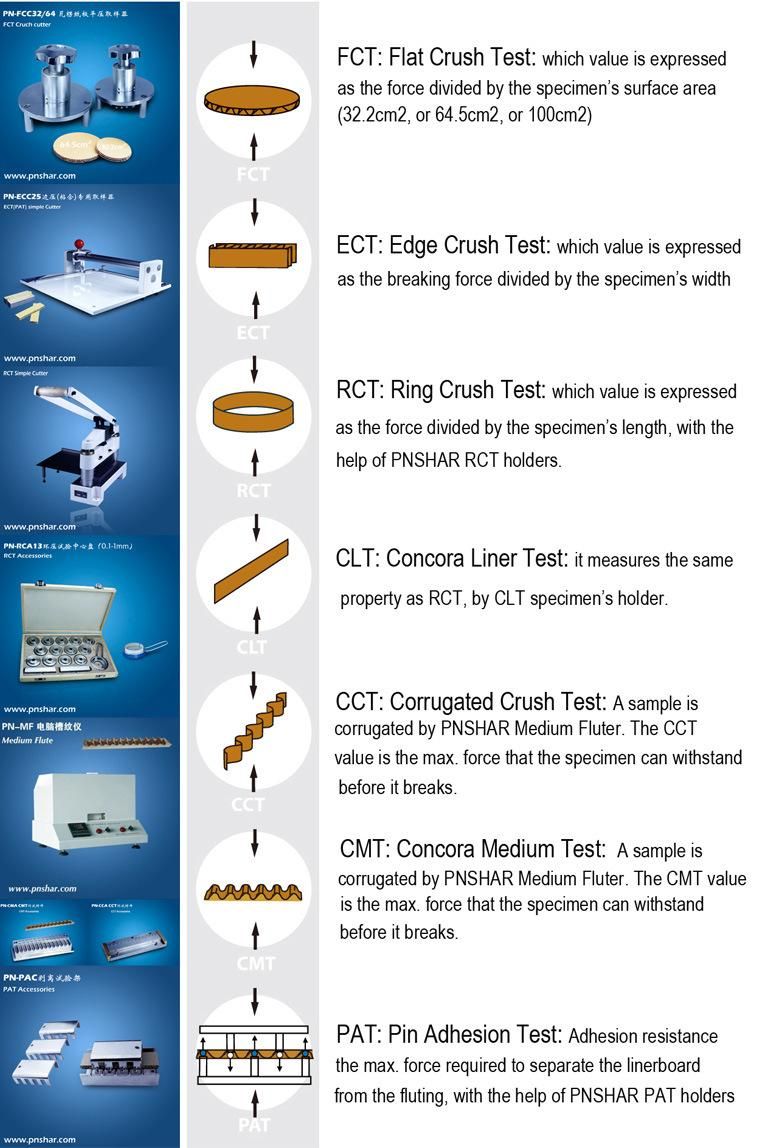

PN-CT300B is used for the test of Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test (PAT), Corrugating Medium Test (CMT) an Corrugated Crush Test(CCT).

2. Applications:
Paper, Paperboard, Corrugated cardboard, Corrugated Package.

3. Standards: ISO 3035. ISO 3037. ISO 7263.

4. Specification:

NO.	ITEM	SPECIFICATION
1	Power Supply:	AC220V±10%  2A  50HZ
2	Measuring Range:	0~3000N
3	Compression Speed:	12.5 ± 2.5mm/min (0-35mm/min Can be adjusted digitally)
4	Return Velocity:	5-40.0 mm/min(Can be set randomly)
5	Display:	English menu and LCD screen
6	Printer:	thermal printing, high speed and no noise.
7	Communication output:	standard RS232 interface

5. Features:
1) High speed return after finishing test
2) Imported step motor with servo control adopted
3) The test result can be measured, statistical and printed automatically and the data can be saved.
4) Blue color LCD display, which can be display the crush time and loading force real time, PN-CT300B can display crush graph real time.
5) New PC software able to manage and analyse the data and can communicate with PC. (Only for PN-CT300B type). Thermal printer, high speed and no noise.
