• Model NO.：STHG-80
• Accuracy Grade：1
• Load Way：Digital Display
• Loading Method：No
• Display：Digital
• Control：Digital
• Weight：35kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Sthg-80 Concrete Penetration Test Apparatus
• Application：It′s Used to Determine Setting Time of Concrete B
• Dial Gauge Accuracy：5n
• Penetration Needle：100mm2
• Transport Package：Wooden Case
• Specification：78*37*105
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STHG-80 Accuracy Grade 1 Load Way Digital Display Loading Method No Display Digital Control Digital Weight 35kg Power Source AC220V Oil Cylinder Position No Product Name Sthg-80 Concrete Penetration Test Apparatus Application It′s Used to Determine Setting Time of Concrete B Dial Gauge Accuracy 5n Penetration Needle 100mm2 Transport Package Wooden Case Specification 78*37*105 Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

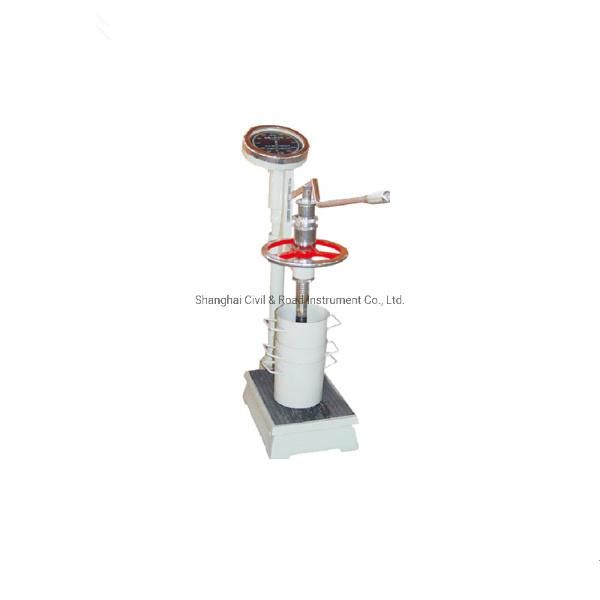

STHG-80 Digital concrete penetrometer concrete penetration test apparatus


The concrete penetration resistance meter mainly uses the manual penetration resistance method to determine the concrete setting time. It is suitable for all kinds of cement, admixtures and different concrete mix ratios, concrete mixes under different temperature conditions, and the test of setting time. The exterior design is light and beautiful.
The product meets the requirements of GB/T50080 and JTJ053 of the Ministry of Communications.
Available in two styles, pointer type and digital display type.


Sample volume(Upper caliber*Lower caliber*Depth)	φ160mm×φ150mm×150mm
Maximum penetration	1200N
Penetration depth	25mm
Penetration speed	2.5mm/s
Penetration needle cross section	100 mm 2, 50 mm2 ,20 mm2
Penetration position	9 points on the outer ring and 4 points on the inner ring
Force measurement method	Hydraulic and pressure gauge force measurement
Minimum division value	5N
Dial gauge accuracy	5N
Voltage	AC220V±10%, 50 Hz
