• Model NO.：PHQ-300H
• Control：Computer Control
• Power Source：AC380V
• Oil Cylinder Position：Under
• Certificate：Ce,ISO,SGS,BV.
• Unbalance Reduction Ria：90%
• Delivery Time：20 Days
• Warranty：1 Year
• Number of Packing：2 PCS
• MOQ：1 Set Rotor Dynamic Balancing Machine
• Color：Blue
• Usage：Auto Testing Machine
• Item：Rotor Dynamic Balancing Machine
• Power：Electronic
• Transport Package：Packed in Standard Export Wooden Case
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9031100090
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHQ-300H Control Computer Control Power Source AC380V Oil Cylinder Position Under Certificate Ce,ISO,SGS,BV. Unbalance Reduction Ria 90% Delivery Time 20 Days Warranty 1 Year Number of Packing 2 PCS MOQ 1 Set Rotor Dynamic Balancing Machine Color Blue Usage Auto Testing Machine Item Rotor Dynamic Balancing Machine Power Electronic Transport Package Packed in Standard Export Wooden Case Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 9031100090 Production Capacity 1000 Sets/Month

Product Description

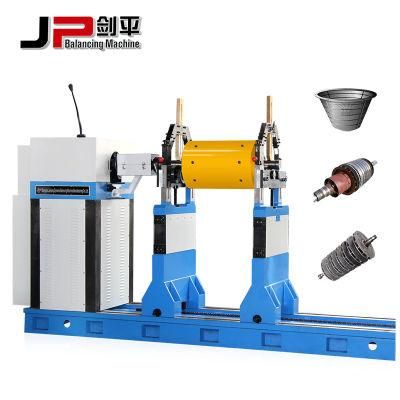

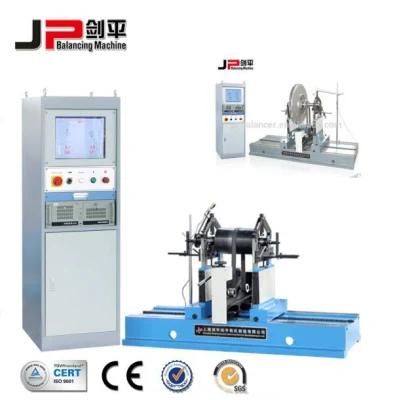

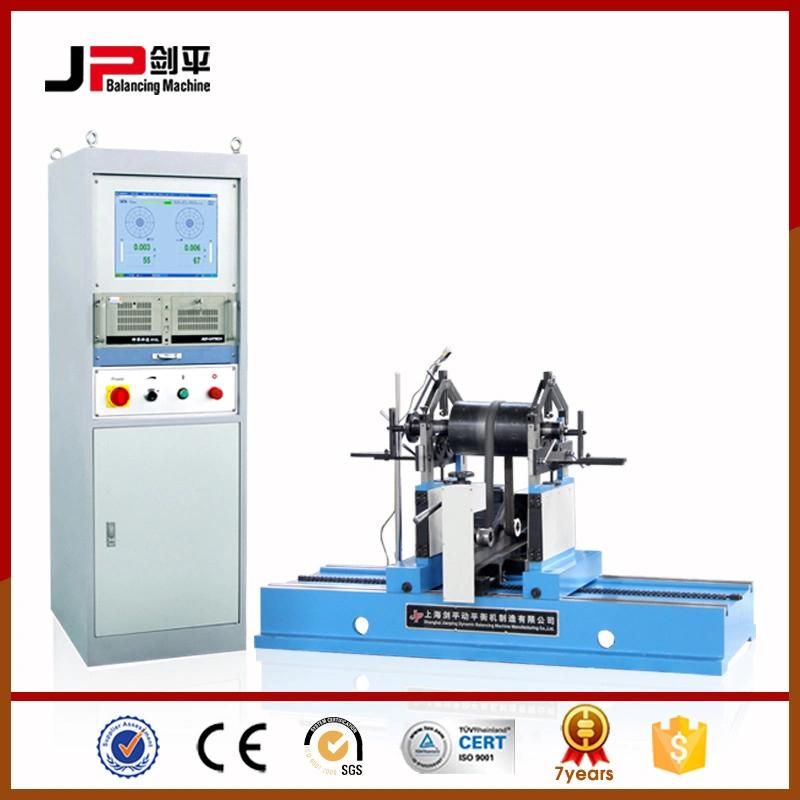

Technical specifications of Belt Drive balancing machine PHQ-300H(JP 580)

Technical data at a glance	PHQ-50	PHQ-160H	PHQ-300H	PHQ-500H
Max Mass of Workpiece(kg)	50	160	300	500
Max Diameter of Workpiece (mm)	Φ700	Φ1000	Φ1220	Φ1500
Distance Between Two Support Bearings (mm)	80~700	130~1270	130~1270	130~1270
Journal Diameter Scope of Workpiece (mm)	Φ 8~80	Φ 15~753)	Φ 15~753)	Φ 15~753)
Diameter Scope of Driving Belt (mm)	Φ18~200	Φmax400	Φmax500	Φmax600
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	700,10501)	756,11761)	756,11761)	756,11761)
Motor Power (kw)	0.752)	1.52)	1.52)	2.22)
Length of Bed (mm)		1500	1500	1500
Min Achievable Residual Unbalance Amount (emar)	≤0.5g· mm/kg	≤0.5g· mm/kg	≤0.5g· mm/kg	≤0.5g· mm/kg

 Range of Application

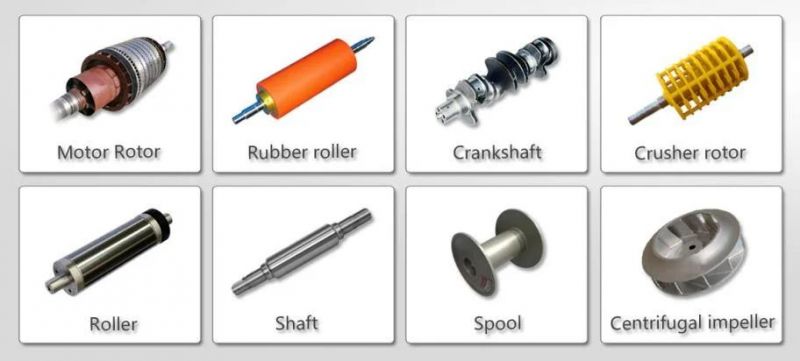

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

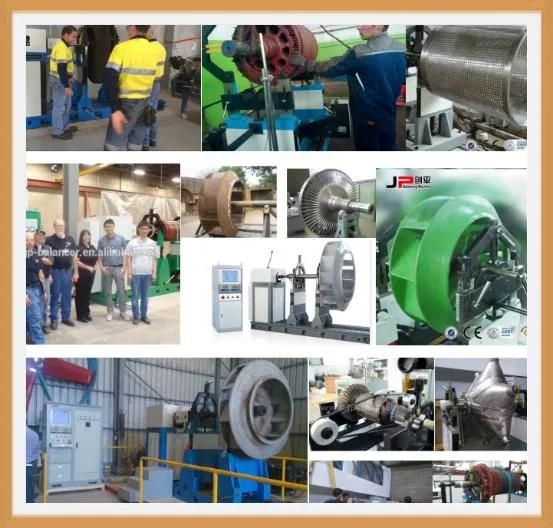

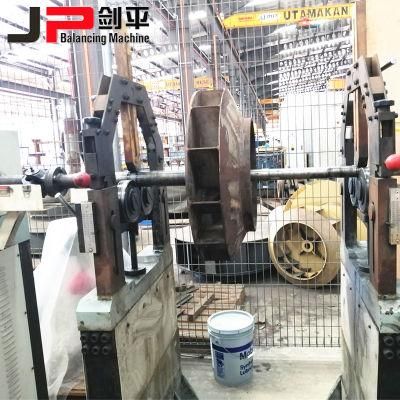

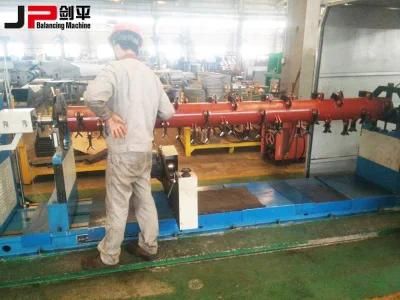

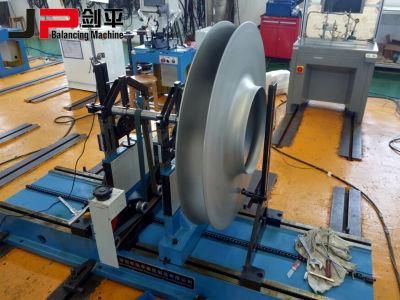

Customer use display

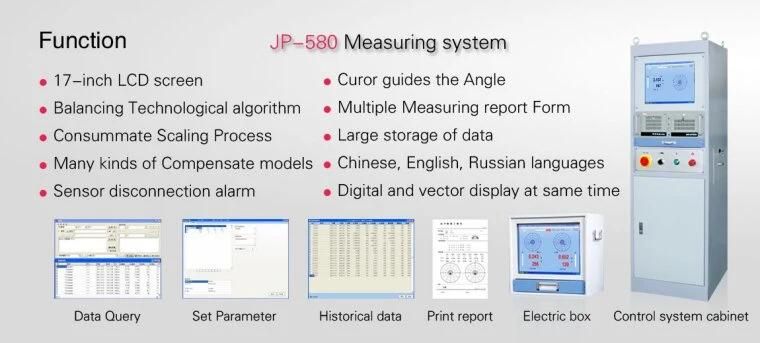

Eletrical Measuring System

Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

About us & Certificate

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. We are professional balancing machines manufacturer, which located in international City Shanghai. The Company was founded in 2004,covering an area of 10000 square meters , and has 4 sales center in domestic.

We have ten series and more than 40 models of balancing machines, including  belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.

Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
