We-1000d Digital Display Steel Bar Tensile Universal Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：Online Technical Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：>20000kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
Base Info
- Model NO.：WE-1000D
- Accuracy Grade：1
- Load Way：Hydraulic
- Loading Method：Static Load
- Display：Computer
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Delivery Time：3 Days After Get Tt Payment
- Structure：6 Columns
- Load Accuracy：1 Percent
- Load Resolution：1,300000
- Transport Package：Standard Export Packing
- Specification：1100*780*2200mm
- Trademark：HST
- Origin：China
- HS Code：9024800000
- Production Capacity：8000 Sets Per Year
Description
WE-1000DStructure 6 Column (Four Columns Two Ball Screws) Control Way Loading Process Manual Control Max. Load 1000 KN (100 TONS) Load Accuracy ≤± 1% Load Range 2%~100%FS
(20KN~1000KN) Load Resolution 0.01 KN Piston Speed 0-50mm/min
Manual Adjustment Crossbeam Lifting Speed 150mm/min Max. Effective Tension Test Space 650mm (Can Be Customized) Max.Effective Compression Test Space 500mm (Can Be Customized) Center Spacing Between Columns 600mm Column Effective Spacing 525mm Max. Piston Stroke 250mm Clamping Method Manual Clamping / (Optional: Hydraulic Clamping) Round Specimen Clamping Range Φ13-Φ26mm,Φ26-Φ40mm
(Optional: Φ6-Φ13mm, Φ40-Φ50mm) Flat Specimen Clamping Range 0-15mm (Optional: 15-30mm) Flat Specimen Clamping Width 80mm Compression Platen Size Φ 160mm Span Of Bending Rollers 450mm Width Of Bending Rollers 120mm Power Supply 3-Phase 4-Wires, AC 380V, 50Hz (Can Be Customized)

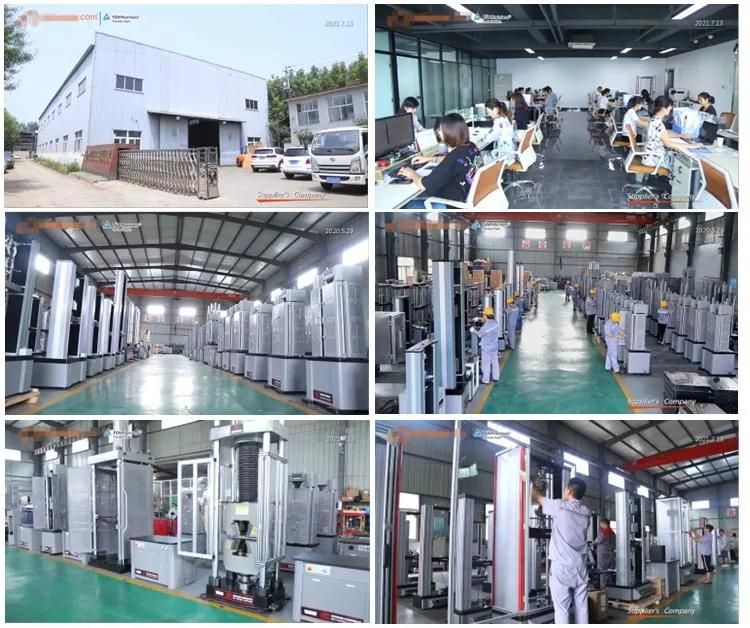

WORK SHOP
