10kn Automatic Steel Wire Tension Universal Test Instrument

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：24 Hours Technical Supply
  • Warranty：12 Months
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：WDW-10
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Delivery Time：3 Days After Get Tt Payment
  • Standard：ASTM, GB, ISO, DIN
  • Transport Package：Standard Export Packing
  • Specification：700*450*1775mm
  • Trademark：HST
  • Origin：China
  • HS Code：9024101000
  • Production Capacity：200 Sets Per Month

Description

Basic Info.

Model NO. WDW-10 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Delivery Time 3 Days After Get Tt Payment Standard ASTM, GB, ISO, DIN Transport Package Standard Export Packing Specification 700*450*1775mm Trademark HST Origin China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

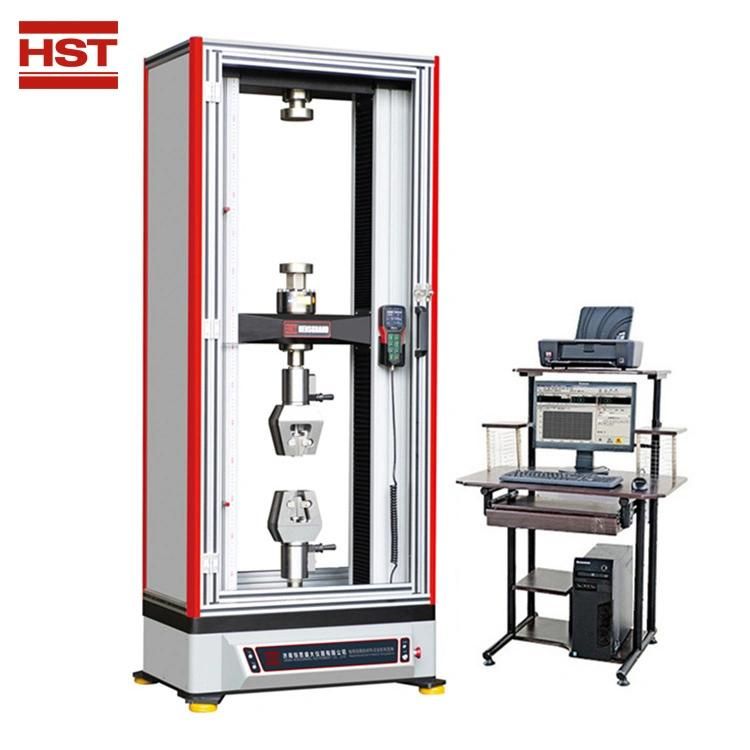

10KN Automatic Steel Wire Tension  Universal Test Instrument
10kn Automatic Steel Wire Tension Universal Test Instrument

1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

Main Technical Parameters:
ModelWDW-10
Max. Load10KN
StructureFour-column Floor Model
(Upper Is Tensile And Lower Is Compression)
Control MethodComputer Control
Load Accuracy1 Class
Load Range2%~100% FS
Resolution1/300000
Measuring Range Of
Deformation		2%~100%
Accuracy Indication
Of Deformation		≤±1%
Disp. Indicating
Relative Error		≤±1%
Displacement
Resolution		0.04um
Adjusting Range Of
Control Rate Of Load		0.005~5%FS/S
Scope Of Consistent
Load Deformation And
Displacement Control		0.5%~100%FS
Accuracy Of Consistent
Load Deformation And
Displacement Control		Preset value ≥ 10%FN, within the ±0.1% of preset value;
Preset value < 10%FN, within the ±1% of preset value.
Tensile Space700mm (Can be customized)
Compression Space700mm (Can be customized)
