2000kn Universal Material Test Equipment with Ce and ISO
Jinan Kason Testing Equipment Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：>1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：WAW-2000H
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Delivery Time：3 Days After Get Payment
- Certifiaction：ISO Ce
- Transport Package：Standard Export Packing
- Specification：0-50mm,min stepless speed adjusting
- Trademark：HST
- Origin：China
- HS Code：9024101000
- Production Capacity：300 Sets Per Month
Description
Basic Info.
Model NO. WAW-2000H Loading Method Static Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC220V Oil Cylinder Position Under Delivery Time 3 Days After Get Payment Certifiaction ISO Ce Transport Package Standard Export Packing Specification 0-50mm/min stepless speed adjusting Trademark HST Origin China HS Code 9024101000 Production Capacity 300 Sets Per MonthProduct Description
2000kn universal material test equipment with CE and ISOContact:Sunny Phone:+8615589960023
1.Application

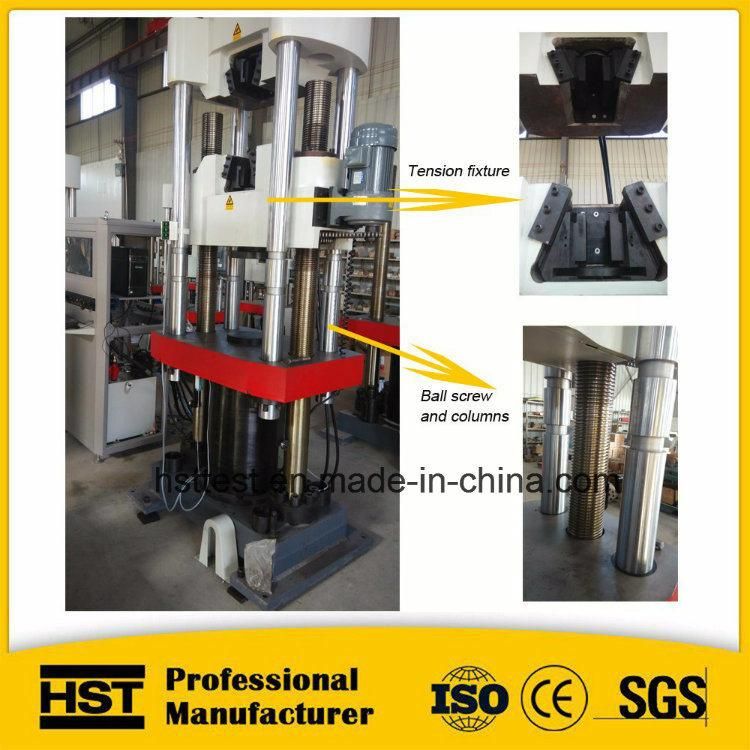

The machine adopts hydraulic loading, Computer control, easy and convenient to operate.It is mainly used to execute the tension, compression, bending, flexural etc.Test for metal materials.Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2.Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3.Main specifications
| Model | WAW-1500H |
| Structure | 6 column |
| Control way | Constant stress uniform deformation constant displacement three closed loop control and program control |
| Max.Load | 1500kN |
| Middle cross beam adjust method | Nut rotate |
| Load accuracy | ≤±1% /≤± 0.5% |
| Load range | 2%-100%FS /0.4%-100%FS |
| Load resolution | 1/300000 |
| Deformation Measurement Range | 2%~100%FS |
| Deformation accuracy | ≤±1%/± 0.5% |
| Displacement resolution | 0.01mm |
| Displacement error | ≤±0.5% |
| Max.Piston stroke | 250mm |
| Max piston moving speed | 0-50mm/min stepless speed adjusting |
| Crosshead lifting speed | 200mm/min |
| Max.Tension test space | 850mm (can customize) |
| Max.Compression Test Space | 650mm (can customize) |
| Column clearance | 650mm |
| Clamping method | Hydraulic clamp |
| Round specimen clamping range | Φ13-Φ60 |
| Flat specimen clamping range | 0-20 (20-40 Optional) |
| Flat specimen clamping width | 125mm |
| Compression plate size | Φ160mm |
| Bending roller distance | 450mm |
| Width of bending rollers | 120mm |
| Power supply | 3-phase,AC380V, 50Hz (can be customized) |
