Laboratory Used 20kn Digital Electronic Universal Testing Machine

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：24 Hours Technical Supply
  • Warranty：12 Months
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：20kn

Base Info

  • Model NO.：WDS-20
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Delivery Time：15 Days After Get Payment
  • Transport Package：Standard Export Packing
  • Specification：700*450*1775mm
  • Trademark：HST or OEM
  • Origin：Shandong China
  • HS Code：9031809090
  • Production Capacity：100 Sets Per Month

Description

StructureFour-column floor or desk model,(upper is compression and lower is tensile)CoverAll aluminum alloyControl methodComputer controlLoad accuracyClass 1(Class 0.5 for choice)Load range2%~100%F.S (0.2%~100%F.S for choice)Load resolution1/300000Rang of deformation4%-100%FSResolution of deformation0.04umAccuracy of displacementWithin ±0.5% of indicating loadResolution of displacement0.01mmTest speed(mm/min)0.05-10000.05-5000.05-5000.05-2000.05-200Tensile space(mm)800700700550700Compression space(mm)800700700550700Test width(mm)400500550600500Thickness of beam(mm)305868108200

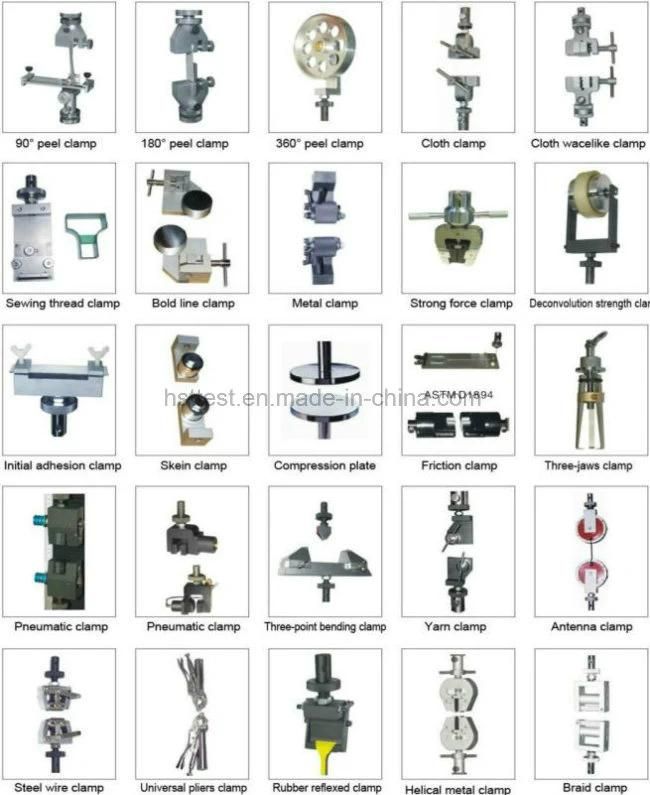

Fixtures for choice according to different material:
Laboratory Used 20kn Digital Electronic Universal Testing Machine

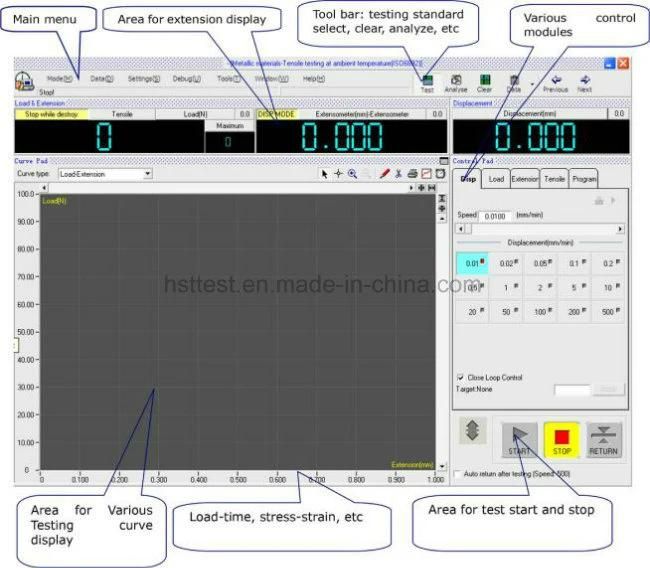

Machine software show:
Laboratory Used 20kn Digital Electronic Universal Testing Machine
Laboratory Used 20kn Digital Electronic Universal Testing Machine
