• Model NO.：PHLD-200
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Brand Name：Jp
• Model Number：Phld-200
• Power：Electronic
• Output Power：3 -4variable-Frequency
• Length：1400mm
• Width：1250mm
• Height：1600mm
• Gross Weight：1050kg
• Usage：Balancing Machine
• Place of Origin：Shanghai, China (Mainland)
• Transport Package：Fumigated Wood Box
• Specification：CE, ISO, SGS
• Trademark：JP
• Origin：Shanghai, China
• HS Code：90311000
• Production Capacity：1000 Set,Sets Per Month Negotiation

Basic Info.

Model NO. PHLD-200 Control Computer Control Weight 100-500Kg Power Source AC220V Brand Name Jp Model Number Phld-200 Power Electronic Output Power 3 -4variable-Frequency Length 1400mm Width 1250mm Height 1600mm Gross Weight 1050kg Usage Balancing Machine Place of Origin Shanghai, China (Mainland) Transport Package Fumigated Wood Box Specification CE, ISO, SGS Trademark JP Origin Shanghai, China HS Code 90311000 Production Capacity 1000 Set/Sets Per Month Negotiation

Product Description

 Balancing Machine for Lathe Chuck (PHLD-200)

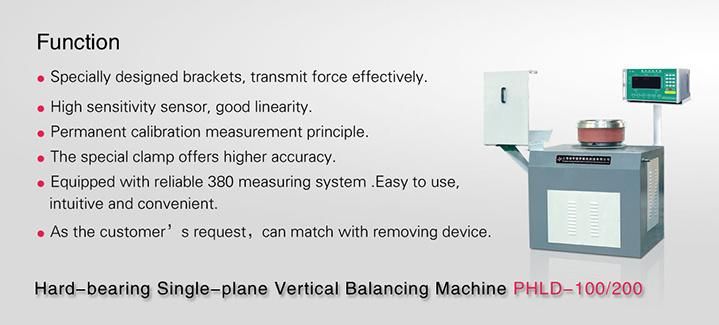

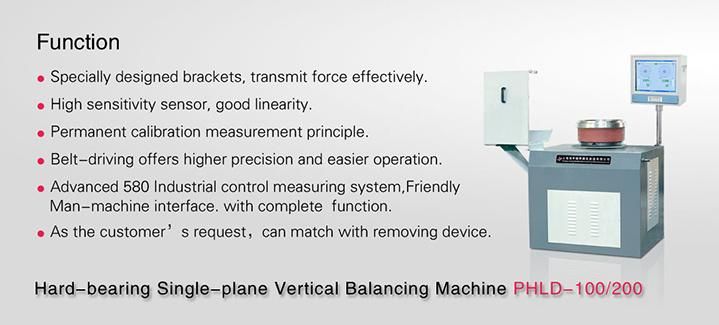

Production Description

Specially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
. Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped

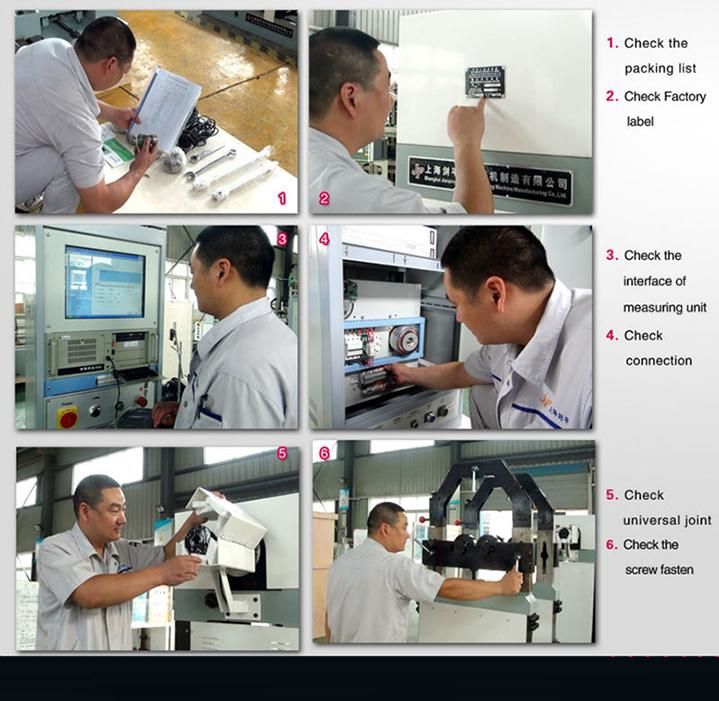

Delivery inspection



Range of Application

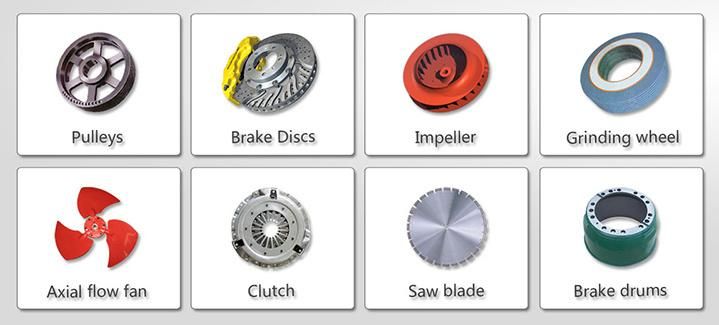

The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk, brake drum. Saw blade. Clutch, belt pulley, chuck, pump impeller, flywheel, grinding wheel, range hood fan, brake, torque converter, tool etc. High speed and precision are advanages of this balancing machine.
According to user's requirement, The machine can install de-weight device

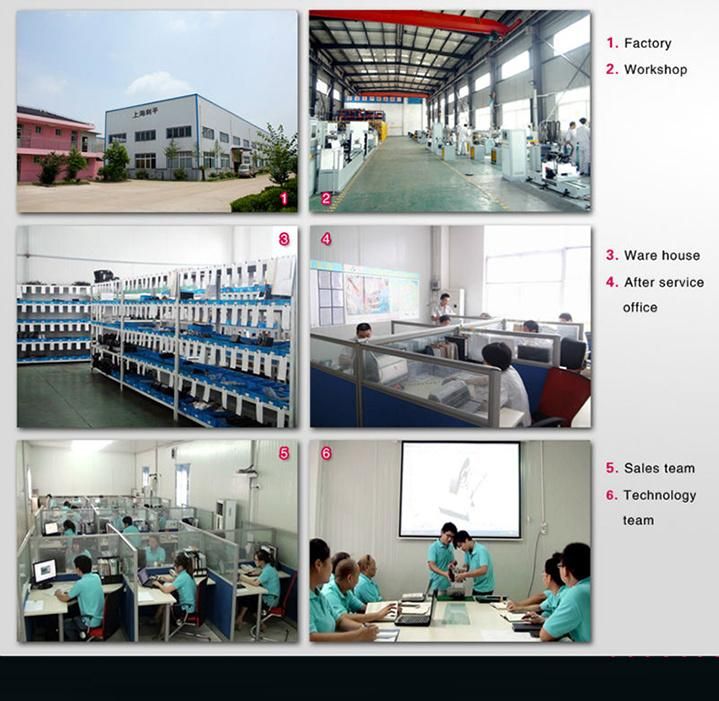

Factory Outlook



Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Certificates



Production Parameters


Technical data at a glance	PHLD-100	PHLD-200
Max Mass of  Workpiece ( with clump) (kg)	100	200
Max Diameter of Workpiece (mm)	600 With hood 1000 Without hood	600 With hood 1000 Without hood
Height of Workpiecemm	200	200
Rotation Speed of Main Axis(r/min)	~1080	~1080
Motor Power(kw)	3variable-frequency	4variable-frequency
Min Achievable Residue Unbalace Amount (emar )	5g. mm/kg	5g. mm/kg
