• Model NO.：HZJF
• Weight：0-100Kg
• Power Source：AC 220V,AC 380V
• Rated Capacity：5-1000kVA
• Impedance Voltage：10%
• Output Voltage Waveform：Power Frequency, Sine Wave
• Output Voltage：AC 0-1000kv
• Surface Temperature：Oil Immersed:<55ºC Gas: <50ºC
• Partial Discharge：Under Rated Voltage≤5PC
• No-Load Loss：0.2%-0.35%
• Insulation Method：Oil, Gas
• Transport Package：Wooden Box with Wrapping Film
• Specification：can be customized
• Trademark：United Electrical
• Origin：Hu Bei, China
• HS Code：9030809090

Basic Info.

Model NO. HZJF Weight 0-100Kg Power Source AC 220V/AC 380V Rated Capacity 5-1000kVA Impedance Voltage 10% Output Voltage Waveform Power Frequency, Sine Wave Output Voltage AC 0-1000kv Surface Temperature Oil Immersed:<55ºC Gas: <50ºC Partial Discharge Under Rated Voltage≤5PC No-Load Loss 0.2%-0.35% Insulation Method Oil, Gas Transport Package Wooden Box with Wrapping Film Specification can be customized Trademark United Electrical Origin Hu Bei, China HS Code 9030809090

Product Description

Application:

It is mainly used for testing frequency voltage insulation level of various insulation materials, insulation structure and electrical products, also as partial discharge frequency testing power supply for testing object such as transformer, mutual inductor and lightning arresters. It widely used in electrical manufacturing, power operation departments, research institutes and universities.

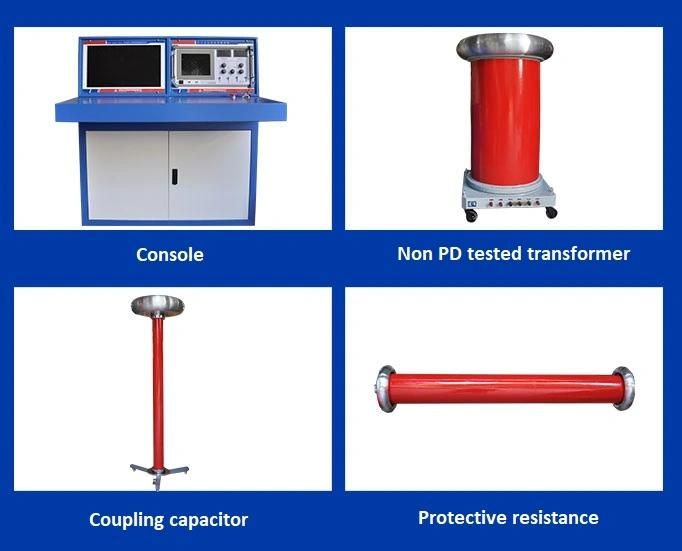

The system includes:
1. Test Console
2. PD free oil/gas type transformer
3. Coupling capacitor
4. Protective resistor
5. Isolation filter
6. Partial discharge detector
7. Other accessories



Features:

•  320*240 LCD screen,high speed thermal printer.
• HV Voltage, LV voltage, LC current measured at the same time, with high precision sensor and high performance collection chip
• Automatic mode and manual mode for option.
• Display HV voltage, LV voltage, LV current, time and withstanding result.
• Over-voltage and over-current protection. Output voltage, HV current upper limit, LV current upper limit and timing can be set.
• Zero-starting function. Test can be proceed after the voltage is back to zero.
• Store up to 8000pcs data in 3months. It has USB port to upload data to USB disk.
• When setting voltage is arrived, it will timing automatically. After timing, voltage will be back to zero.
• When the LV current is over setting value, the voltage will be cut off automatically and it will be back to zero. When the HV current is over setting value, the test object will be cut off and test can be proceed continuously.
• With anti-interference ability, suitable for electromagnetic environment.
• With wheels for both control unit and HV unit, easy to move.

Specification:

System Specifications

• Power supply: 380V±10%,50/60Hz
• Rated Capacity: 15kVA
• Output Voltage: 150kV, current: 100mA
• Short-circuit impedance: <18%
• Operation time: 30mins@100% rated voltage and current.
  Continuous working@ 2/3 rated voltage and current.
• Wave form distortion rate:<3% when voltage regulator input voltage distortion rate <3%.
• PD value:≤5pC @ 100% rated voltage

1. Control unit

• Power: AC380V±10%, 50/60Hz
• Capacity: 15kVA
• Output voltage: AC 0-430V
• Rated input current: 37.5A
• HV voltmeter range: 0-150kV
• Timing range: 0-999s
• Voltage and current accuracy: ≤1.5%(F.S)±2digits
• Environment temperature: -20ºC to 50ºC

2. PD-free Gas testing transformer (HV unit)

• Rated capacity: 15kVA
• Input voltage: 0-400V
• Input current: AC 0-37.5A
• Output voltage: AC 0-150kV
• Output current: AC 100mA
• Voltage accuracy: AC ±0.5%
• PC value on rated voltage: ≤5pc
• Voltage distortion factor: <3%
• Insulation dielectric: SF6 gas

3.Coupling capacitor

• Rated frequency: 50/60Hz
• Standard capacitance: 800pF±10%
• Rated voltage: 150kV
• Voltage ratio: 1000/1
• Dielectric loss: <0.5%
• Measurement accuracy: 1%
• Permitted operation time: same with testing transformer
• PD value: ≤5pc on 100% of rated voltage, ≤3pc on 80% of rated voltage.

4.Protective resistor

• Rated frequency: 50/60Hz
• Rated voltage: 150kV
• Resistance: 8kΩ
• Rated current: 0.1A
• Permitted operation time: same with testing transformer

5. Isolation filter LBQ-15kVA

• With L-C filter loop circuit, and built-in filter compensation device
• Rated capacity: 15kVA
• Rated voltage: 400V
• Rated current: 37.5A
• Frequency: 50/60Hz
• Attenuation: 40kHz-100kHz ≥40dB
  100kHz-1.5Mhz ≥60dB
• Permitted operation time: same with testing transformer

Company Profile:
Wuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.

Competitive Products
Certifications

Customer Visit

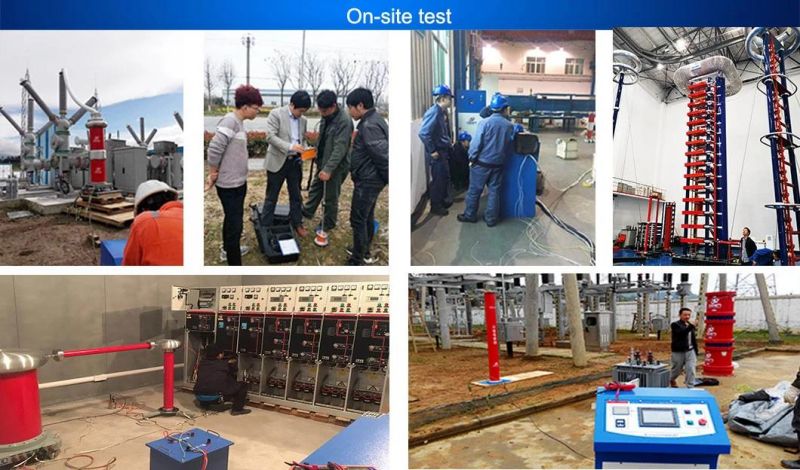

On-site Service
