• Model NO.：GD-25
• Gas：Methane, Propane or Butane or Liquefied Petroleu
• Power Supply：AC220V, 50Hz, 50W
• Weight：About 70kg
• Warranty：12 Months
• Transport Package：Plywood Case
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD-25 Gas Methane, Propane or Butane or Liquefied Petroleu Power Supply AC220V, 50Hz, 50W Weight About 70kg Warranty 12 Months Transport Package Plywood Case Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

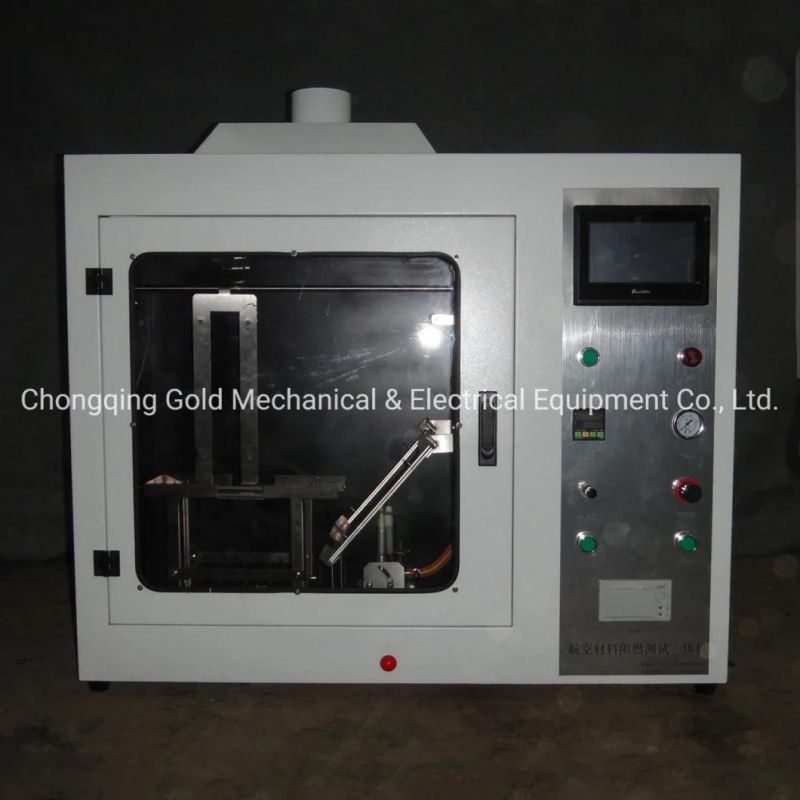

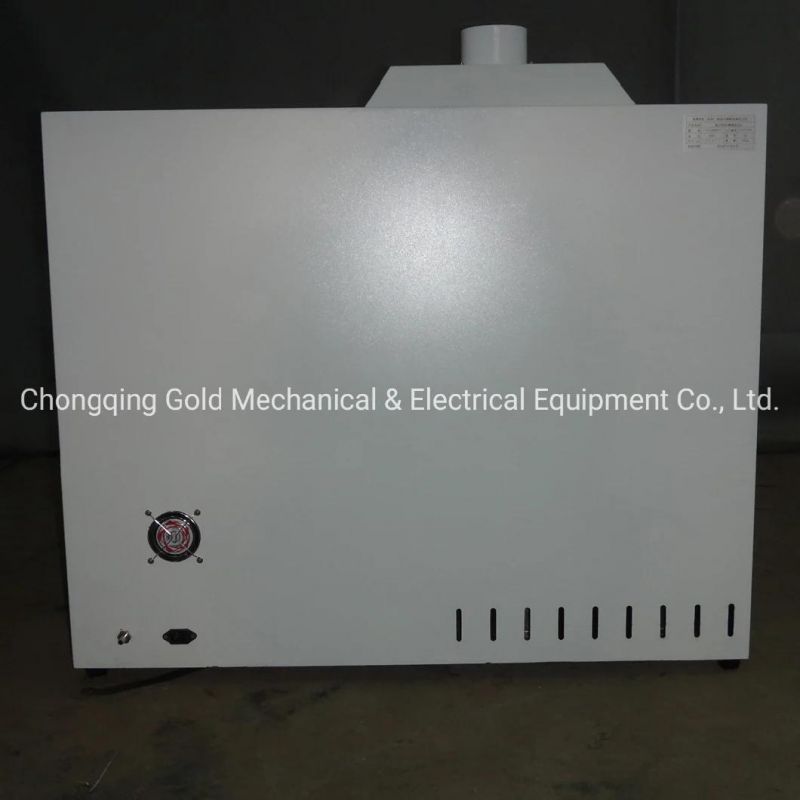

CCAR 25 Far Bunsen Burner Test Apparatus


Introduction:

The product is according to aviation standards CCAR-25 Appendix F of the first part b (4), b (6), b (7)

Equipment integrated appendix F the first part b4 vertical combustion and b 6 45 ° and 60 ° b7 item combustion demand for housing and design ;And b2 is the request of the sample holder and customized for various experiment using the sample holder and corresponding independent test procedure;

This product with touch screen control system and PLC, can make the experiment more automaticly and easier to extract data; and provide the combustion at the angle of 90°, and 45 °60 ° with independent test procedures;



Standard:

CCAR-25 Appendix F of the first part of b 4 and 6,7 items

FAA.FAR.25.853 American Airlines management organized - transport aircraft - cabin interior of standards



Feature:

1.The tank is painted and equipped with viewing window;

2. The chamber dimensions: 800mm x 450mm x 640mm;

3. The automatically electronic ignition;

4. Ignition timing can be arbitrarily set around 0 ~ 99.99 seconds, continued burning time and flame time can be automatically recorded and digitally displayed;

5, The flame height can be adjusted;

6. The "push-pull" fixture;

7. The burner is located at the sliding track, easily operated, when pushed to the combustion position, automatic timing.

8. Pin valve can precisely control the gas flow and adjust standard flame height around 38.1mm;

9. According to the test samples, multiple samples holder can be chosen; customizing BWF sample size and sample holder.

10. Brand pressure gauge and pressure regulator can accurately adjust the gas pressure;

11. Bunsen burner tube inner diameter is 9.5mm; the bottom of sample must be higher than the light of 19.1mm

12.Thermocouple can test the maximum flame temperature about 1000 ºC; flame kerne temperature must be higher than 843 ºC

13.The ignition time can be set freely and the buzzer can remind people when the time is over;

14. PLC microcomputer control system with touch screen can make the experimental process more automaticly and the data can be automatically recorded and stored;



Specification:

Ignition timing	0 to 99.99 seconds set arbitrarily
After flame time and anti flaming time recorder	0 ~ 99.99 seconds, accuracy ± 0.01 seconds
Flame height measuring device	flame height ruler is about 38.1mm
Gas	methane, propane or butane or liquefied petroleum gas or other flammable gases
Power supply	AC220V, 50Hz, 50W
Weight	about 70kg



Our Company:

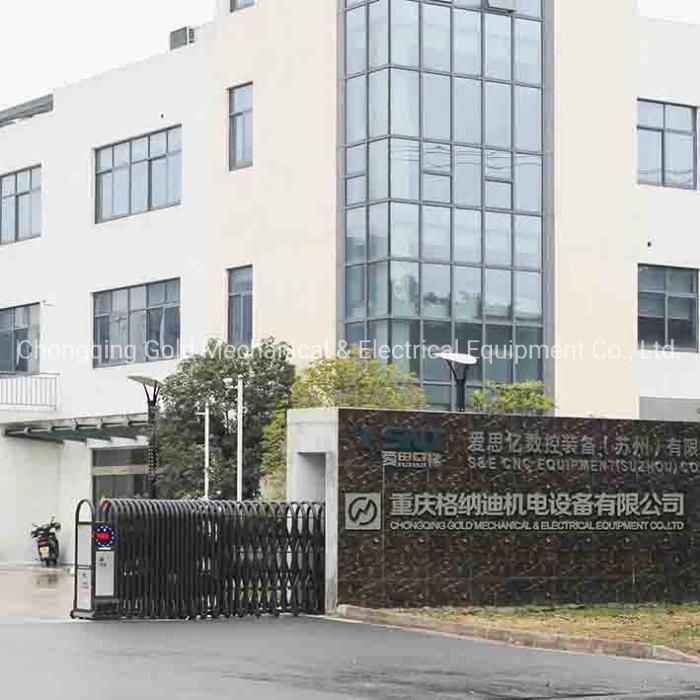

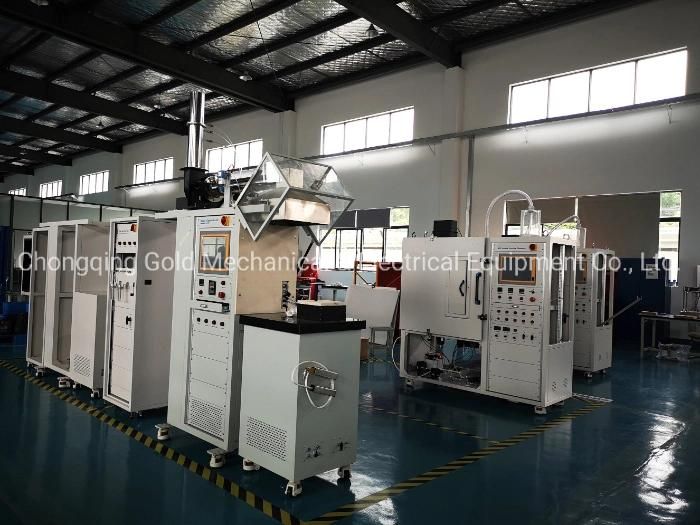

Since 2008, Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd. has developed 70 kinds of fire testing instruments and served for many industries such as building materials, aviation, rails, IMO, wire & cable, safety protection and so on.

Our mission is to provide reliable products to our customers to meet their requirements of testing, R&D and quality control. In addition, Gold insists for high-quality standard in niche markets and targets to minimize the gap between Chinese local products and imported products.

We work with trust, honesty and a sense of responsibility, so the quality and service are always our advantages among all competitors.
