• Model NO.：GDHX-9500
• Weight：0-100Kg
• Power Source：Hand set:No.5 AA alkaline batteries(2PCS)(I.5V)
• Oil Cylinder Position：no
• Detectable Voltage Range：10V-500kV
• Wireless Transmission Distance：Range of visibility 150m
• Working Conditions：0-40ºCordm;C; ≤85% Rh
• Working Frequency：45-60Hz
• Accuracy：Self-calibrating ≤±3°
• Sampling speed：10 times,s
• Auto power off settings：0-999s can be set by user self
• In-phase：≤20°
• Out-phase：>20°
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9031809090
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. GDHX-9500 Weight 0-100Kg Power Source Hand set:No.5 AA alkaline batteries(2PCS)(I.5V) Oil Cylinder Position no Detectable Voltage Range 10V-500kV Wireless Transmission Distance Range of visibility 150m Working Conditions 0-40ºCordm;C; ≤85% Rh Working Frequency 45-60Hz Accuracy Self-calibrating ≤±3° Sampling speed 10 times/s Auto power off settings 0-999s can be set by user self In-phase ≤20° Out-phase >20° Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9031809090 Production Capacity 2000PCS/Year

Product Description

Product Description

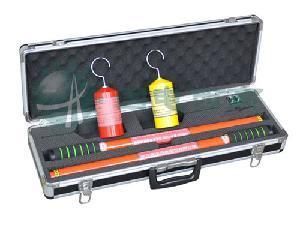

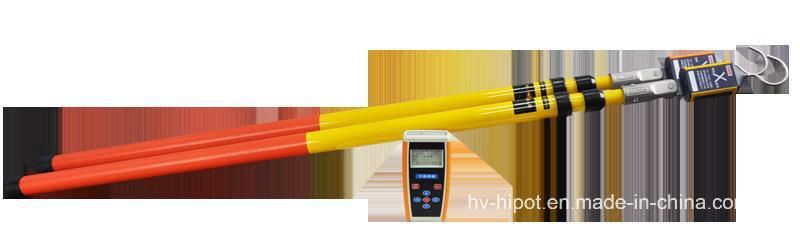

GDHX-9500 Phase Detector is mainly used in electric power lines, phase and phase sequence calibration in substation, with main functions including electrical inspection, phase calibration and phase sequence measurement. It uses double shielding and brand new digital circuits, with strong anti-interference, accorded with EMC standards, suitable for various electromagnetic interference situations.

The high voltage phase signal of measured lead will be transmitted directly after treatment, the handset will receive and make phase comparison, determine the results after phase detection, real-time display phase angle difference and vector.It uses wireless transmission technology, safe and reliable, fast and accurate, suitable for using at different voltage levels (10V-500KV). When checking the grid structure, it is able to accurately identify the relative phase of different leads for the three-phase connected line, without any electrical connection between two measurement components, which makes the application of the measurement device very flexible and safe.

Features

• Date and time setting: date and time adjustment, easy for users to browse, view the historical data.
• Back-light time setting: normally on, normally off, 0-999s can be set by user.
• Auto power off setting: 0-999mins can be set by user.
• Field calibration function: on-site calibration for measured lead, ensure the accuracy of phase angle.
• Multiple mode design, with strong applicability, more safe and convenient.
• Unique human-computer interaction interface, simple operation.
• FCC antenna design, the signal is stronger and easier to penetrate the blocking of wall, door or barrier.
• Double shielding, strong an-ti interference, in full accordance with EMC standards.
• Charts and data display, more convenient and easy to read.
• Qualitative measurement, display by sound and light signal.
• Quantitative measurement, real-time display phase angle difference, error≤5°.
• Phase sequence calibration, positive phase sequence, negative phase sequence (120°, 240°).

Specifications


Test voltage	10V-500kV, suitable for different voltage level.
Accuracy	Self-calibrating error ≤±3°.
Sampling speed	10 times/s.
In-phase	≤20° is considered as in-phase (phase threshold within 0-90°, can be set by user. The system default is 20°.)
Out-phase qualitative	>20° (phase threshold within 0-90°, can be set by user. The system default is 20°.)
Transmission distance between handset and X, Y detector	X≤150m, Y≤150m.
