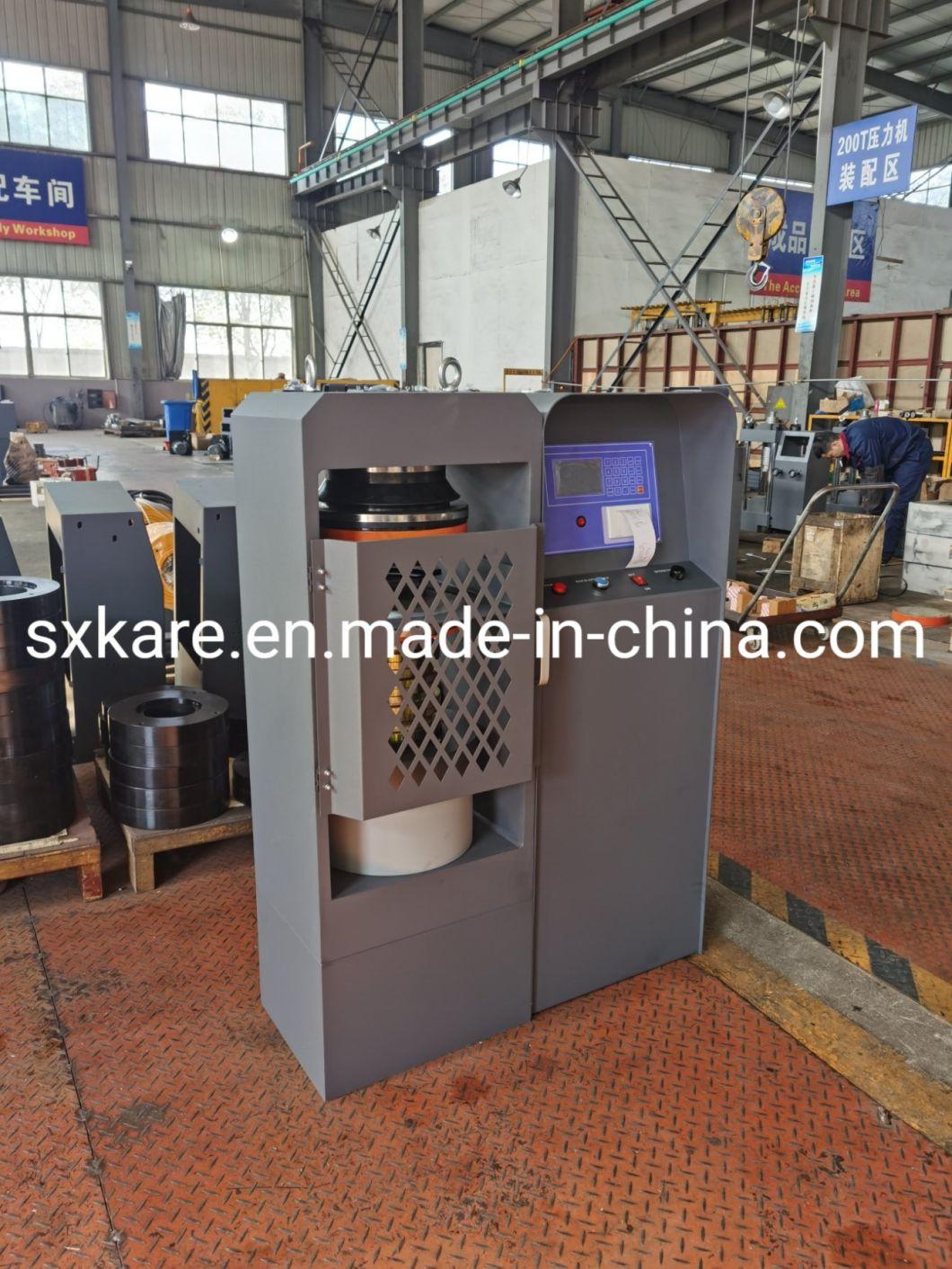

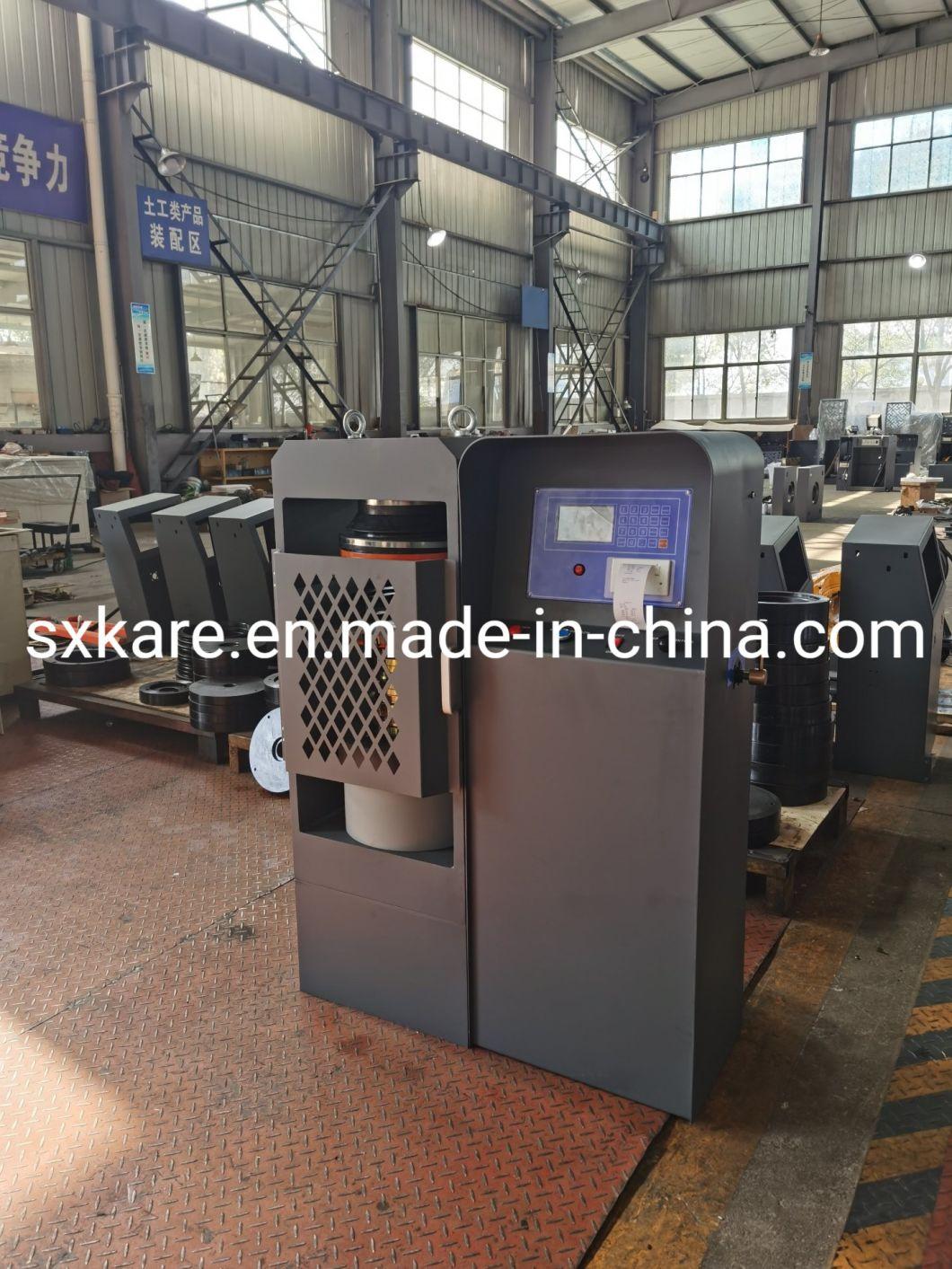

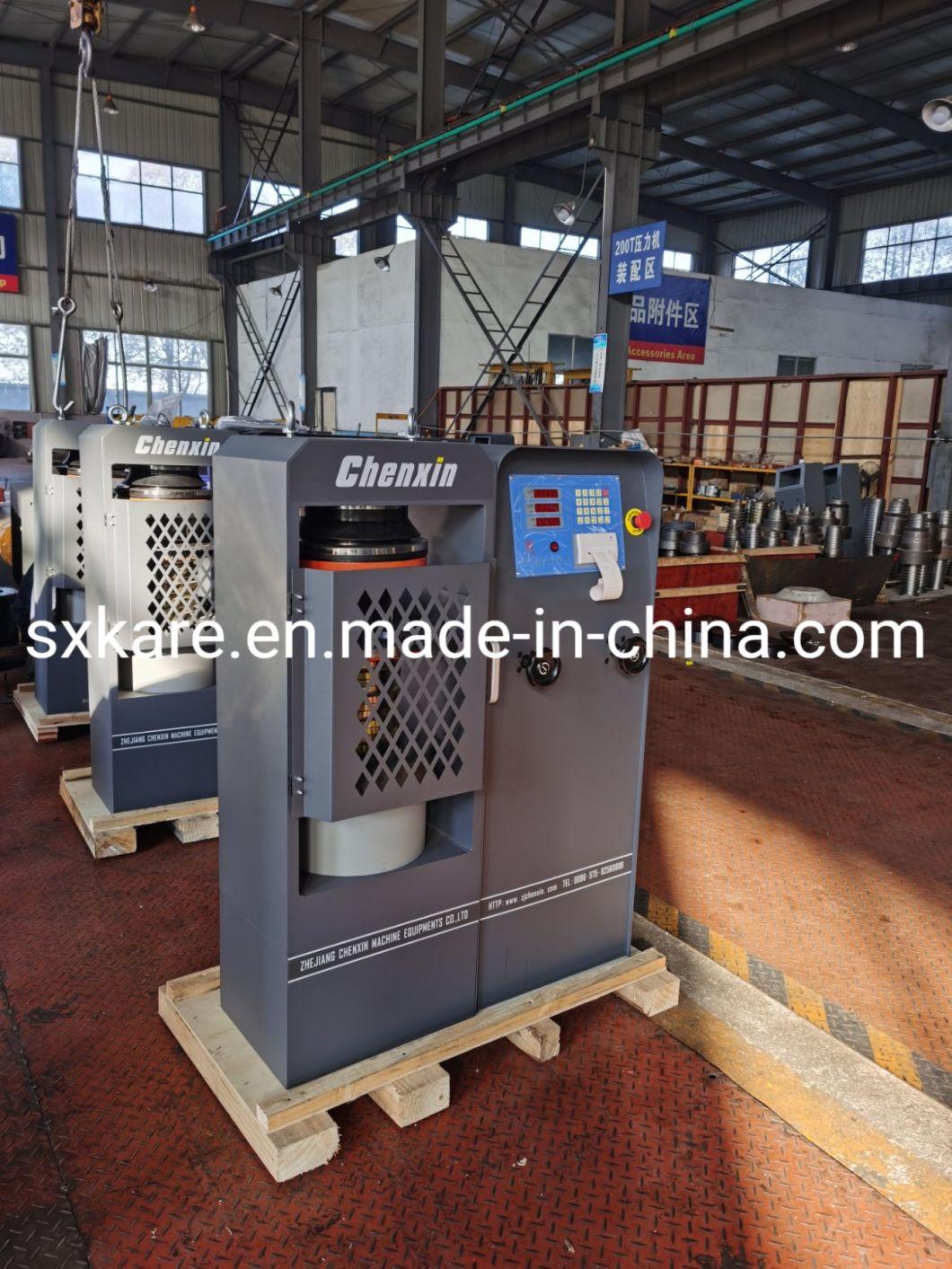

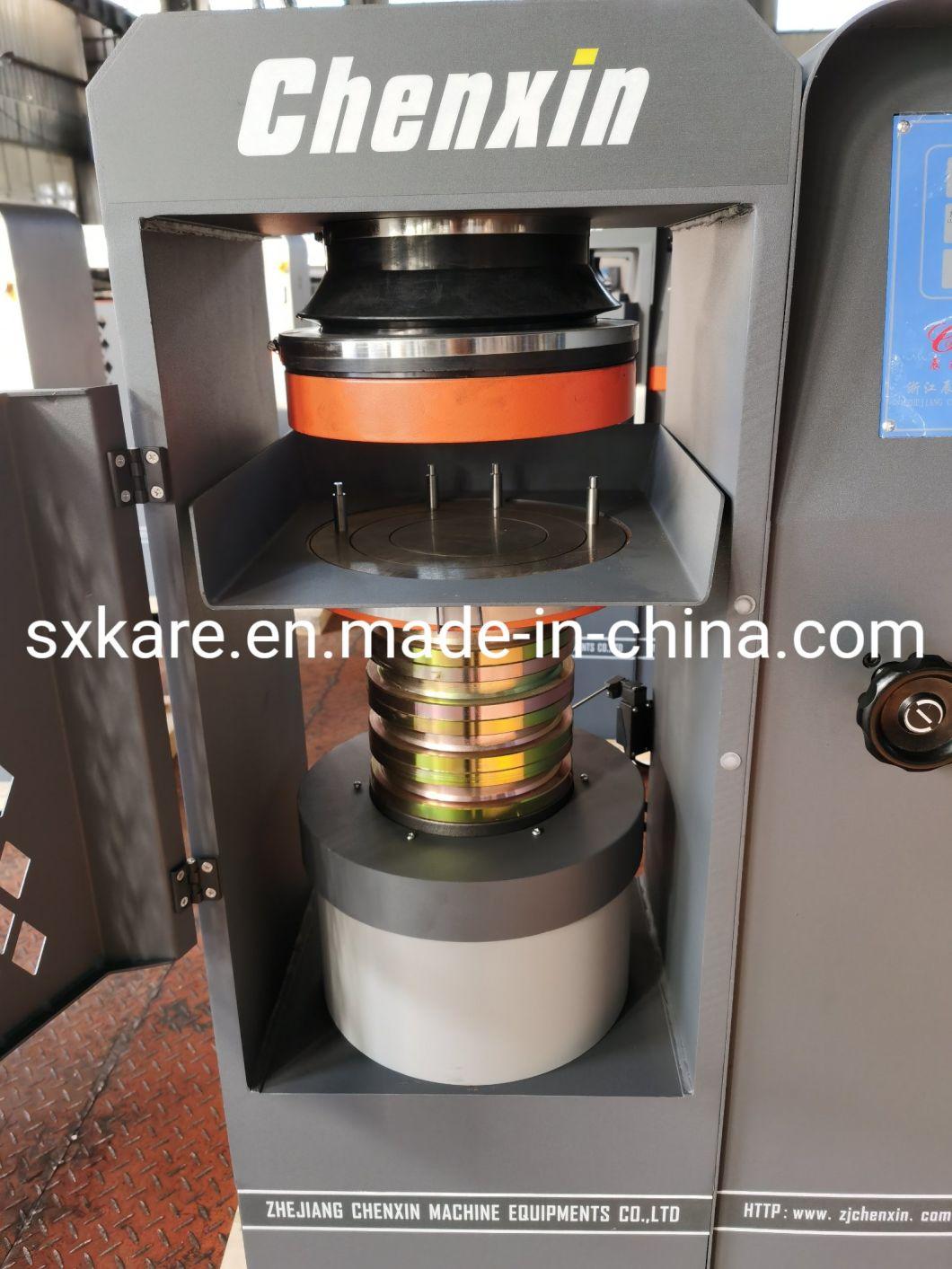

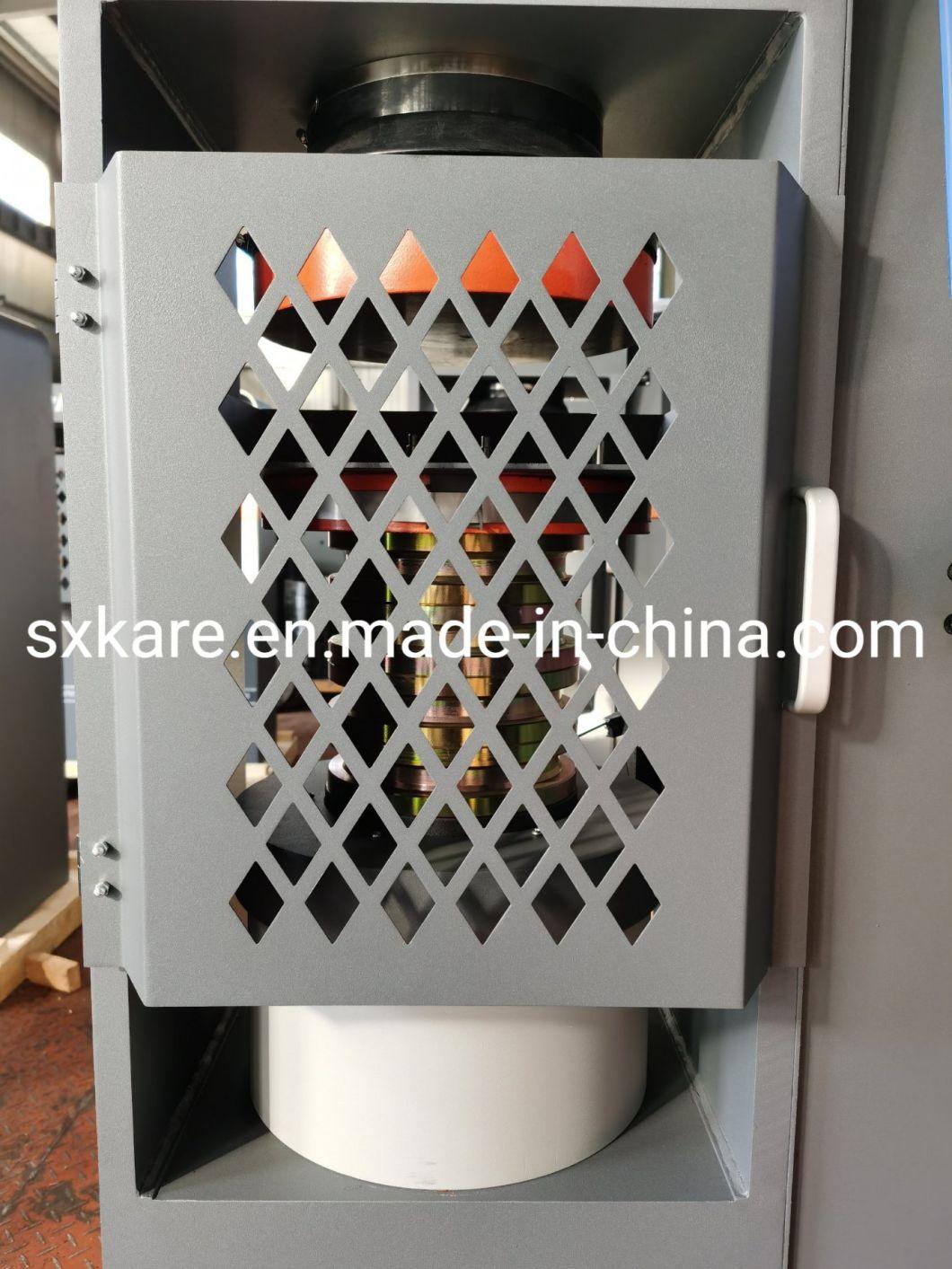

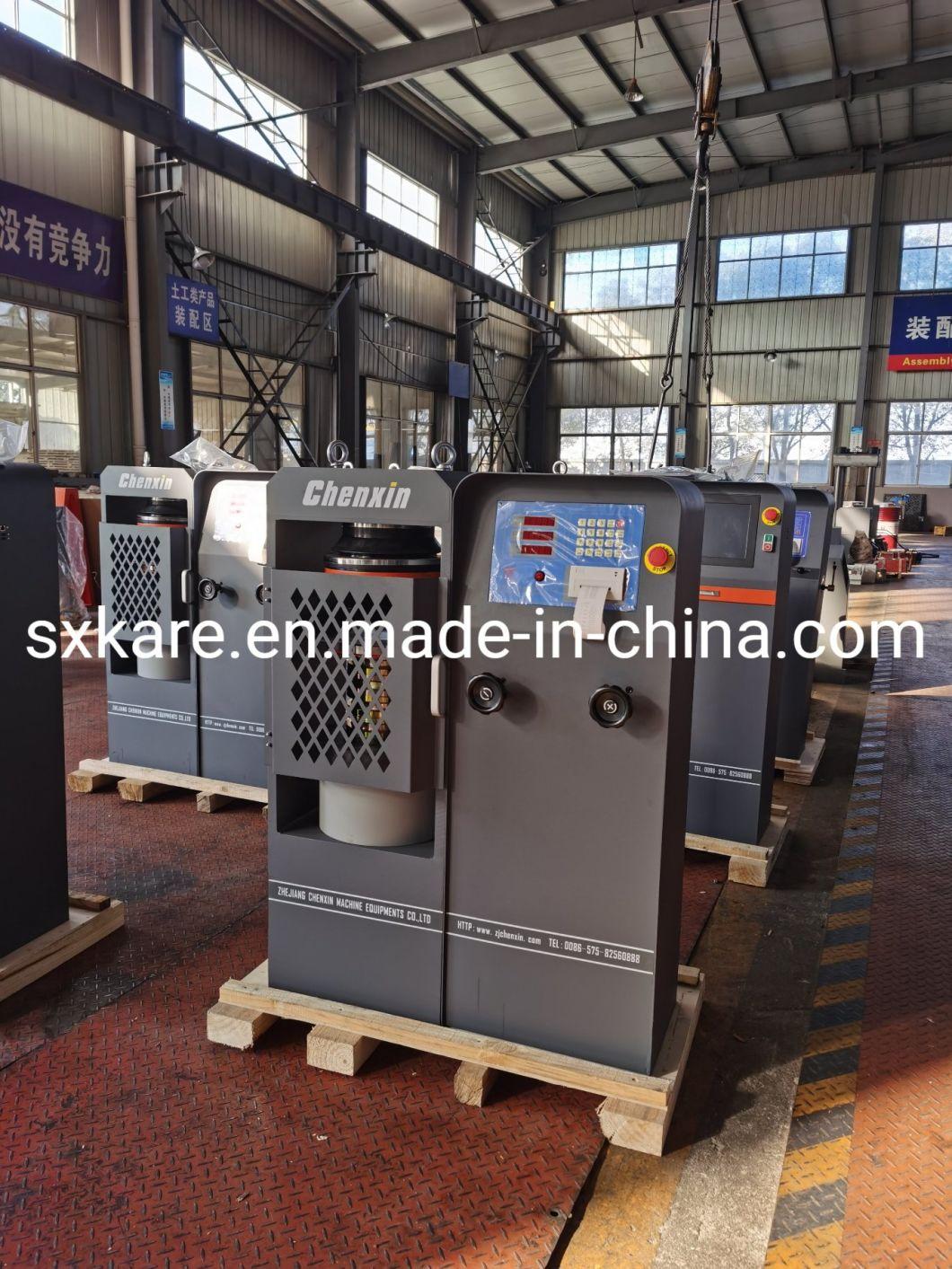

Digital Display Pressure Testing Machine (YE-2000EC)
SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.- Type：Compression Testing Machine
- Maxcapacity：2000kn
- Accuracy Grade：1
- Load Way：Mechanical Load
- Loading Method：Static Load
- Display：Digital
Base Info
- Model NO.：CXYE-2000EC
- Control：Manual Control
- Weight：500-1000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Transport Package：Ploywooden Case
- Origin：Zhejiang, China
- HS Code：9024800000
- Production Capacity：50sets,Month
Description
Basic Info.
Model NO. CXYE-2000EC Control Manual Control Weight 500-1000Kg Power Source AC380V Oil Cylinder Position Under Transport Package Ploywooden Case Origin Zhejiang, China HS Code 9024800000 Production Capacity 50sets/MonthProduct Description
YE-2000EC Digital Display Pressure Testing MachineThis product is suitable for testing the compressive strength of concrete, stone and building materials in the laboratory. First class precision, digital display, automatic printing test results. Equipped with 232 serial port to achieve data transmission function. It meets the patent requirements of ZL 2010 2 0581630.X, ZL 2012 2 0300276.8, ZL2014 2 0460320.0, ZL 2014 3 0288687.4, ZL 2015 2 0079519.3, and so on. It also meets the requirement of GB/T 50081 Test method for mechanical properties of ordinary concrete, GB/T 3159-2008 Hydraulic universal testing machine, JJG 139-2014 Verification regulation of tension, pressure and universal testing machine, and GB/T 2611-2007 General technology of testing machine.
| Maximum test force | 2000kN |
| Measuring range | 200-2000kN |
| Range | Gearless, equivalent to four |
| Force indicating relative error | ≤±1% |
| Distance between side walls | 400mm |
| Maximum distance between platen | 320mm |
| Platen size | φ295mm |
| Piston direction | Single way |
| Piston stroke | 80mm |
| Test space | 340*400*116-316mm |
| Indication accuracy | ≤±1% |
| Motor power | 0.75KW |
| Voltage | 380V |
| Dimension | 920*470*1238mm |
| Weight | 800kg |
