• Model NO.：HTFZ-III
• Transport Package：Wooden Case or Carton
• Specification：see details
• Trademark：HV TEST
• Origin：China
• HS Code：9030849000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. HTFZ-III Transport Package Wooden Case or Carton Specification see details Trademark HV TEST Origin China HS Code 9030849000 Production Capacity 200 Sets Per Month

Product Description

Product overview
Lightning arrester is an important electrical equipment to protect power equipment from overvoltage hazards in the power grid. Its operation status will directly affect the safety of the power system. Usually surge arrester monitors the action and leakage current of surge arrester through surge arrester monitors. Due to poor sealing, the surveillance device may enter moisture or moisture in operation, causing internal components to rust, or other reasons, the counter of surveillance device can not operate normally, and the indication of leakage current is inaccurate. Therefore, the Regulation stipulates that surge arrester monitors should be inspected once a year.
The reliability of counter operation is very important for power system. It is an important parameter to record the statistics of lightning strike times of arrester in normal operation. It can provide an important basis for the staff of power system to test arresters.

Products features
1. Arrester Discharge Counter Calibrator with Charging Battery Produced by Our Company
2. Small size and light weight
3. The measurement process is safe, fast and accurate.

Technique parameters

Output Voltage	DC1600V ±5%
Interval time	≥30s
Power supply	DC12V / AC220V±10% 50Hz±2%
Impulse Current	≥100A(8/20μs)
Volume	380×250×180mm
Weight	3kg

Common problem
1. Is your company a sales company or a manufacturer?
Wuhan Huatian Electric Power Automation CO., LTD.is an industrial and trade enterprise, with its own  factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.

2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

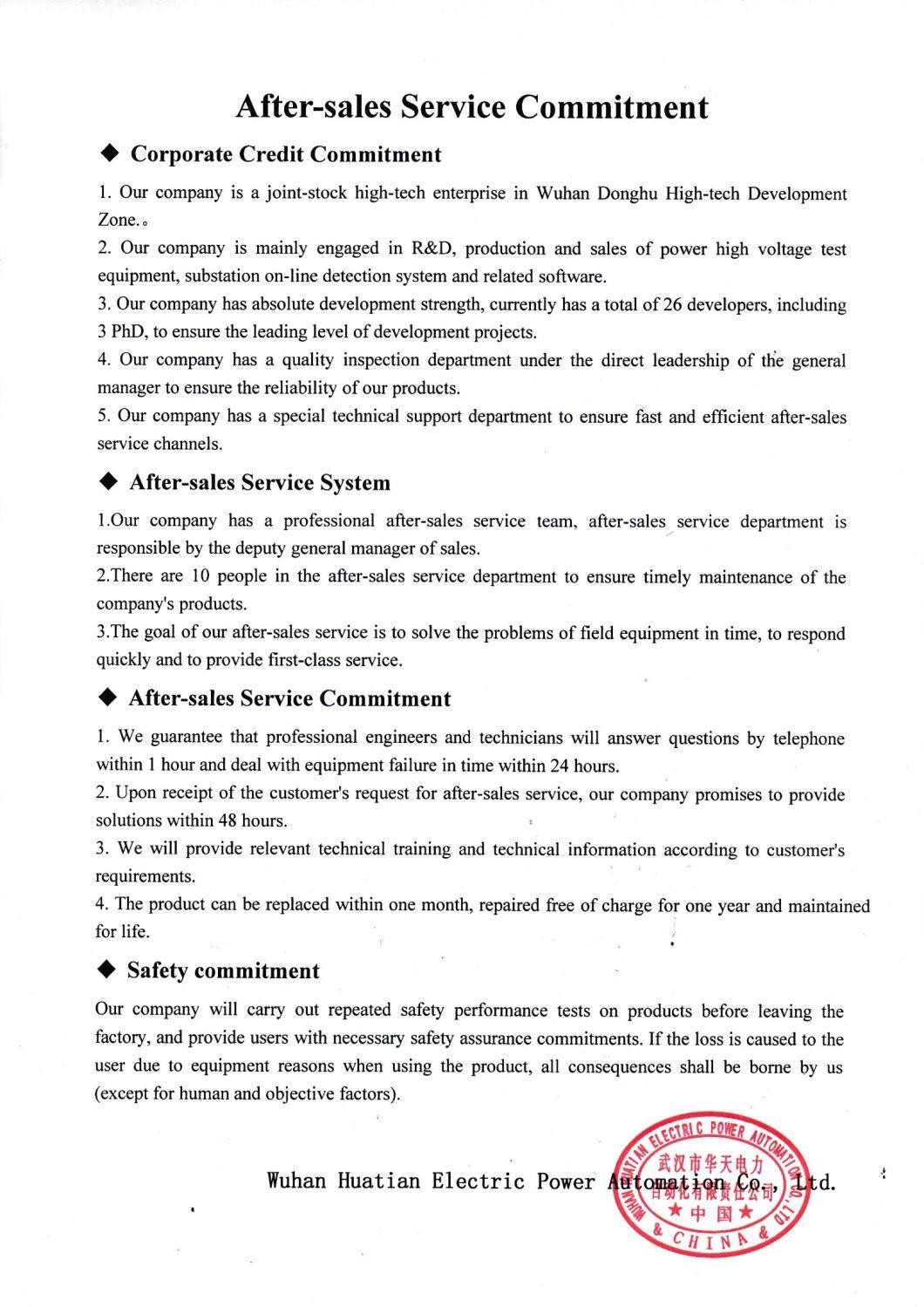

4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
