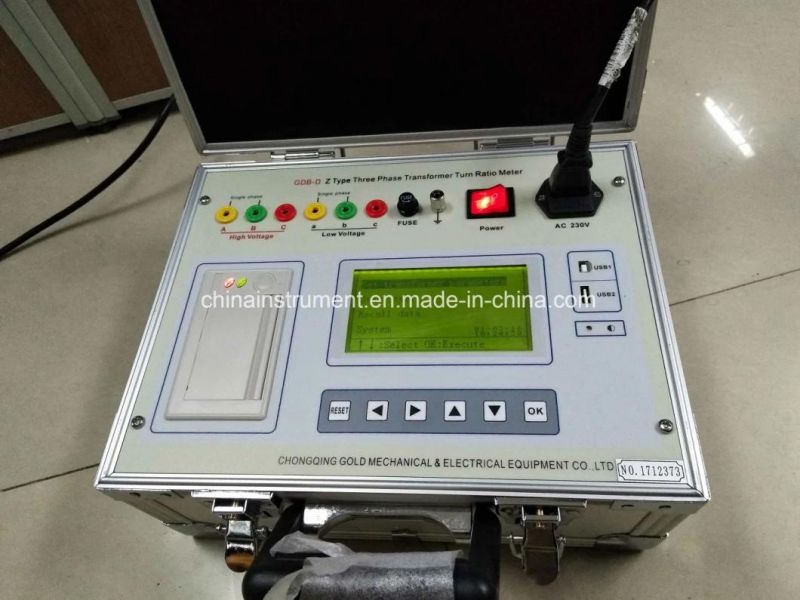

Z Type Three Phase TTR Meter Transformer Turns Ratio Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Turns Ratio Range：0.8-10000
- Group Testing Range：1-12
- Turns Ratio Accuracy：0.2% (180V: 0.8~1000 )0.5% (180V: 1000~10000)
- Turns Ratio Resolution：0.0001
- Power Input：220V±10% 50Hz±1Hz
- Working Temperature：-20ºC~40ºC
Base Info
- Model NO.：GDB-D
- Relative Humidity：≤85% No Condensation
- Dimension：325mm*278mm*188 mm
- Weight：7kg
- Product Name：Transformer Turns Ratio Tester
- Transport Package：Standard Plywood Case
- Specification：Transformer Turns Ratio Tester
- Trademark：GOLD
- Origin：Chongqing
- HS Code：9031809090
- Production Capacity：50 Sets, Month
Description
0.2% (180V: 0.8~1000)
0.5% (180V: 1000~10000)
0.2%( 0.8~200)
Success Case:
