New Model Concrete Flow Table Test Set

Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.
  • Transport Package：Plywood Case
  • Specification：700x700x200mm
  • Trademark：C-TECH
  • Origin：China Mainland

Base Info

  • Model NO.：54-C0151,A
  • HS Code：90248000
  • Production Capacity：500 Sets,Month

Description

Basic Info.

Model NO. 54-C0151/A HS Code 90248000 Production Capacity 500 Sets/Month

Product Description

Manual Concrete Flow Table Test Set

Flow Table test will be of interest to those involved with concrete having a high workability. The test determines the flow index as an arithmetic mean of the diameter of the specimen after working on a flow table.

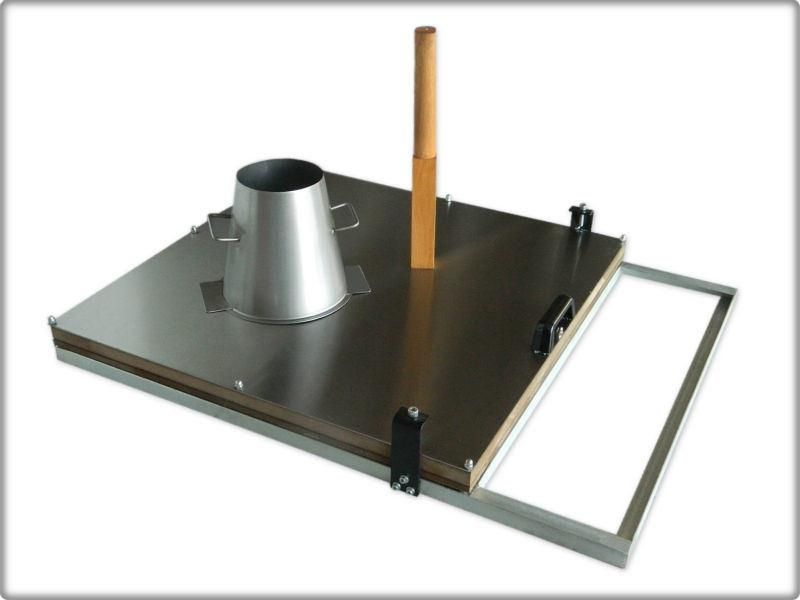

54-C0151/A Concrete flow table consists of a double METAL table measuring 700x700 mm and hinged at one side. The top table is covered with a flat metal plate 2 mm thick, inscribed, and protected against corrosion. The galvanised steel cone has a top 130 mm dia., base 200 mm dia., and is 200 mm high. Supplied complete with wooden tamping rod.

Weight appox: 25 Kg
New Model Concrete Flow Table Test Set


Spare parts
54-C0151/1 Flow cone top 130 mm dia., base 200 mm dia., 200 mm high
54-C0151/2 Wooden tamping rod
