• Model NO.：34-0300,01
• HS Code：90248000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. 34-0300/01 HS Code 90248000 Production Capacity 100 Sets/Month

Product Description

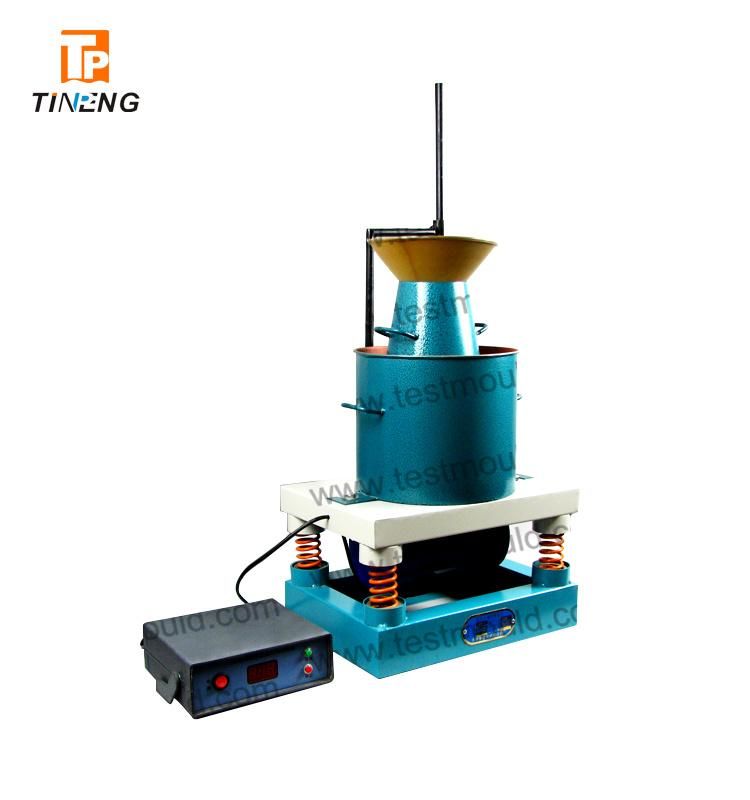

Electric Concrete Vebe Consistometer

    This vebe test is a variation of the simple slump test and subjects the concrete to vibration after removal from the slump cone. The time taken for the concrete to be recompacted is taken as a measure of workability. The small vibrating table operates at a fixed amplitude and frequency, and in the test a plastic disc is placed into contact with the upper surface of the concrete.

    The test is completed when the lower surface of the disc has been completely coated with cement grout.



Specifications:
Model 34-0300/01
Amplitude(with empty container): 0.5mm
Vibrating frequency: 0.5Hz
Counter weight when VB Test: 2750g±20g
Counter weight when VC Test: 7500g±50g
Counter weight when on modified VC Test: 8700g±50g
Slump cone size (Top Dia. x Bottom Dia. x Height): 100x200x300mm
Power: 380 V, 50Hz, 250 W
Net weight: 30kg
