• Model NO.：HTPV-08
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Effective Test Size：230*110cm
• Product Standard：IEC 61215, UL1703, IEC 61646
• Machine Table Exterior Size：L 320 * D 180 * H 195 Cm
• Calibrator：350 Kg
• Materials：Stainless Steel and Aluminum Alloy
• Sucker Diameter：120 mm
• Transport Package：Wooden Case
• Specification：IEC 61215-2005, IEC 61646-2008, IEC 61730
• Trademark：HOTOTECH
• Origin：Dongguan
• HS Code：9013809000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. HTPV-08 Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Effective Test Size 230*110cm Product Standard IEC 61215, UL1703, IEC 61646 Machine Table Exterior Size L 320 * D 180 * H 195 Cm Calibrator 350 Kg Materials Stainless Steel and Aluminum Alloy Sucker Diameter 120 mm Transport Package Wooden Case Specification IEC 61215-2005, IEC 61646-2008, IEC 61730 Trademark HOTOTECH Origin Dongguan HS Code 9013809000 Production Capacity 100 Sets Per Month

Product Description

IEC61215 standard Solar panel PV Module Mechanical Load Tester

IEC61215 standard solar panel PV Module Mechanical Load Standard
According to IEC 61215,UL1703,IEC 61646

IEC61215 standard solar panel PV Module Mechanical Load Purpose
This tester is to determine the ability of the module to withstand wind, snow , static or ice loads

IEC61215 standard solar panel PV Module Mechanical Load Tester Funture
1.Machine table exterior size:approx 320*180*195cm (W*D*H)
2.Test positive load the max 5400Pa, reverse load the max 2400 Pa
3.Aluminum extrusion structure, the platform and support are not deformed under stress state
(aluminum surface using electrophoretic coating process, Guaranteed not to change color )
4.The max test size:120*240cm
5.Calibrator:350kg
6.Cylinder quantity:4 groups , 8 pieces
7.Cylinder outer diameter:80mm
8.Cylinder single group the max pressure >6 bar
9.Cylinder single group the max out force>300kg
10.Cylinder telescopic stroke:150mm
11.Sucker quantity:8 groups, 32 pieces
12.Sucker diameter:120mm
13.Each cylinder is equipped with a vacum pressure display
13.The space of Between two sucker:120~400mm

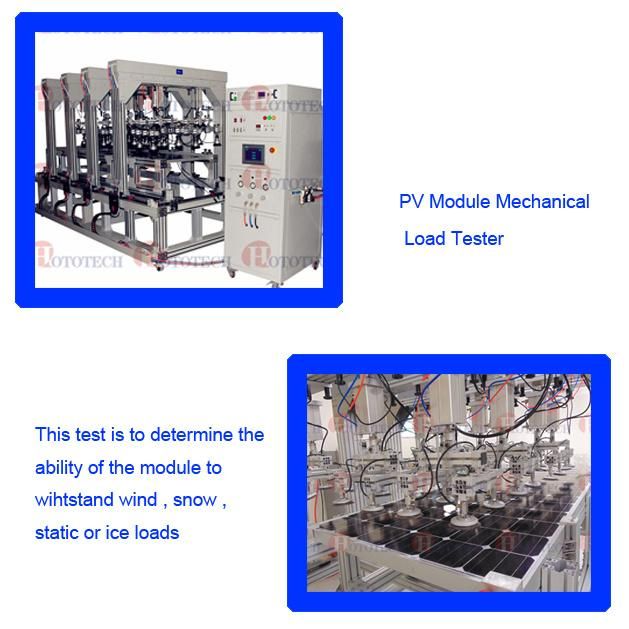

IEC61215 solar panel PV Module Mechanical Load Tester Pictures show




Company instroduction
Dongguan Hong Tu Instrument co.,ltd established in 2006 year , specialized in developing and producing PV module testing machine and helmet impact testing machine , We have firm connections and full cooperation from China's National Third-party Quality Inspection and Notarization Center on producing and developing high-precision testing machines.


Certificate









Model	HTPV-08
The biggest test size	300*200cm
Effective test size	230*110cm
Pressure control precision	±3%
Material	aluminum, assembly by rectangular fittings
Measurable area range	80*50cm _200*120cm (L*W) arbitrary adjustable
