• Model NO.：HD-E711-2
• Power Source：AC220V
• Studio Dimension (W*D*H)：600*600*800mm(W*D*H)
• External Dimension (W*D*H)：1200*1100*1800mm(W*D*H)
• Inner Chamber Material：SUS 304 # Stainless Steel, Anti-Rust, Easy to Clea
• Outer Chamber Material：Stainless Steel
• Humidity Range：55%-90%
• Delivery Time：15 Days After Receive The Deposit

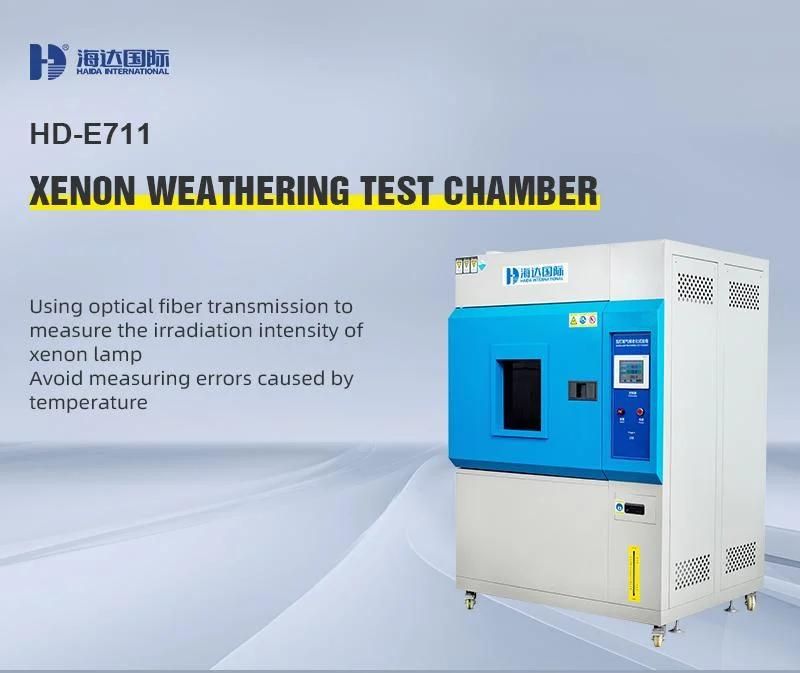

• Model：HD-E711-2 Xenon Arc Testing Chamber
• Xenon Lamp Power：6.5kw

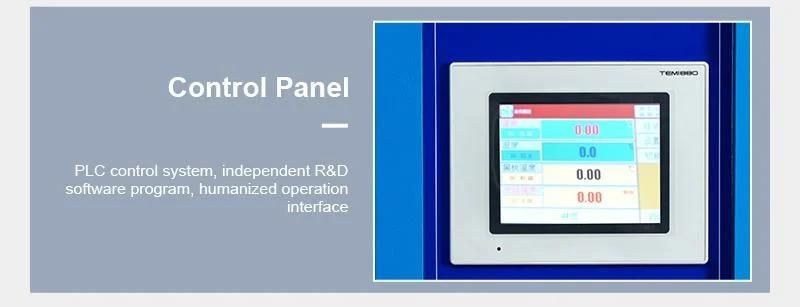

• Control System：Siemens PLC Controller, Auto Display Irradiance
• Filter：Borosilicate Filter
• Transport Package：Strong Wooden Case
• Specification：ISO 4892-2: 2006
• Trademark：Haida
• Origin：Dongguan, China
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-E711-2 Power Source AC220V Studio Dimension (W*D*H) 600*600*800mm(W*D*H) External Dimension (W*D*H) 1200*1100*1800mm(W*D*H) Inner Chamber Material SUS 304 # Stainless Steel, Anti-Rust, Easy to Clea Outer Chamber Material Stainless Steel Humidity Range 55%-90% Delivery Time 15 Days After Receive The Deposit Model HD-E711-2 Xenon Arc Testing Chamber Xenon Lamp Power 6.5kw Control System Siemens PLC Controller, Auto Display Irradiance Filter Borosilicate Filter Transport Package Strong Wooden Case Specification ISO 4892-2: 2006 Trademark Haida Origin Dongguan, China Production Capacity 150 Sets Per Month

Product Description

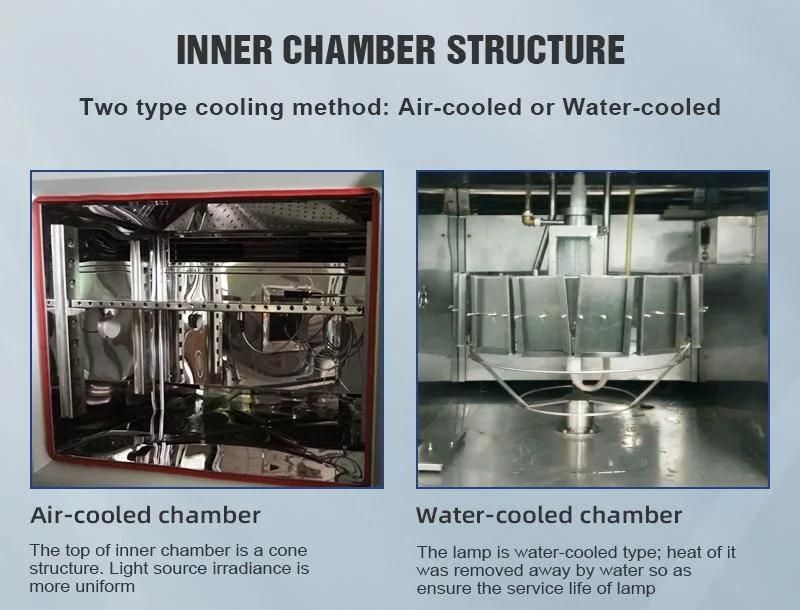

Water Cooled Xenon Arc lamp Weather-resistant Test Chamber/Testing Machine
Product Description:
The xenon arc lamp simulates the whole sunlight spectrum to reproduce the destructive light waves in different environments. Equipped with the appropriate filter atmosphere arc lamp to maintain at that time, the ultraviolet radiation is similar to the sun and the spectral energy distribution of visible area, scientific research and in the fields of aviation, automobile, home appliances, the necessary test equipment, this equipment for scientific research, product development and quality control to provide the corresponding environmental simulation and accelerated aging test. Used for schools, factories, research and other units.


Xenon arc Testing Chamber is used for the selection of new materials, the improvement of existing materials or evaluating the changes in product formulation that affect product durability. This is an ideal instrument for total Accelerated Light Stability and Weathering Testing; And can be used to test for light stability quickly.



Coincident Standards:
GB/ t1865-97 (2007), GB/ t9344-88, GB/ t16422.2-99, GB/ t2423.24-1995, ASTMG155, ISO10SB02/B04, SAEJ2527, SAEJ2412, etc

Product Application:
Automobile industry, communication industry, construction industry, aerospace, naval ships and ships, electronics industry, clothing industry, luggage industry, furniture industry, etc



Main Parameter:
(The above parameters are machine standard parameters and can be customized according to your requirements)

Studio size (mm)	750*500*600mm

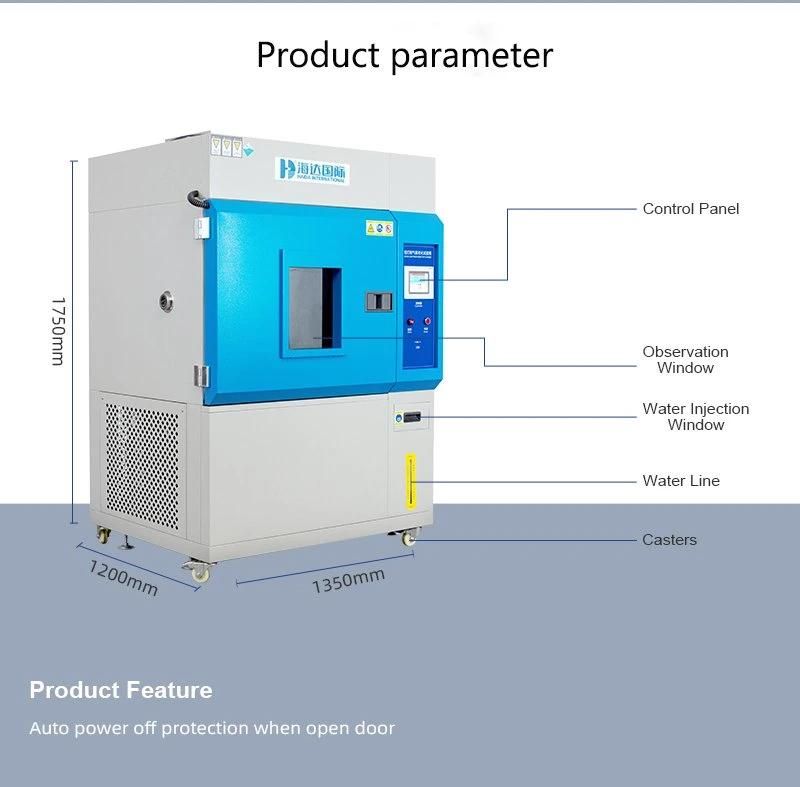

External size (mm)	1350*1200*1750 (length * depth * height)
Temperature range	normal temperature ~80ºC
Humidity range	light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable
Experimental blackboard temperature	adjustable from 45ºC to 100ºC (deviation ±3ºC)
Temperature fluctuation	≤±0.5ºC
Temperature uniformity	≤±2.0ºC
Humidity fluctuation	≤±2%
Glass filter	borosilicate glass

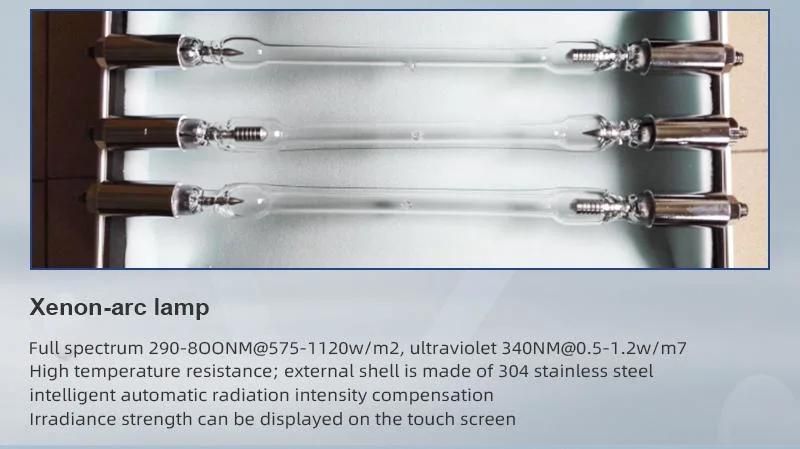

Xenon light source	imported air-cooled xenon arc light source
Xenon lamp power	2.5kw, xenon lamp power :2.5kw ×3 = 5.4kw, life :1200 hours
Rainfall time	1 ~ 9999 minutes, continuous rainfall adjustable
Rainfall cycle	1 ~ 240 minutes, interval (off) rainfall adjustable
Water spray nozzle aperture	Ф 0.8 mm (return hose ultra-fine filters to prevent the nozzle blocking)
Spraying period (spraying time/no spraying time)	18min/102min or 12min/48min(spraying time/no spraying time) spraying pressure0.12 ~ 0.15 Mpa
Water pressure	0.12 ~ 0.15kpa
Sample rack	sample tray size :75*300mm
Continuous adjustable time of illumination cycle	1 ~ 999 hours
Xenon lamp spectral wavelength	290nm ~ 800nm adjustable, irradiation range: 500W ~ 1200W/m2(adjustable).
Distance from the arc center to the sample	250 ~ 300mm
Effective exposure area	6400Cm2
Heating power	4.5kw
Humidifying power	3KW

Material of test chamber:

1) Exterior material	SUS 201 double layer stainless steel plate

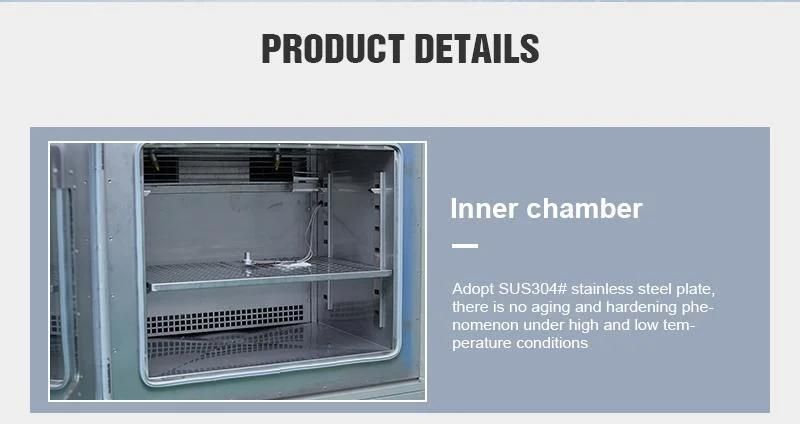

2) Inner material	SUS 304 matt stainless steel plate
3) Thermal insulation material	rigid polyurethane foam + high-efficient thermal insulation glass wool
4) Sample frame	all stainless steel, samples fixed position adjustable, standard stamping forming sample
5) Door	silicone rubber sealing device

Refrigeration system:
(1) Refrigeration system and compressor
1. Refrigeration compressor: the original imported French "Taikang" fully enclosed refrigeration unit.
2. Cooling method: air cooling
3. Refrigerant: environmental protection refrigerant
4. Main refrigeration accessories: Japan "Arugong" solenoid valve; American "Emerson" drying filters, etc.
Excellent quality of domestic and foreign well-known brands of air-cooled condenser and fin multi - section evaporator.
(2) Advantages of refrigeration system
1. Improved lubrication performance and lower piston temperature bring greater reliability;
2. Streamline body to improve airflow management; Reduced pressure, improved refrigeration efficiency;
3. Top unloading valve provides continuous minimum discharge line pulse;
4. SENTRONIC provides reliable lubrication protection system;
5. Use of environmentally friendly refrigerants R23, R404A (excluding CFCS) which are not prohibited by the Montreal convention or the amendment to London.

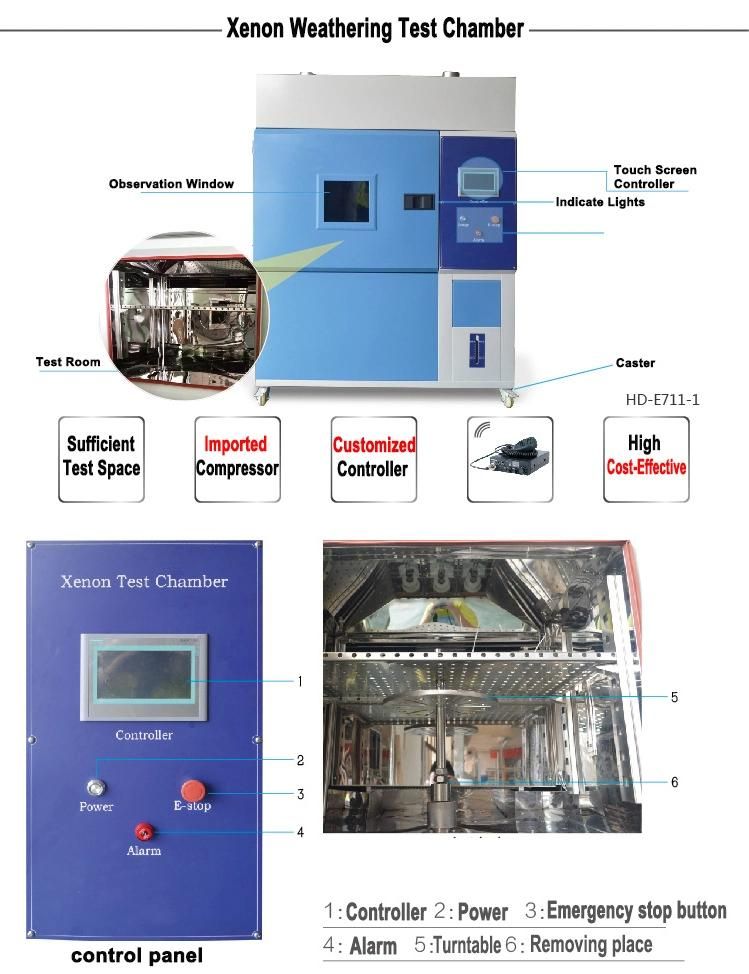

Equipment details:




Company Introduction:
Haida, as a large-scale manufacturerfocused on physical testing instruments, the mission of "Deliver the best testing equipment to our customers".
Haida products are widely used in various scientific researches, quality inspection organizations, academic exploration and other major fields, and products in line with GB, ISO, UL, ASTM, EN, JIS, TAPPI, DIN, BS and other domestic and international standards.


Packaging Details:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
