• Model NO.：DK-G48,SF100
• Discharge Current：0.5-10A
• Charge Current：0.5-6A
• Loop Number：1-50 Times
• Transport Package：Seaworthy Packing
• Specification：Product size: 2160*400*170 mm
• Trademark：DK
• Origin：China
• HS Code：9030849000
• Production Capacity：1000 Pieces,Year

Basic Info.

Model NO. DK-G48/SF100 Discharge Current 0.5-10A Charge Current 0.5-6A Loop Number 1-50 Times Transport Package Seaworthy Packing Specification Product size: 2160*400*170 mm Trademark DK Origin China HS Code 9030849000 Production Capacity 1000 Pieces/Year

Product Description

Description:

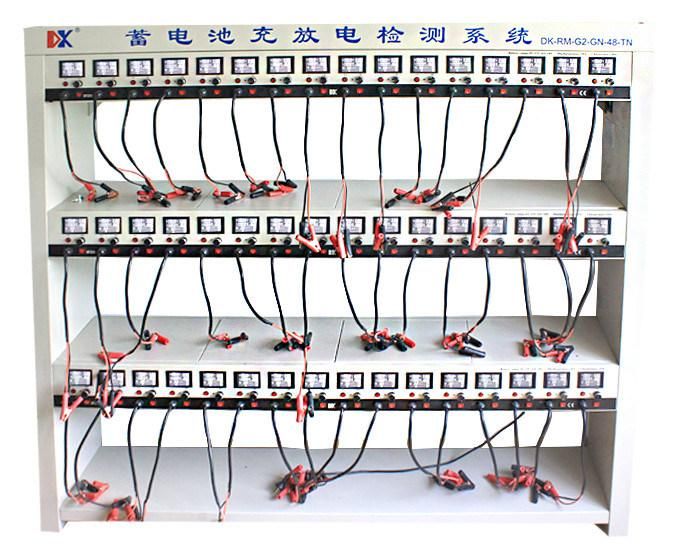

·DK-G48/SF100 is a high precision capacity detection system consisted of SF100 modules with 48 channels to meet the requirement of mass detection, which is integrated with charge & discharge, auto-cycle detection, it can set the voltage and current of charge and discharge upon the requirements, and has automatic charging and discharging cycle function. High precision and easy operation. PHOTO OF DK-G48/SF100

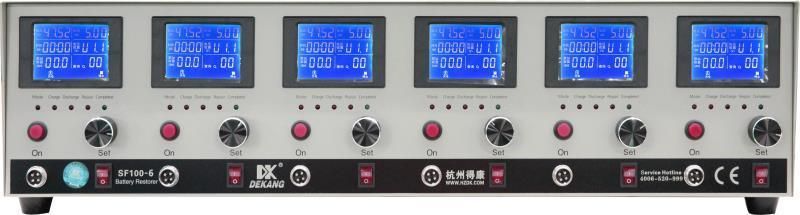

PHOTO OF SF100




 Application:

Battery Type	Specification	Capacity
Lead-acid batteries	6V/12V/16V/18V	<200Ah

 Basic Function:

1.Charge

2.Discharge

3. Auto-cycle

4. Desulfurization(Pulse Repair)

5.Water-replenishing maintenance charge

Technical Specification


Model No.:	DK-G48/SF100
Channel Number:	48
Discharge current accuracy:	+/-0.03A
Discharge voltage accuracy:	+/-0.03A
Charge current accuracy:	+/-0.1A
Charge voltage accuracy	+/-0.05V
The minimum charge voltage	7.0 V
The maximum charge voltage	23V
The transfer condition of charging and floating charge	After reaching the high constant voltage and charge for 3.5h, the system automatically transfer to the floating charging
Discharge current	0.5-10A constant current adjustable
Charge current	0.5-6A constant current adjustable
Loop number:	1-50 times
Discharge terminal voltage:	2.0V-20V adjustable
Charging constant voltage:	7.0V-23V adjustable

Packing Information

Model	Product Size	G.W.
DK-G48/SF100	2160*400*170 mm	185 KG

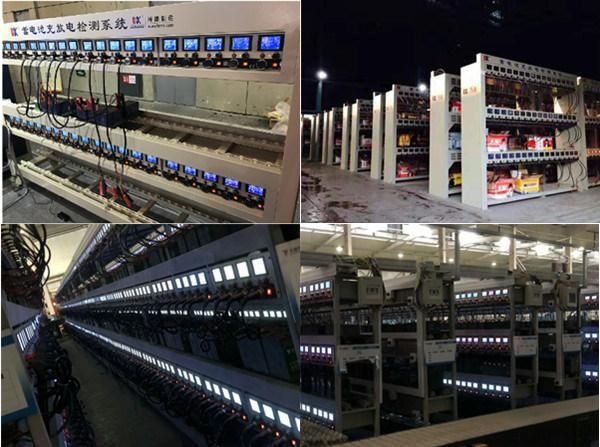

Application at the battery plant


About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Detection Equipment, Charging Station, Shared Mobility Solution. We provide the clients with the complete solution of storage batter service.

Products Category:
Battery Charging & Discharging Detector
Battery Detection and Recovery Equipment
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.

Why choice us?

1. Beginning from 2005, we have achieved the leadership of our industrial
2. Over 15 years of experiences
3. Powerful function and superior performance
4. Professional and strong R&D team.
5. Technical leadership and advantage
6. Advanced production technology and automatic assembly line
7. Market verification and specialized users approval from over 50 countries
8. Rich experience in market operation
9. Professional after-sale service, lifelong after-sale service provided

Delivery
Sample order dispatched by express via DHL, FEDEX,TNT,UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience

Normal order delivered by sea or air as per your instructions.

Warranty:
12-month warranty, lifelong after-sale service and free technology service.

After-sales service
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL,UPS,TNT or FEDEX at our account and guide the user to replace via phone, email or video.

After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy free warranty within half a year from the maintenance date for the same problem.

Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.

Paid service
The conditions in the below not included in the free maintenance range, the company provide with the paid service, kindly note:

1. Do not operate or use as per the manual and cause the damage
2. The instrument was disassembled or repaired by the non-authorized person by our company
3. Unexpected factors or man-made causes the damage, such as the water inflowing, mechanical damage, falling, burning and so on.

EXPO

R & D

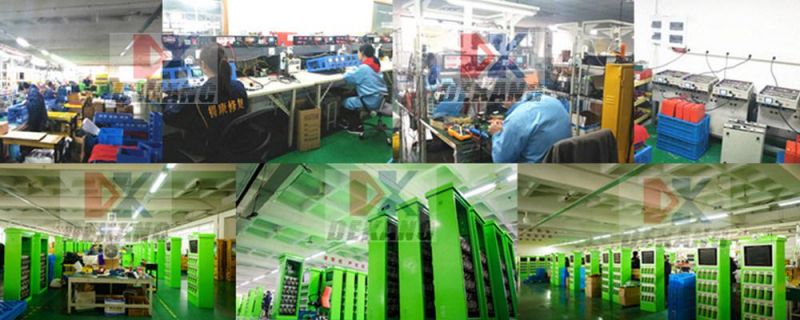

PRODUCTION



DEKANG IMAGES
