Lcz Lcr Meter Ss1062

SanShine Electronics (Xiamen) Technology Co., Ltd.
  • After-sales Service：Online Support
  • Function：Lcz Lcr Meter
  • Display：Digital
  • Usage：Electric Component Tester, Lightning Protection Device Tester
  • Type：Transformer Tester
  • Environment：Room Temperature

Base Info

  • Model NO.：SS1062
  • Warranty：With Warranty
  • Power Source：DC 100V-300V
  • Weight：0-10Kg
  • Installation：Direct Connected
  • Customized：Non-Customized
  • Meas. Level(Voltage)：10mv~1.0V, 10mv,Step
  • Meas. Frequency：40Hz~ 200kHz, 30steps
  • Frequency Accuracy：+_0.01%
  • Base Accuracy：0.10%
  • Power Consuming：Max. 55W
  • Transport Package：Paper Box
  • Specification：SS1062
  • Trademark：SanShine
  • Origin：China
  • Production Capacity：6000sets,Year

Description

Overview Detailed Photos
Lcz Lcr Meter Ss1062Lcz Lcr Meter Ss1062
Lcz Lcr Meter Ss1062Product Description

SS1061SS1063Test parameterPrimary displayL  , C,   R, ZSecondary displayQ  , D  , ESR  , θMeasure. signalMeas. Level(voltage)10mV~1.0V, 10mV/stepMeas. Frequency40HZ~ 200KHZ, 30stepsFrequency accuracy± 0.01%Out impedance100mA± 5% , (1V seting ), Impedance  ≤ 10Ω,  2 Ω ± 10%,  ≥ 10Ω  Measure Rangeprimary parameterL(0.0001uH ~ 19999H), C(0.0001pF~199.99mF) , Z(0.0001Ω ~199.99MΩ )Secondary parameterQ, D(0.0000~ 10000), θ (-180.00° ~ +179.99° ), ESR(0.0001m Ω  ~ 19999K Ω )Base accuracy0.10%Measure speed  ( 1KHZ )Fast8 Meas. /SSlow2.5 Meas. /STriggerinternalinternal, external, manualDisplayL, C, Z, R5pcs digitalsQ, D, R, θ5pcs digitalsFrequency, level3pcs digitalsExternal  DC baseDC: 0~35VRevising functionopen, shortEquivalent circuit modelin series  , parallelAutomatic judgement pass or failMemory 10Groups setingCommon spec.Environmenttemperature  : 10  º C ~ 40  º C, humidity  : 10%~90%RHPower consumingMax. 55WPower90~125V or 190~250V, 48HZ~62HZWeight≈ 5.5Kg≈ 6.5KgMeas.( W× H× L  )270× 105× 350mm405× 130× 365mm Our Services

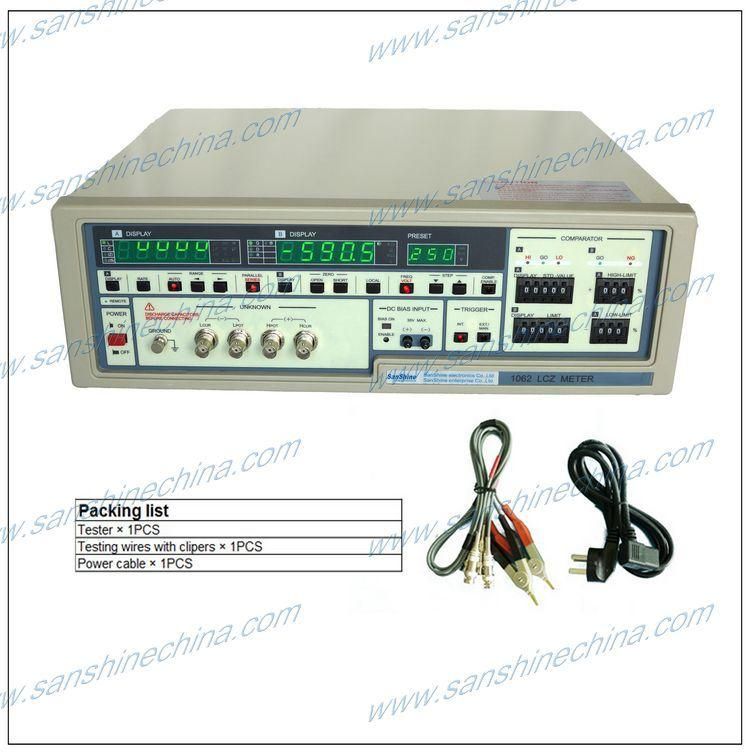

Packaging & Shipping

Our Customers

Lcz Lcr Meter Ss1062
