• Model NO.：STQM-1
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：No
• Display：Digital
• Control：No
• Weight：100kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stqm-1 Laboratory Cement Ball Mill
• Application：Used for Mixing and Grinding Purpose in All Kinds
• Drum Size：Dia 500X500mm
• Rotation：48rpm
• Load Capacity of Abrasive：100kg
• Feeding Capacity：5kg
• Weight of Abrasive (Steel Ball and Unequ：10kgs
• Power of Motor：1.5kw
• Voltage：220V
• Frequency：50Hz
• Transport Package：Wooden Case
• Specification：1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STQM-1 Accuracy Grade 1 Load Way Electronic Load Loading Method No Display Digital Control No Weight 100kgs Power Source AC220V Oil Cylinder Position No Product Name Stqm-1 Laboratory Cement Ball Mill Application Used for Mixing and Grinding Purpose in All Kinds Drum Size Dia 500X500mm Rotation 48rpm Load Capacity of Abrasive 100kg Feeding Capacity 5kg Weight of Abrasive (Steel Ball and Unequ 10kgs Power of Motor 1.5kw Voltage 220V Frequency 50Hz Transport Package Wooden Case Specification 1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

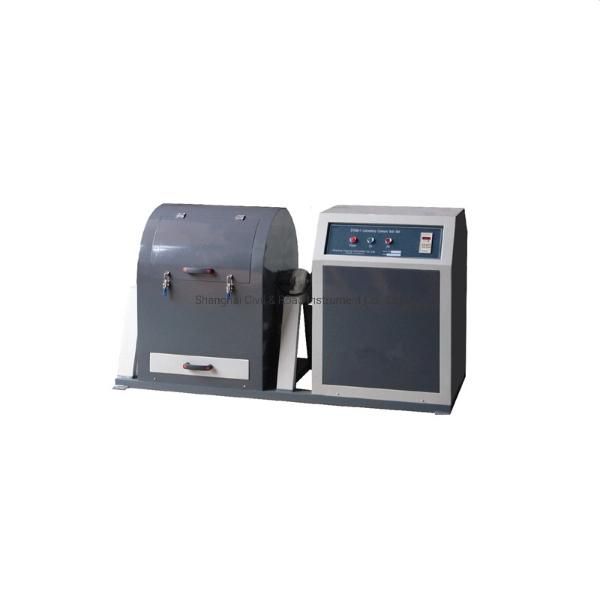

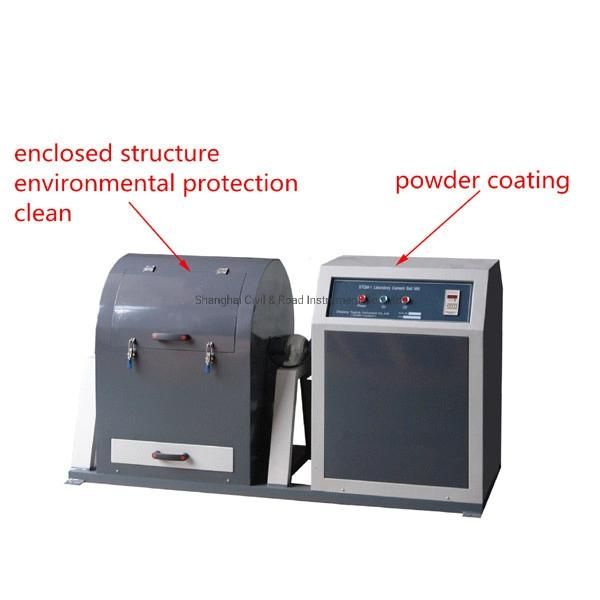

STQM-1 Laboratory Cement Ball Mill

Applications:
Laboratory Ball Mill is used for mixing and grinding purpose in all kinds ofresearch laboratories. 500x500 Soundproof Digital Cement Test Small Mill is 10mm thick double layer,small noise digital display type. Determination of cement clinker marking and chemical analysis of clinker by cement inspection room, a unified test mill, the machine can also be used to grind other materials. It has the advantages of compact structure, convenient operation, simple maintenance, reliable performance, good dust and sound insulation effect, and the use of timer to control automatic parking.

Specification:


Drum size	φ500×500mm
Rotation	48RPM
Load capacity of abrasive	100kg
Feeding capacity	5kg
Weight of abrasive (Steel ball and unequal steel)	10kgs
Grinding Body Loading Capacity	100 KG
Particle Size Of Into The Grinding Material	≤7 mm
Powder Time	~30 min
Power of motor	1.5kW
Voltage	220V
Frequency	50HZ
