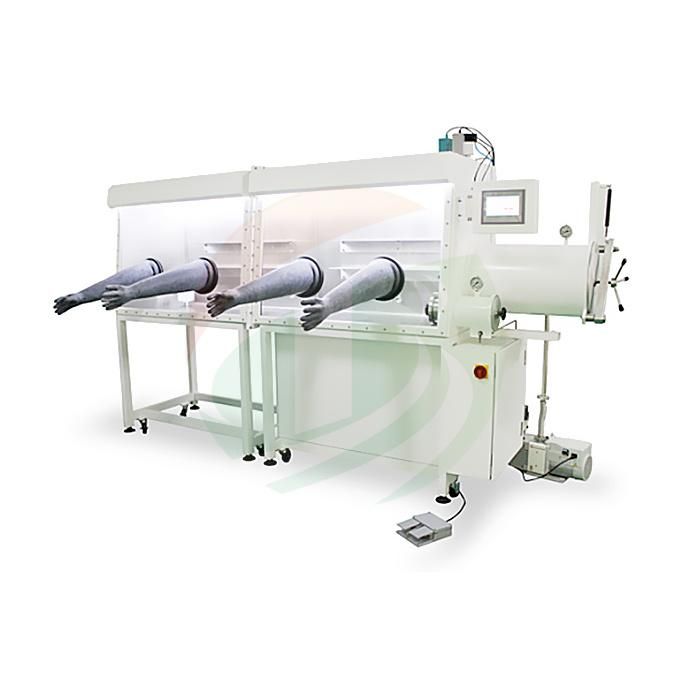

Two Work Station Side by Side Dual Workstation Lab Glove Box
XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD.- After-sales Service：1 Year
- Warranty：1 Year
- Transport Package：Wooden Box
- Trademark：TOB
- Origin：China
Base Info
- Model NO.：TOB-GB-2440-S
- Production Capacity：10000 Set,Month
Description
Item
Parameter
Glove Box
Dimensions: 2440(96")mm wide x 750)mm(29.5" deep x 900mm (35.4")high, Stand 900mm(35.4") high
To be operated Side by side, with two gloves on each side.
Material for Box:3mm thick. 304 stainless steel, acid resistant
Windows - Safety Glass
Glove Ports - POM (Polyoxymethylen Plastic) 220mm(8.7") diameter - Double O-ring sealed on each glove.
Gloves - Butyl - 8" cuff diameter - .015" Thick - 32" Length
Dust Filter - 0.3 µm - 1 gas inlet and 1 gas outlet filter
Shelves - Stainless - 2 layers - Mounted inside.
External Fluorescent Lights - 2 sets
One - Electric Feed-through - Seven- Blind Flanges KF 40
Main Antechamber
One - Large Antechamber - 304 Stainless Steel - 360mm(14.2")Diam. - 600mm(23.6") Long (R or L)
Sliding Tray on Stainless drawer slides
Spindle Lock Door with Vertical Operation
Touch Screen - Automatic via Solenoid
Mini Antechamber
One - Mini Antechamber - 304 Stainless Steel - 150mm(5.9") Diam. - 300mm(11.8") Long (R or L)
Screw Lock Door
Manual Operation via Hand Valve
Gas Purification
Removal of H2O and O2.
Gas Container - 304 Stainless Steel
Absorber Unit: Copper Catalyst: 4.5Kg - Molecular Sieve: 4.5Kg
Attainable Purity: H2O - Less than 1ppm; O2 Less than 1ppm
Capsulated Blower - 90 cubic meters/hour with frequency converter
Regeneration - PLC controls all processes including heating, filling mixed gas (working gas / 5-10%H2 mixture), etc.
System Control
PLC (Programmable Logic Controller).
Features include: Circulation Control, Purging Control, Regeneration Control, Pressure Control, as well as self-diagnosis, power failure re-start and password protection.
Siemens 7 inch color touch screen with operation interface, indication of status, box pressure, moisture and oxygen value and system records.
The pressure in the glove box can be controlled with either the foot pedals or the PLC. The pressure can be set between +/- 10mbar. If the pressure goes over +/- 12mbar the system with protect itself automatically.
* Various valves to be integrated into a valve-seat made of stainless steel,less pipe connectors to reduce leakage.
Vacuum Pump
Rotary Vane Pump with oil mist and gas ballast control. Capacity is 8 cubic meters/hour. Dual Stage portion with Ultimate vacuum at 3 x 10-2mbar
