• Model NO.：STCBR-2
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：Manual Control
• Weight：65kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Stcbr-2：Stcbr-2 in Situ Cbr Test Apparatus
• Bearing Capacity of Hydraulic Jack：100kn
• Measure Range of The Dynameter：60kn
• Diameter of Penetration Rod：Dia50X200mm
• Transport Package：Wooden Case
• Specification：0.18CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STCBR-2 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Manual Control Weight 65kgs Power Source AC220V Oil Cylinder Position No Stcbr-2 Stcbr-2 in Situ Cbr Test Apparatus Bearing Capacity of Hydraulic Jack 100kn Measure Range of The Dynameter 60kn Diameter of Penetration Rod Dia50X200mm Transport Package Wooden Case Specification 0.18CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

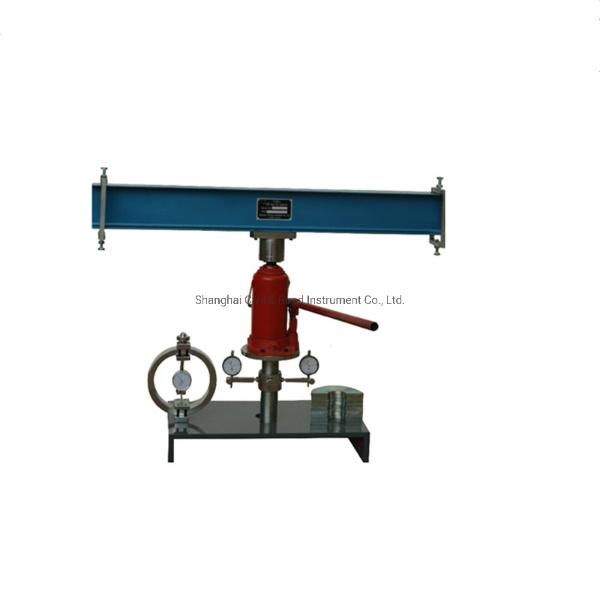

STCBR-2  In-site CBR Test Apparatus
Standards: JIJ059-95 Standard

Application :
is used to do the CBR field test of all kinds of foundation materials in highway.
The working principle of the instrument is the use of rear axle load of not less than 60KN truck, with Jack loading, through penetration rod measured quantity of penetration and dynamometer measured load weight, the soil CBR value calculation of field.

Specification:

Bearing capacity of hydraulic jack	100kN
Measure range of the dynameter	60kN
Analog penetration dial gauge	30mmx0.01mm
Diameter of penetration rod	Φ50×200mm
Bearing plate	1.25kg/pcs, four pcs
Penetration testing device	plateform and dial gauge
Apparatus size	1000x300x560mm
