• Model NO.：CY-40
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：5000pieces,Month

Basic Info.

Model NO. CY-40 Trademark CYKY Origin Zhengzhou, China Production Capacity 5000pieces/Month

Product Description

 CY-40 desktop diamond wire saw cutting machine for cutting steel/marble cutting
Description of the low speed diamond saw:
CY-40 is a 4" Manual Cut-off Saw and is the perfect tool for cutting valuable materials quickly, such as rough crystal, ceramic, metal rod and almost any material before lapping and polishing.
Specification of the low speed diamond saw:

	Voltage: 110V AC  50/60hz in order to use at 208-240V, you need a transformer 240V-110V, please click here to order separately.
Motor & Spindle	The 1/4 HP equivalent variable speed ball bearing direct drive motor allows the saw to run fast enough to use ultra-thin diamond blades. Speed varies from 400 to 3250 RPM.
Saw Table & Housing	The saw table is flat so it is easy to trim oversized slabs and removable so clean up is easy. Max. sample loading length: 6"  The sturdy table measures 6" X 10", easy to operate. The saw housing is made of unbreakable cross-linked polyethylene - no rusting, no messy oil, uses water only. Max. cutting depth: 1" (25.4 mm) Max. cutting width: 40mm (limited by the max. opening of the sample holder)
Cutting Blade	Comes with 5 pcs of impregnated diamond blade of 4" Dia x 0.014" (0.35 mm) thickness x 1/2" arbor, as well as a mini-vise which allows you to handle the sample smoothly. To cut soft material, such as stainless steel, Ni, Cu or plastic, please choose the 4" SiC blade, please click the picture below right-2 to order at extra cost. For longer cutting life, please use sintered diamond blade and Lube-150 ( please click the picture below right to order at extra cost.
Shipping Dimensions	16" x 13" x 11"
Shipping Weigh	16lbs

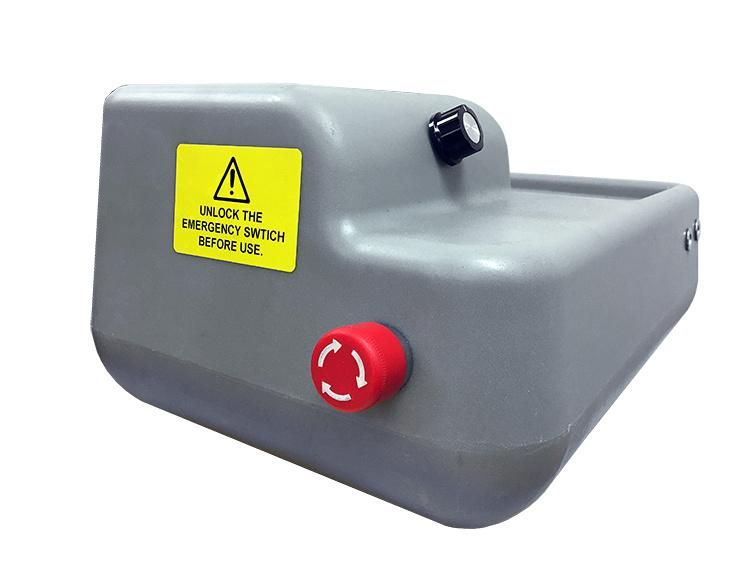

Compliance	To pass the CE and MET certification, we will add a fuse and an emergency switch at $250 extra cost
Warranty & Compliance	Two Years limited warranty With additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.
Application Notes	Please note that this manual cut-off saw is mainly for fast cutting materials. For more precise cutting, please select our precision low-speed diamond cutting saws such as SYJ-150 or SYJ-160

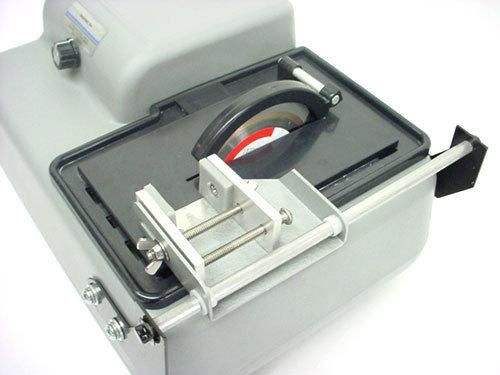

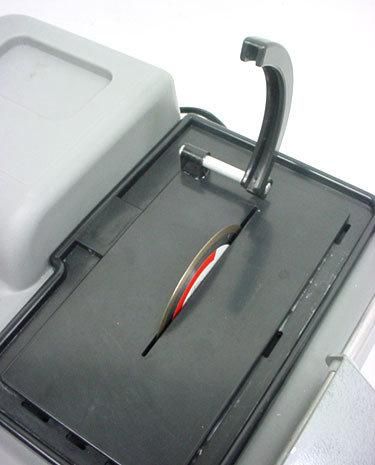

reference picture of the low speed diamond saw:
