• Model NO.：GD-6536D
• Temperature Range of Receiving Chamber：0~60 Celsius
• Temperature Control Precision of Receivi：1 Celsius
• Distillate Liquid Detection：0~100 Ml, Resolution 0.01ml
• Net Weight：85kg
• Dimension：500*530*660mm
• Transport Package：Wooden Case for Automatic Distillation Apparatus
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-6536D Temperature Range of Receiving Chamber 0~60 Celsius Temperature Control Precision of Receivi 1 Celsius Distillate Liquid Detection 0~100 Ml, Resolution 0.01ml Net Weight 85kg Dimension 500*530*660mm Transport Package Wooden Case for Automatic Distillation Apparatus Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

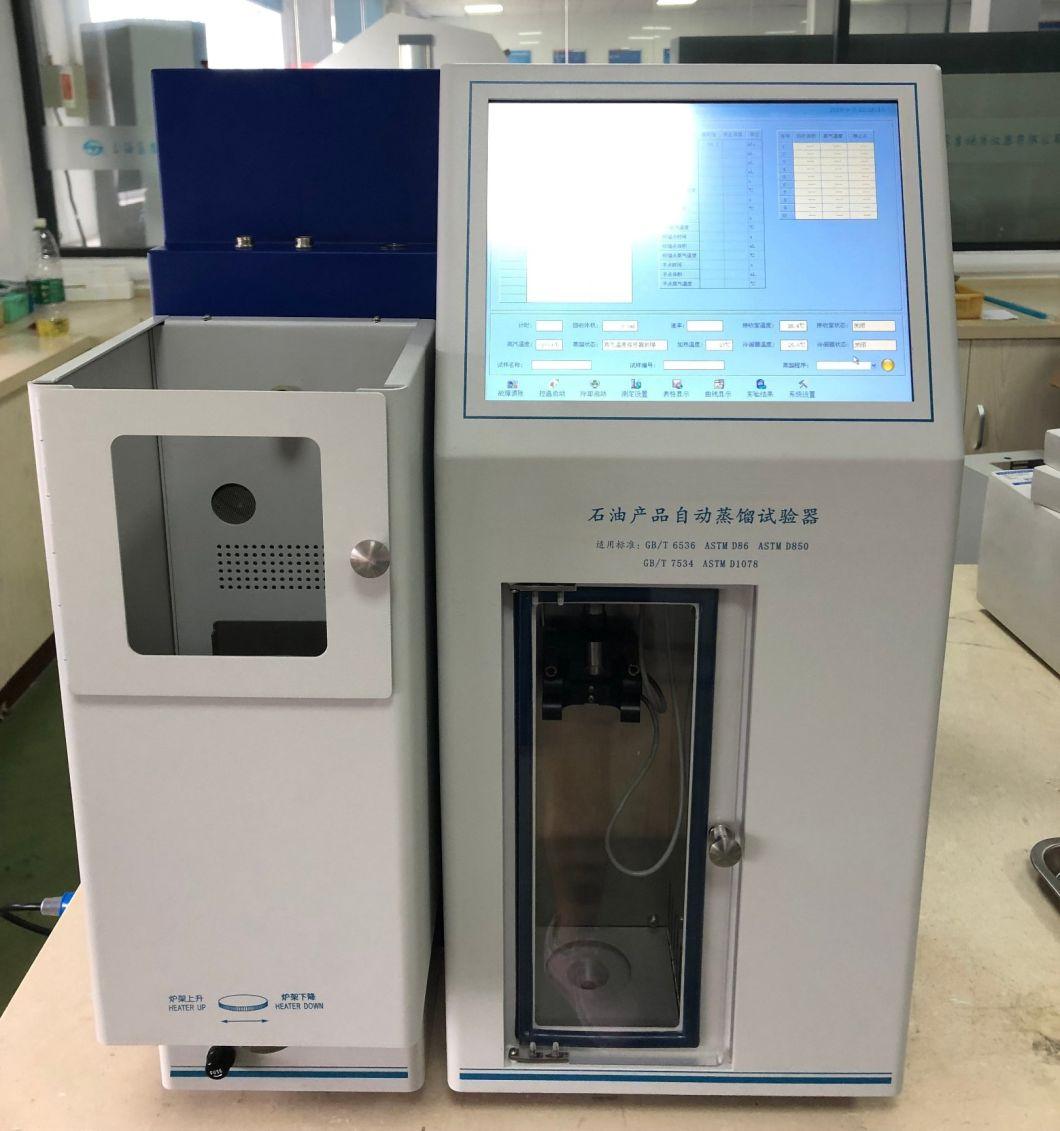

Automatic Distillation Apparatus for Petroleum Products

Automatic distillation apparatus is designed and made as per ASTM D86, ASTM D850, ASTM D1078.
It has built-in microcomputer; Advanced IPC technology; 12.1 inch light-touch LCD; Man-machine dialog; automatically print;

 1.Summary  Automatic Distillation Apparatus is designed and made as per standards ASTM D 86, ASTM D 850, ASTM D 1078. It is used to determine the distillation characteristics of motor gasoline, aviation gasoline, jet fuel, diesel oil, distillate fuel, naphtha, and some solvents which have special boiling points.
It is a new instrument which is advanced and easy-operated. High cost performance.

 2.Main technical features1. Intelligent SCM control. The heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control, temperature recording, printing are all completed automatically.

2. Automatic distillation apparatus displays the vapor temperature curve, heater temperature curve and distillation rate curve in real time. .

3. Imported compressor and temperature sensor. Automatic liquid level tracking system. The test result are reliable and in good repeatability.

4. The suitable standards and distillation procedures can be added as per customer's need and different oil samples.

5. Automatic distillation apparatus has an automatic barometric pressure detecting function. The barometric correction can be completed automatically. The test result will not be influenced by the  barometric pressure difference.

6. Automatic distillation apparatus equips an automatic fire-extinguishing device to make the test safe.

 3. Main technical specifications

1	Standard	ASTM D 86, ASTM D 850, ASTM D 1078
2	Test sample	motor gasoline, aviation gasoline, jet fuel, diesel oil, distillate fuel, naphtha, and some solvents which have special boiling points.
3	Temperature range of bath	(0~60)ºC
4	Temperature control precision of bath	±0.5ºC
5	Temperature range of receiving chamber	(0~60)ºC
6	Temperature control precision of receiving chamber	±1ºC
7	Distillation heater	1000W, 24V
8	Distillate liquid detection	(0~100)mL,resolution 0.01mL
9	Distillate liquid detection precision	≤0.1mL
10	Power supply	AC(220±10%) V, 50Hz
11	Dimension	500×530×660mm
12	Net weight	85kg



4.Related products:GD-6536:Single unit distillation apparatus
GD-6536A: Double units distillation apparatus
GD-6536B: Double units distillation apparatus (Low temperature)
GD-6536C: Single unit distillation apparatus(Low temperature)
GD-6536D: Automatic distillation apparatus
GD-0165A: Vacuum distillation apparatus
GD-0165B: Semi-automatic Vacuum distillation apparatus(Touch Screen)
