• Model NO.：GDJS-6A
• Weight：0-100Kg
• Power Source：AC220V
• Rated capacity：3kVA (customized, 5kVA for option)
• Input voltage：AC220V 50Hz
• Output voltage：0-30kV AC (customized)
• LV current：0-15A
• Leakage Current：0.1mA
• Timing Range：0-999S
• Environment Temperature：-20 centigrade to +50 centigrade
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：4016991090
• Production Capacity：1000 Pieces,Year

Basic Info.

Model NO. GDJS-6A Weight 0-100Kg Power Source AC220V Rated capacity 3kVA (customized, 5kVA for option) Input voltage AC220V 50Hz Output voltage 0-30kV AC (customized) LV current 0-15A Leakage Current 0.1mA Timing Range 0-999S Environment Temperature -20 centigrade to +50 centigrade Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 4016991090 Production Capacity 1000 Pieces/Year

Product Description

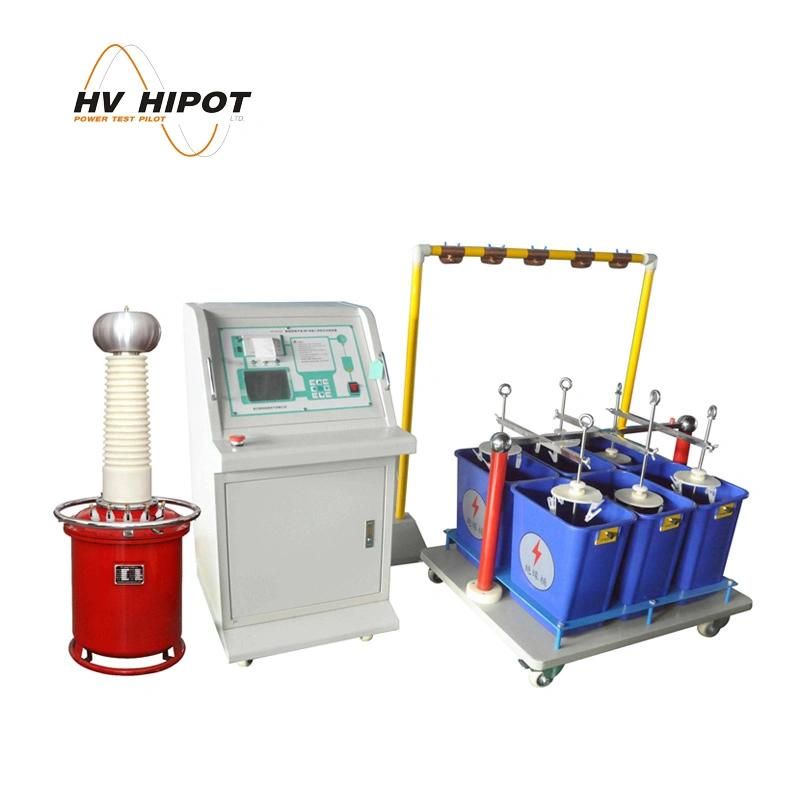

Insulation Gloves Boots Voltage Withstand Test Set GDJS-6A




GDJS-6A Automatic insulated gloves(boots) test set is used for batch test of insulated gloves(boots), which simplifies test procedure, improves test speed and reduces test strength. this guarantees operator's security and identifies parameters of leakage current, insulation aging and frequency voltage reliably. It can test 6pcs insulated gloves(boots) at the same time.

The device integrates high voltage power with control system. It has following characteristics: easy wiring and easy operation, reliable and reasonable layout, convenient moving, flexible dismounting, which has made it an ideal product for updated generation.

Features

• 320*240 LCD screen
• Thermal printer.
• 8 measurement ways of high voltage, low voltage current, 6-way leak current.
• Full keyboard operation mode, automatic working process. Automatic and manual operation for option.
• Real time show high voltage, low voltage current, 6-way leak current, time and withstand voltage result.
• Automatic data-saving.
• With over-voltage, over-current protection.
• Auto-timing after voltage is arrived at setting value and auto-returning to zero after timing.
• Auto error diagnosis.
• Functions of remote communication, alarm, door interlock, external divider calibration interface for optional.

Specifications


Rated capacity	5kVA (customized, 3kVA for option)
Input voltage	AC220V±10%,50Hz±1
Output voltage	0-50kV AC (customized)
Voltage accuracy	≤2.0% (F.S)
LV current	0-25A
Leak current	0-20.0mA
Resolution of Leak current	0.1mA
Current accuracy	≤1.5% (F.S)
Timing range	0-999s
Environment temperature	-20ºC to 50ºC
