• Model NO.：GW-002B
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-002b
• Clamp Ring Inside Diameter：25 mm
• Ball Diameter：6.25mm
• Test Speed：0.2 mm,S
• Maximum Load：80 Kg
• Maximum Deformation Value：18 mm
• Sample Diameter：44.5 mm
• Date Show：LCD Display
• Transport Package：Standard Export Safety Packing
• Specification：0~100KG
• Trademark：Great win
• Origin：China
• HS Code：9024800000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. GW-002B Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-002b Clamp Ring Inside Diameter 25 mm Ball Diameter 6.25mm Test Speed 0.2 mm/S Maximum Load 80 Kg Maximum Deformation Value 18 mm Sample Diameter 44.5 mm Date Show LCD Display Transport Package Standard Export Safety Packing Specification 0~100KG Trademark Great win Origin China HS Code 9024800000 Production Capacity 1000PCS/Month

Product Description

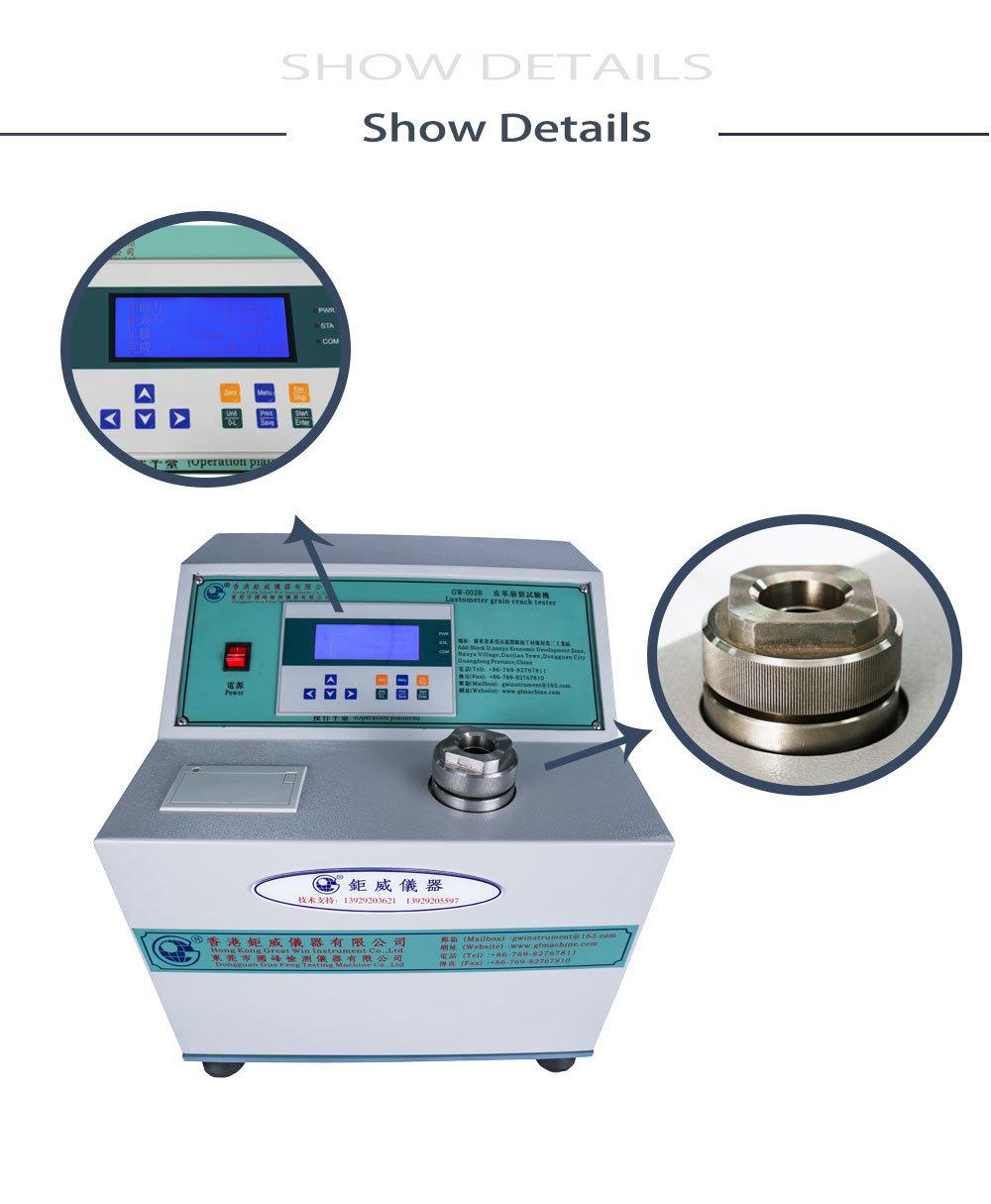

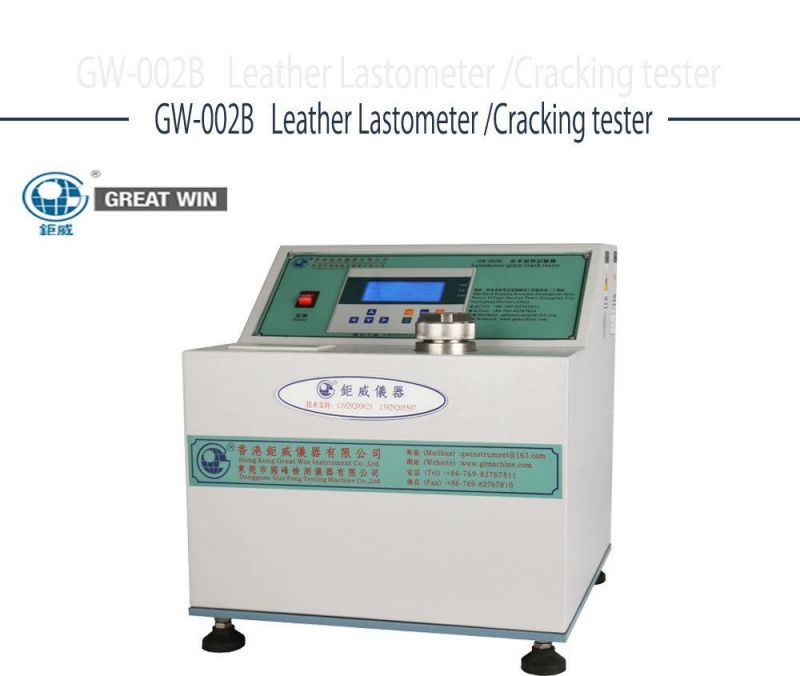

Leather Lastometer /leahter bursting testing machine(GW-002B )

•Brief introduction:
This machine is used to specially for Shoe upper Leathers' crack index and burst strength. Can printing the test result.

•Technical Specifications:

Model	GW-002B Leather Lastometer
Clamp ring inside diameter:	25mm
The diameter of ball:	6.25mm
Test speed:	0.20mm/second
The maximum load:	80kg
maximum deformation value:	18mm
sample diameter:	44.5mm
Data show:	LCD display
Air pressure:	4 bar
source:	120-240V,50/60Hz
power:	120W
weight:	28kg
size:	48×44×49cm

•Standard for:

SATRA TM24,BS 3144,ISO 3379,DIN 53325




What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
