• Model NO.：HZPT-1008
• Weight：0-100Kg
• Power Source：AC220V
• Name：Kinematic Viscometer
• Power Supply：AC(220±10%)V,50Hz
• Power：1200W
• Heat Power：1000W
• Cold Bath Volume：8L
• Temperature Control Accuracy：±0.1ºC
• Temperature Range：Room Temperature ~ 120ºC
• Cooling Time：≤120min
• Timing Accuracy：±0.1s
• Keyword：Kinematic Viscometer
• Transport Package：Box
• Specification：ISO,CE
• Trademark：HuaZheng
• Origin：Baoding, Hebei
• HS Code：9027809900
• Production Capacity：500,Month

Basic Info.

Model NO. HZPT-1008 Weight 0-100Kg Power Source AC220V Name Kinematic Viscometer Power Supply AC(220±10%)V,50Hz Power 1200W Heat Power 1000W Cold Bath Volume 8L Temperature Control Accuracy ±0.1ºC Temperature Range Room Temperature ~ 120ºC Cooling Time ≤120min Timing Accuracy ±0.1s Keyword Kinematic Viscometer Transport Package Box Specification ISO/CE Trademark HuaZheng Origin Baoding, Hebei HS Code 9027809900 Production Capacity 500/Month

Product Description

Lubricants Testing Equipment/Lubricating Oil Foam Tester/Foaming Tendencies Analyzer
I.Describition

This instrument is designed and made as per standards GB/T12579 Determination of foaming characteristics of oils and ASTM D 892 Standard Test Method for Foaming Characteristics of Oils. It is used to determine the foaming tendency and stability of oils.

main feature
Exclusive use of the United States imports XECOM data processing chip, the data for accurate processing
Advanced embedded microcontroller technology to achieve fully automated precision control process
SMT surface mount technology
PID temperature setting technology, high temperature control accuracy

The use of high-quality components to ensure the quality of stable and reliable

II.Technical indicators

Display: Chinese large-screen LCD menu display
Temperature control point:
Low temperature water bath: 24 ºC
High temperature water bath: 93.5 ºC
Temperature control accuracy: ± 0.3 ºC
Flow control: 16-160ml / min float flow meter, adjustable
Gas diffusion head: Maximum aperture: <80μm
Air Permeability: 3000 ~ 6000mL / min at 2.45kPa (250mmH2O) pressure.
Stopwatch timing: accuracy of 1 second
Thermometer: Immersion 0 ~ 50 ºC, 50 ~ 100 ºC, indexing 0.1 ºC.
Power: AC 220V ± 10% 50Hz ± 5%
Power: 4KW
Ambient temperature: 0 ºC ~ 40 ºC
Humidity: ≤85%

III.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

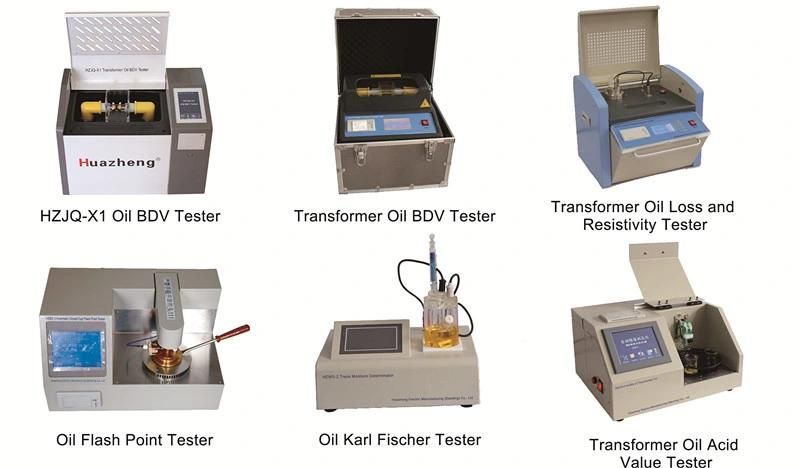

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.

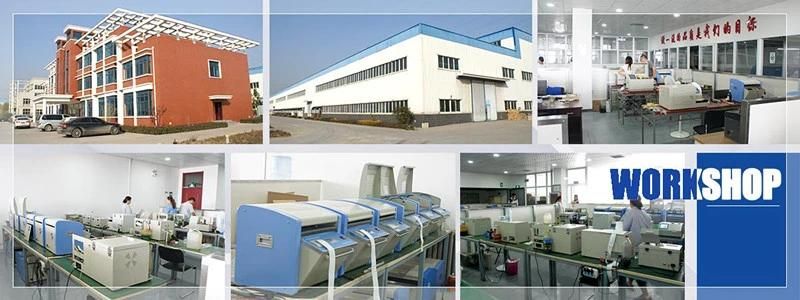

IV.Customer Visit
