• Model NO.：XB-OTS-209A
• Power Source：AC220V
• Pressure Range：250~5600kpa
• Speed of Compression：High Pressure 170+- 10ml,Min
• Sensing Method：Pressure Transmitter
• Transport Package：Strong Wooden Case
• Trademark：OTS
• Origin：China
• HS Code：9024800000
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-209A Power Source AC220V Pressure Range 250~5600kpa Speed of Compression High Pressure 170+- 10ml/Min Sensing Method Pressure Transmitter Transport Package Strong Wooden Case Trademark OTS Origin China HS Code 9024800000 Production Capacity 248 Sets Per Month

Product Description

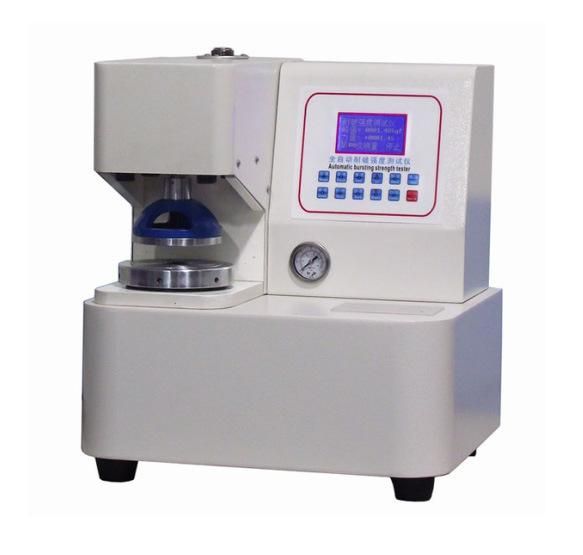

Digital High Pressure Automatic Paper Bursting Pressure Strength Test Machine

1. One year free after-sale service
2.  High quality with reasonable price

Model: XB-OTS-209B

Introductions:
   Bursting strength tester for packaging industry is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc,to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather.
   This type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.

Features of  Paperboard Bursting Strength Testing Machine
1. It is applicable to test bursting strength for paperboard.
2. Advanced micro computer controller and digital processor ensure result precise.
3. Printer facility and fully detailed test reports.
4. Results of the tests are stored for viewing or for printing out as required.
5. User-friendly menu interface.
6. Power protection ensure automatic record when power cut off.

Design standards:
 JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539

 Technical Parameters:

Model	XB-OTS-209B
Capacity (Optional)	High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (sitchable)	Kpa, psi, kg/cm^2
Accuracy	± 0.5%
Pressure Range	250~5600kpa
Speed of Compression	High Pressure 170 ±10ml/min
Specimen Clamping Force	>690kpa
Oil	100% silicon oil
Sensing method	Pressure Transmitter
Indicating Method	Digital
Display	LCD
Material of the Ring	Stainless Steel SUS304
Opening in Upper Clamp	31.5 ± 0.05 mm Diameter
Opening in Lower Clamp	31.5 ± 0.05 mm Diameter
Motor	Anti-vibration Motor 1/4 HP
Operation Method	Semi-automatic
Dimension (L*W*H)	430*530*520 mm
Weight	Approx. 64 kg
Power	1 , AC220± 10%, 50 Hz
Power Capacity	120W
Standard Configuration	Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
Optional Configuration	Printer
Standard	JIS-L1004, L1018, L1031, K6328, P8131, P8112 ASTM-D2210; TAPPIT403TS-63 ISO2759-2001; GB/T1539



Packing & Shipping

1.Strong standard wood case, inner plastic films wrapped for Bursting Strength Testing Machine 2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

About US



Our Main Products

 Enviromental reliability Testing Series:
 Temperature humidity cycling Test Chambers..
  Environmental /Climatic test chambers...
 High Low Temperature Chambers...

 More...

Physical Testing Equipment Series:
Floor testing machine...
Tensile Strength Testing Machines...
Shaker/Vibration Test Machine...

More...
Our Services
We are here to help you. Services available:

Replacement manuals

• Consumables and replacement parts
• On-site maintenance and repair
• Warranty support
• Over-the-phone service support and advice

If you have an OTS chamber  , we will do our best to help you in whatever way we can.

 Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.

• Service repair:  We prefer you contact us direct at the factory with any problems you may be experiencing.  We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.  Rarely can a local contractor get all that done for you as quickly as we can.  We also guarantee the work

RFQ

Q1 :  Can you customize the product?

   A:   Yes, we can customize any products according to requirements.

Q2 :  How to choose the most suitable products?

   A:   Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.

 Q3 :  Can you arrange installations and commissioning in our lab?

   A:   Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate

     Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
      Thirdly, some of customized chambers we should to install and teach your team to operate .

Please do not hesitate to contact us!
