• Model NO.：Yg020c

Basic Info.

Model NO. Yg020c

Product Description

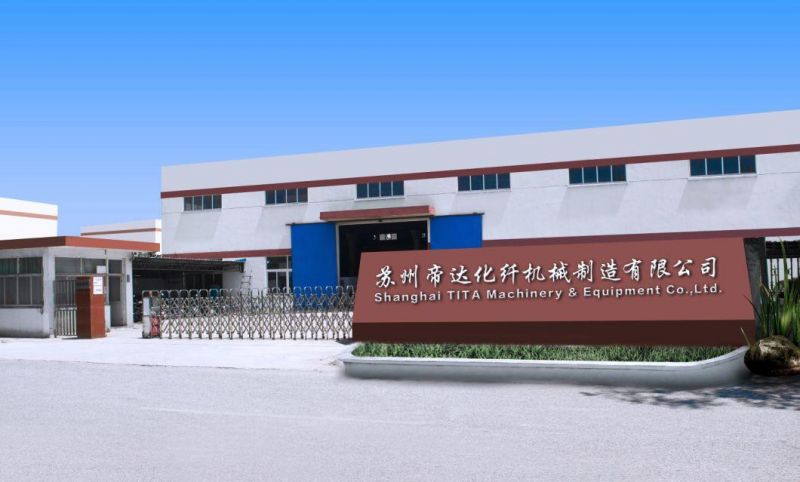

Company info:


TITA is a professional chemical fiber engineering company focusing on scientific research, technology innovation, chemical fiber yarn machinery manufacturing and contracting, we are specialized in improving the production processes of civil and industrial filaments of polyester, nylon, polypropylene, etc, civil staple, bi-component composite micro yarns in shapes of fragment, sea-island, sheath-core and side-by-side, and spun non-woven, as well as in developing new products and software, equipment design and manufacturing building planning and turn-key projects, etc.

We are committed to providing customers with our best quality machinery and services, and constantly to innovating and improving them to meet the increasing requirements and trends in the future, also we seek worldwide cooperation in hope making more outstanding success in the filed of chemical fiber machinery.

Major business:

1) Engineering design and turn-key project for POY and FDY by PET, PA6, PP, etc.

2) Spinning machines for industrial yarn, bi-component composite yarn and melt spandex yarn

3) Mother yarn splitting, Monofilament machines

4) BCF machine

5) Compact pilot spinning machine

6) Conversion for existing lines, modification for winders and spare parts supply, etc.

Our services:

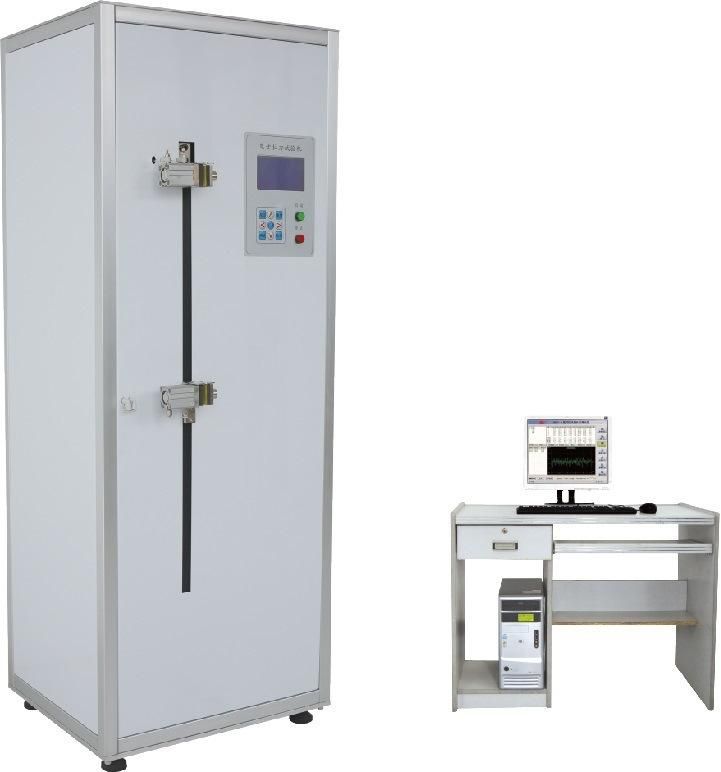

YG020C Electronic Strength Tester

Application:

To test the breaking strength and the breaking elongation for yarns, filament, tread, twisted filament, ribbon and wire.



Technical index:

1. Testing range: 5000cN, 10000cN, 50000cN

2. Accuracy: ±0.5%

3. Resolution: 0.5cN, 1.0cN, 1.0cN

4. Gauge length: 50-500mm (Set at random)

5. Max elongation: 650mm

6. Drawing speed: 1-20000mm/min (Digital preset)

7. External Dimensions: 550×350×1080mm



Standards:

ISO 2062,GB/T 3916, etc.
