• Model NO.：YOT-150
• Temp. Humi Resolution：0.01 Degree Celsius; 0.1%Rh
• Ozone Control Accuracy：+,- 10%
• Material：Stainless Steel
• Description：Ozone Resistance Test Chamber
• Circulation：Sirocco Fan
• Power Supply：AC 220V; AC 380V; Adjustable
• Transport Package：Strong Plywood Case
• Specification：1 set
• Trademark：Yuanyao
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：100 Sets,Mont

RT~80ºCTemperature fluctuation±0.5ºCTemperature uniformity±1.5ºC; Empty load, 30 mins after stanlizationResolution0.01ºCOzone concentration0~1000PPHM, adjustable (Optional: 0~500ppm non-standardozone control precision±10%Ozone production modeOzonatorSample frameStatic and Dynamic fixturesSample frame speed360° rotation (1 circle/minuteMaterialSUS#304 Stainless steel for inner chamber, cold rolled sheet + powder coating for external chamberInsulationPUCirculation systemCooling fanHeating systemSUS# stainless steel high speed heaterControlling systemDigital electrinic indicator + SSR+ PIDRefrigeration systemcompressor + Fin type evaporator + air/water cooling systemOzone concentration analyzerImported ozone concentration analyzerOzone generatorSilent discharge ozone generatorOther components1. Muti-layer vacuum glass obvervation window2. Controlling status indicator lamp 3. Chamber lightSafety protection device1. Over-heat protection 2. phase sequence protection 3. overload protectionPower supplyAC 1ψ220V; 3ψ380V 60/50HzCustomization serviceNon-standard or special requirements are all welcome

Company Introduce







Exhibition

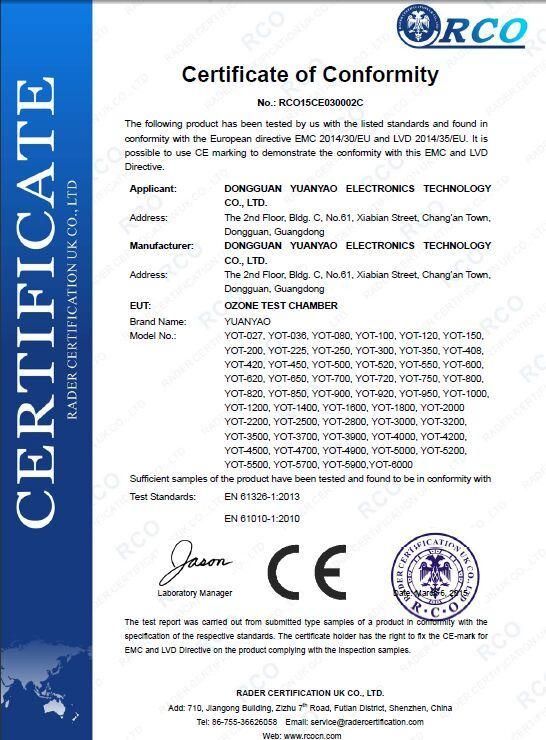

Certification

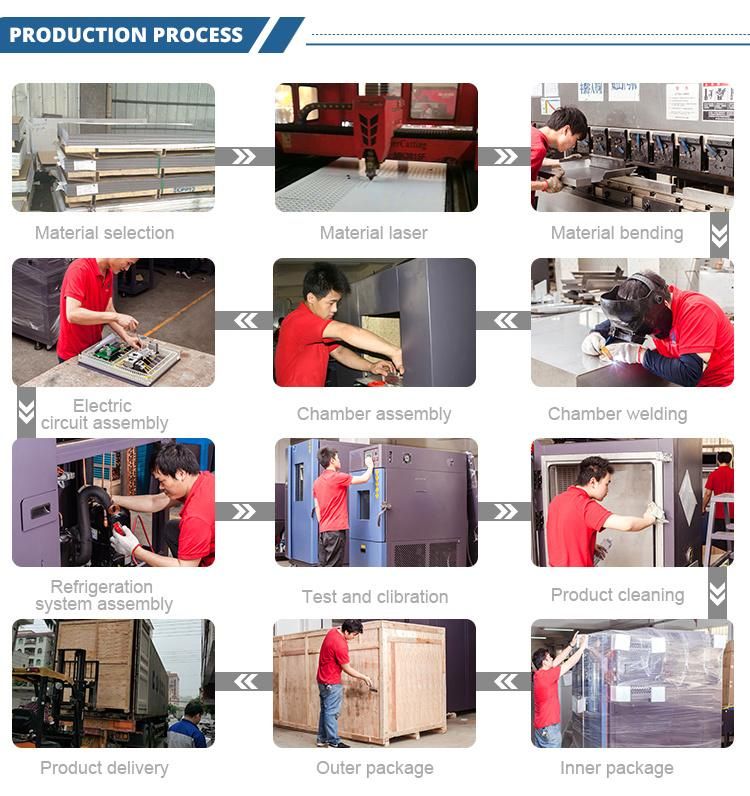

Production Process


Except Ozone aging test chamber, Guangdong Yuaoyao Test Equipment Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.


If you are interested in our products, welcome to enquire and purchase!
