• Model NO.：AV-160B
• Power Supply：4X1.5vaaa (Um-4) Battery
• Transport Package：Portable Plastic Case
• Specification：140x70x30mm
• Trademark：AM
• Origin：China
• HS Code：9031809090
• Production Capacity：999PCS,Month

Transducer

Piezoelectric accelerometer

Accuracy±5%+2 digitsMeasurement RangeDisplacement :  0.001-4.000 mm  equivalent peak-peak / 0.04-160.0 milVelocity :              0.1-400.0 mm/s  true RMS / 0.004-16.00 inch/sAcceleration :      0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40gFrequency RangeDisplacement : 10Hz. ~ 1kHz.Velocity :10Hz. ~1kHz.

Acceleration: 10Hz. ~ 10kHz.

Operating ConditionsTemperature : 0-50 ºCHumidity : below 95% RHAnalogue OutputAC output 0~2.0V peak full scale (load resistance: above 10k)Power Supply4x1.5vAAA (UM-4) BatterySize140x70x30mmWeight130g (Not including Batteries)

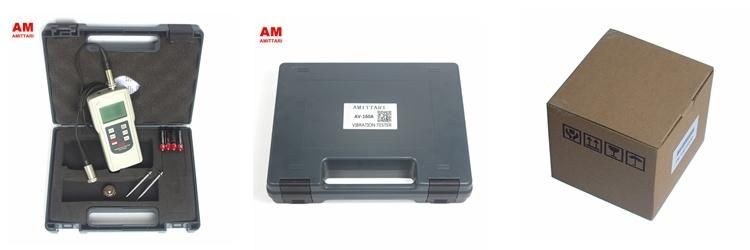

Product Accessories









Standard Accessories

Main Unit



Magnetic suction seat

Probe (cone) / Probe (spherical) Portable box Brochures

Piezoelectric sensor

Carrying CaseOperation Manual



Optional Accessories



Headset

USB data output

RS-232 data outputBluetooth™ data output



Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output



Bluetooth Accessories

Amittari  instruments  generally  can  be  supplied  with Bluetooth™  data  output function ( except  few  instruments ) . As  Bluetooth™  data  output  is  included  in optional accessories, not  standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly  contact  with   the customer-service worker  if you need Bluetooth™  data  output.
