DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality

DongGuan HongTuo Instruments Co., Ltd.
  • Warranty：1 year
  • Weight：30kg
  • Usage：Taber Abrasion Tester
  • Counter：LED 0~999,9999
  • Delivery Time：5-7 days
  • Testing Before Delivery：Yes

Base Info

  • Model NO.：DH-TA-01
  • After-sale Customer Service：Yes
  • Transport Package：Standard Exporting Wooden Package
  • Trademark：DahoMeter
  • Origin：Dongguan, China
  • HS Code：9027809900
  • Production Capacity：300 Sets,Month

Description

Basic Info.

Model NO. DH-TA-01 After-sale Customer Service Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China HS Code 9027809900 Production Capacity 300 Sets/Month

Product Description

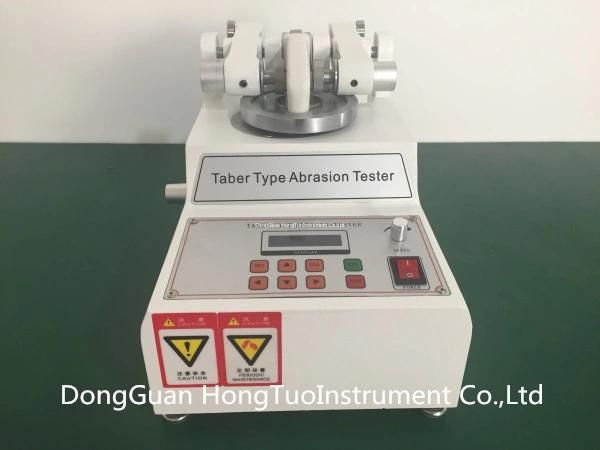

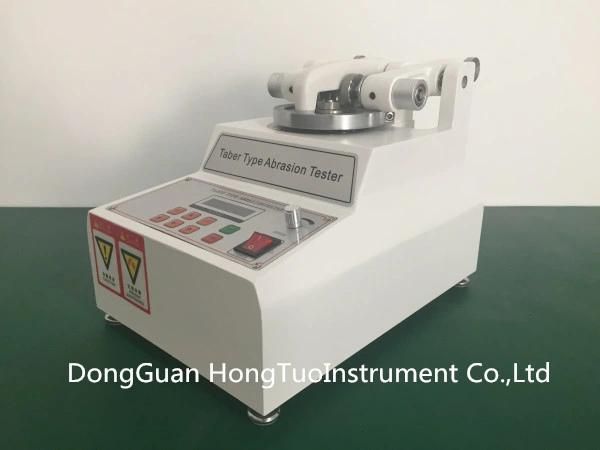

DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality



Application

The tester is used for cloth, paper, paints, plywood, leather, tile, glass, rubber, etc .The testing method is executed to make specimen abraded by a pair of grinding wheels under the specified load .The weight of abrasion loss is the difference of weight for specimens before and after testing.



Standard

DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 5470, ASTM D 1175, ASTM D1044.



Specification

1.Testing sheet:inner diameter(D)3mm

2. Abrasion wheel:?2"(Max.45mm)(W)1/2"

3. Centre interval for abrasion wheel :63.5mm

4. Interval for abrasion wheel and testing sheet:37~38mm

5. Rotating speed:60-72r/min(can be adjustable)

6. Load:250,500,1000g

7. Counter:LED 0~999,9999

8. Distance from testing sheet to suction inlet:3mm

9. Dimension:45 x 35 x 42cm

10. Weight:30kg

11. Power supply:AC 220V,10A

12. One pair of imported grinding wheel H-18;One set of cleaner

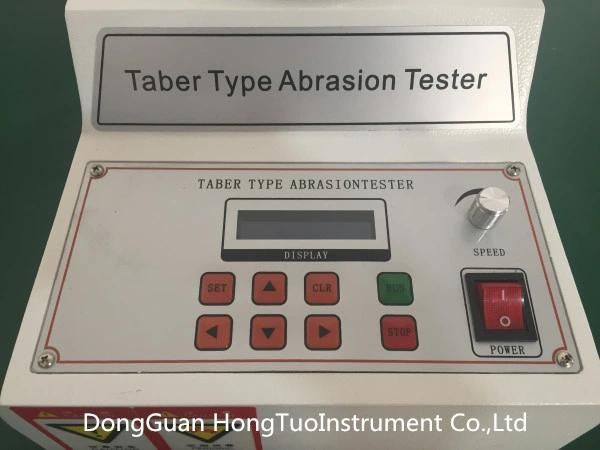

DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality
DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High QualityDH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High QualityDH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality



Packaging & Shipping

DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality


Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.

DH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High QualityDH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High QualityDH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High QualityDH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High QualityDH-TA-01 LED Display Used Taber Abrasion Resistance Tester With High Quality
