• Model NO.：HD-A523
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Load Capacity：600kg
• Impact Surface Dimension(L*H)mm：1600*2200mm
• Design Standard：Ista-1e
• Warranty：One Year
• Plane Inclined to The Vertical Angle：10°
• Velocity Range (M/S)：1.1~2.3m,S
• Power Supply：Power Supply
• Control System：PLC Type
• Impact Surface Material：Rubber Wood with Two-Rail Steel Track
• Delivery Time：20 Days After Receive The Deposit
• Transport Package：Strong Wooden Case
• Specification：ISTA-1E
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000sets,Year

ItemDescriptionLoad capacity100kg-600kg (can be customized)Impact surface dimension1600*2200mm,2100*2400mm (can be customized)Rolling carriage table dimension1220*1220mm (can be customized)Control systemTouch screen controllerMax. slide length2200mm (can be customized)Plane inclined to the vertical angle0°, 15°(can be customized)Velocity range1.1~2.3m/sImpact surface materialRubber wood with two-rail steel trackWorking conditionTemperature 0~40°, humidity ≤80%  (no condensation)Floor area7220*1800mmSafety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat Feature:
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
.
Explanation:
1. Power: The battery main switch
2. Stop: Stop test
3. Start: Press this button to start the test (it will be automatic stop when get the test times)
4.  up & down: Press UP or DOWN to adjust the rolling carriage up and down, the max. angle of rolling carriage with base is 13°
5. Counter: Setting the test times
6. Speed display: To display the velocity during test (m/s), and will automatic reset for another test
7. Time display: To display time during test(s)
8. Speeder: set the different frequency to change the impact velocity.


Quality Guarantee of ISTA Carton Box Incline Impact Force Test Instrument:

A)  Quality assurance items
The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)
1.      During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
2.      If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;
3.      If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
4.      Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;

B)  The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
please keep the guarantee letter, if you lost it, please connect with us in a month.
If the guarantee letter has been altered or it has no our stamp, it is useless.

C)  The following conditions need to be paid reasonably even in the assurance period:
Natural reasons
Operating mistakes
Voltage is not fit for our operation instruction
Repack it without our guides
Damaged for borrowing to others
Damaged for authorized machine modification
Damaged for authorized calibration
Authorized transshipment mistake
Serve for long distance area

D)  Attentions
Any service outside Guangdong, China , transport and travel fees shall be paid by customer.
The apparatus try not to be used in the following situations:
a. Vibration, rocking the occasion.
b. Direct sunlight.
c. Hot, dusty, damp places.
d. To ensure safe, AC supply of the machine should be well grounded.
e. Do not use strong solvents (such as: benzene, nitro oil) washing machine.
f. Do not inject water and debris into the machine; prevent damage to electrical components and electrical shock.
g. Instrument displays the disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.

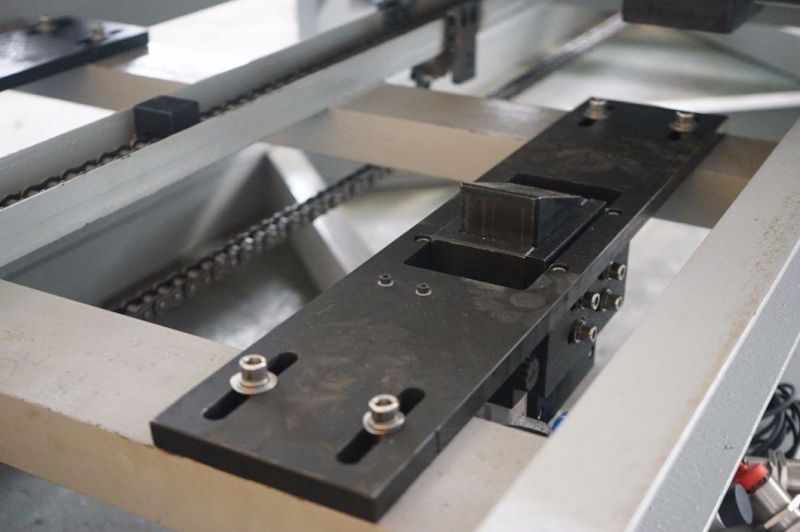

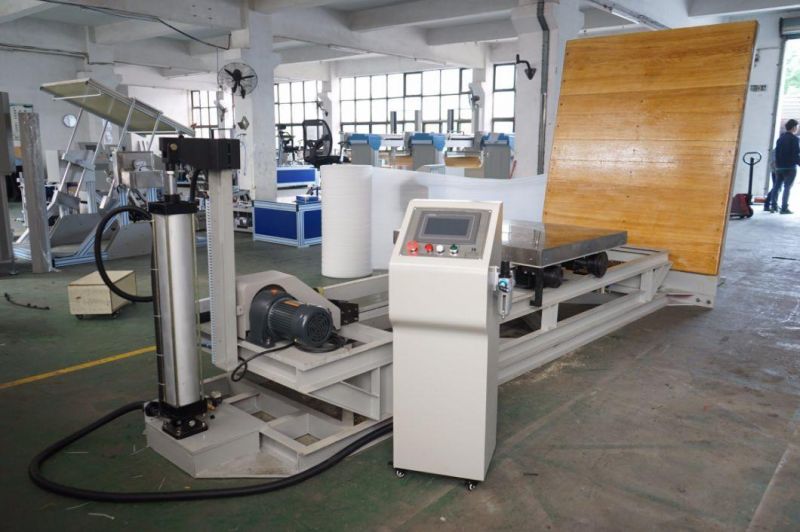

Product images:

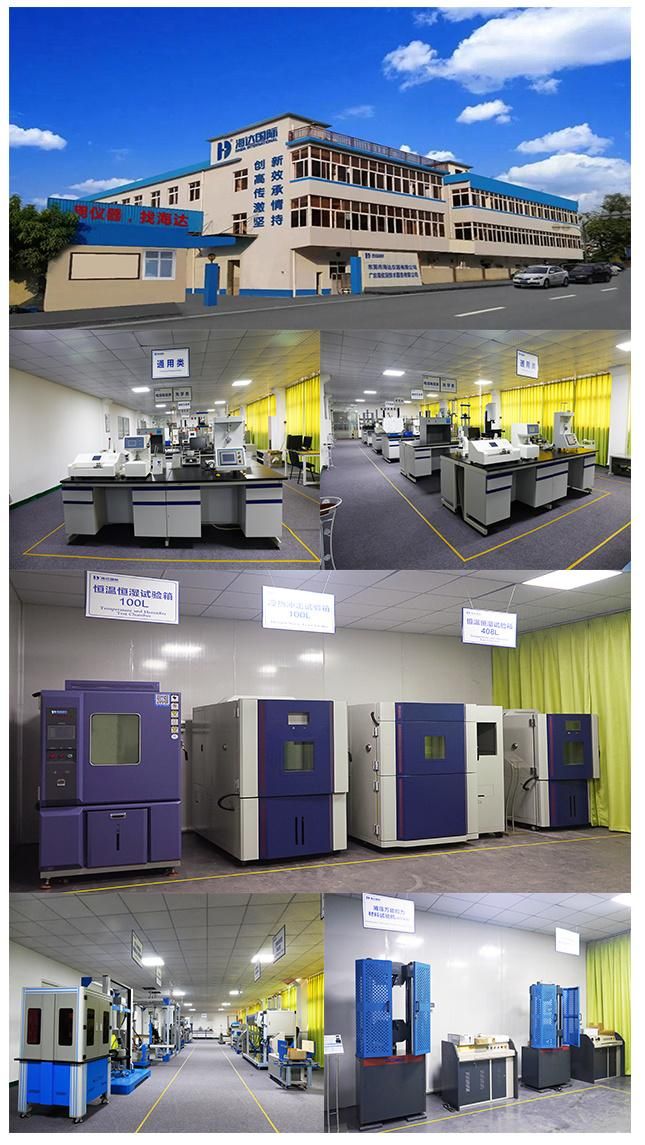

The Introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
