• Model NO.：FC-13,19
• HS Code：90248000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. FC-13/19 HS Code 90248000 Production Capacity 500 Sets/Month

Product Description

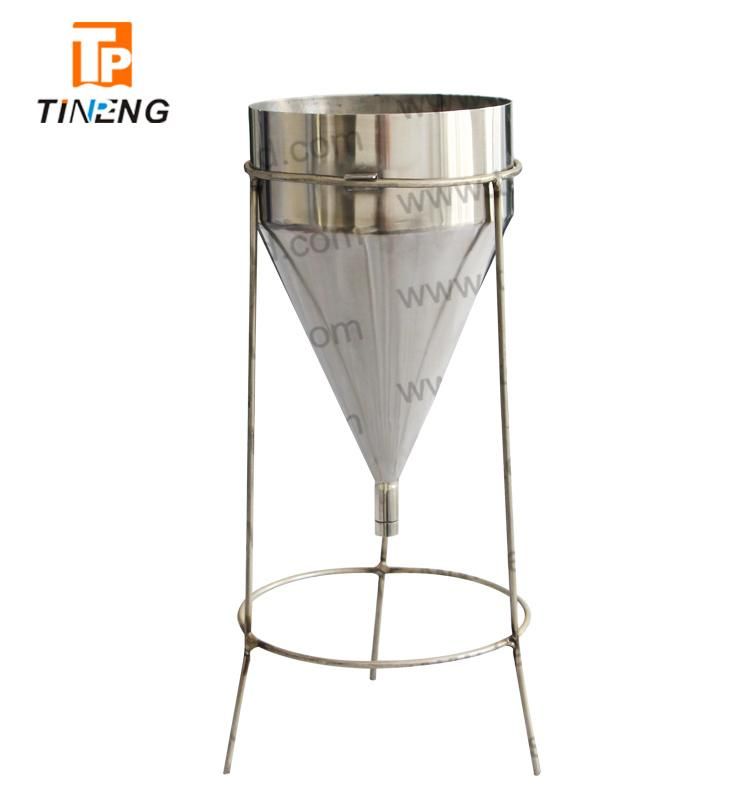

Concrete Grout Flow Cone Set

Grout flow Cone Set for measuring the flow of grout for preplaced, aggregate concrete. Intended for neat grout and grouts containing fine aggregate capable of passing a No. 8 sieve and grouts which have an eflux time of less than 35 seconds.

FC-13 Grout Flow Cone, 1/2" (13mm)
Steel flow cone from above set, has 1/2" (13mm) replaceable orifice. Can also accommodate 3/4" (19mm) orifice, which can be purchased below. Includes adjustable point gauge assembly. Overall dimensions: 8" dia. x 12"H (203 x 305mm).

FC-19 Grout Flow Cone, 3/4" (19mm)
Steel flow cone from above set, has 3/4" (19mm) replaceable orifice. Can also accommodate 1/2" (13mm) orifice, which can be purchased below. Includes adjustable point gauge assembly. Overall dimensions: 8" dia. x 12"H (203 x 305mm).

Flow Cone Stand
Sturdy well-constructed steel stand to support flow cones so the top is level and the cone free from vibration. Overall dimensions: 21"W x 9-1/2"D x 23"H.
